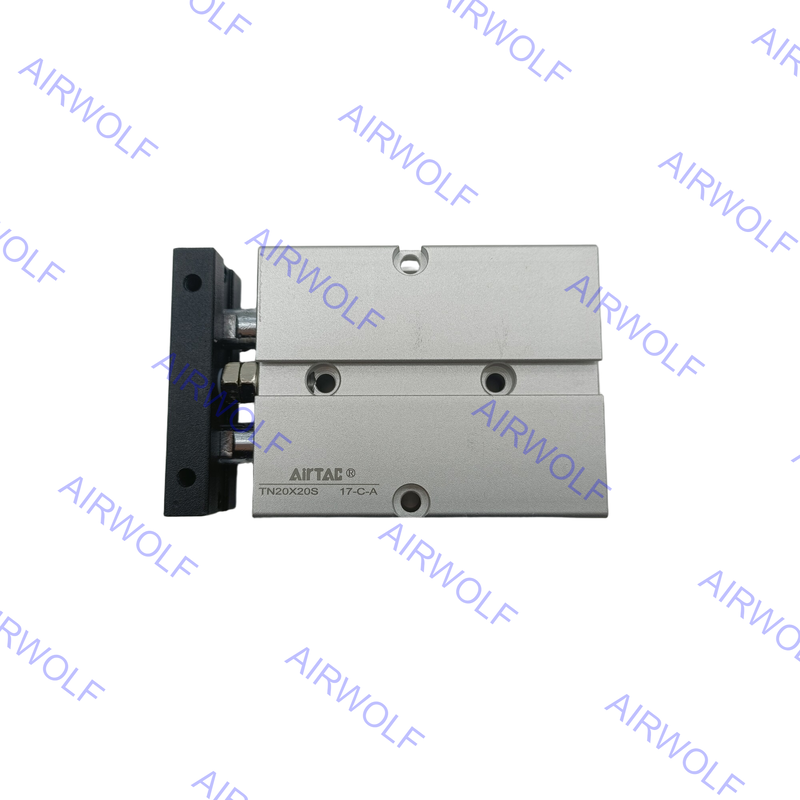

TN16X90S TN16X100S TN16X125S TN Series AirTAC Double Acting Twin-rod Cylinder

TN16X90S TN16X100S TN16X125S TN Series AirTAC Double Acting Twin-rod Cylinder

Product Details:
Place of Origin: Taiwan, China
Brand Name: AirTAC, AIRWOLF or OEM
Certification: CE, ISO9001
Model Number: TN16X90S, TN16X100S, TN16X125S
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: 6-39USD
Packaging Details: Boxes, Cartons, Pallets, Plastic bags
Delivery Time: 1-7 work days
Payment Terms: T/T,Western Union,Paypal
Supply Ability: 1000 pcs per week
Contact Now
Detailed Product Description
Item Code: TN16X90S, TN16X100S, TN16X125S Body Material: Aluminum
Seal Material: NBR Working Pressure: 0.15~1.0MPa(22~145psi)
Operating Temperature: -20~70℃ Working Medium: Air(to Be Filtered By 40μm Filter Element)
Bore Size: 16mm Function: Double Acting
Highlight:

TN Series double acting air cylinder

,

Twin-rod pneumatic cylinder

,

AirTAC twin-rod cylinder

TN16X90S TN16X100S TN16X125S TN Series AirTAC Double Acting Twin-rod Cylinder
Because it delivers guided linear motion and actuation in one package, the TN Series is the go-to choice wherever you need short-to-mid stroke pushing, clamping, or pick-and-place with tight parallelism tolerance—but don't want the cost, footprint, and alignment headaches of a separate guide rail. Typical deployments include SMT & PCB handling, electronic component insertion/extraction fixtures, light-duty press-fit stations, packaging-machine lidders and labelers, and inspection/alignment stages where non-rotation​ is non-negotiable. Its high side-load tolerance​ (thanks to the dual-rod bushing span) lets it absorb modest eccentric loading that would cause a single-rod cylinder to bind or leak prematurely. For sizing, engineers should apply a safety factor of 1.5–2× on the smaller pull-side force, verify side-load limits against moment arms, and confirm the air supply is properly filtered and, in humid or dusty cells, protected from condensation and ingress—simple precautions that let the TN deliver long, quiet, maintenance-light service life on the line.
Order Codes:
Item Code Piston (mm) Stroke (mm) Type
TN16×90S 16 90 Double acting
TN16×100S 16 100 Double acting
TN16×125S 16 125 Double acting
[Note1] Retract position.
[Note2] PT thread is available.
Datasheet:
Bore size(mm) 10 16 20 25 32
Acting type Double acting
Fluid Air(to be filtered by 40μm filter element)
Operating pressure 0.2~1.0MPa(29~145psi) 0.15~1.0MPa(22~145psi)
Proof pressure 1.5MPa(215psi)
Temperature °C -20~70
Speed range mm/s 30~500
Adjustable stroke mm -5~0
Stroke tolerance ≤100+1,00>100+1,50
Cushion type Bumper
Non-rotating tolerance [Note1] ±0.4° ±0.3°
Port size [Note2] M5×0.8 1/8"

Dimensions:
TN16X90S TN16X100S TN16X125S TN Series AirTAC Double Acting Twin-rod Cylinder
