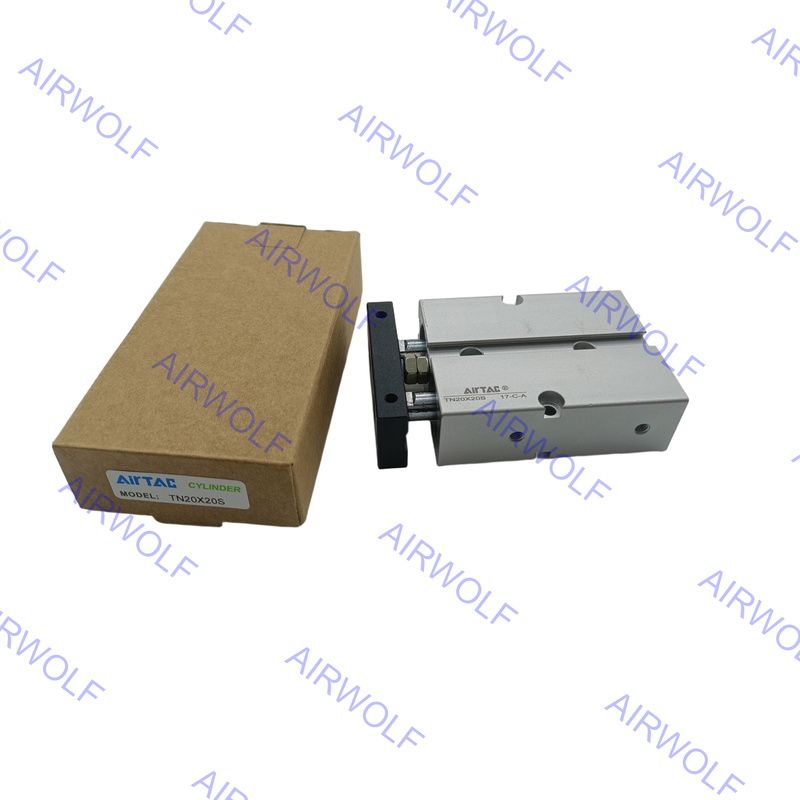

TN16X10S TN16X20S TN16X30S TN16X40S TN Series AirTAC Double Acting Twin-rod Cylinder

TN16X10S TN16X20S TN16X30S TN16X40S TN Series AirTAC Double Acting Twin-rod Cylinder

Product Details:
Place of Origin: Taiwan, China
Brand Name: AirTAC, AIRWOLF or OEM
Certification: CE, ISO9001
Model Number: TN16X10S, TN16X20S, TN16X30S, TN16X40S
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: 6-39USD
Packaging Details: Boxes, Cartons, Pallets, Plastic bags
Delivery Time: 1-7 work days
Payment Terms: T/T,Western Union,Paypal
Supply Ability: 1000 pcs per week
Contact Now
Detailed Product Description
Item Code: TN16X10S, TN16X20S, TN16X30S, TN16X40S Body Material: Aluminum
Seal Material: NBR Working Pressure: 0.15~1.0MPa(22~145psi)
Operating Temperature: -20~70℃ Working Medium: Air(to Be Filtered By 40μm Filter Element)
Bore Size: 16mm Function: Double Acting
Highlight:

TN Series double acting air cylinder

,

Twin-rod pneumatic cylinder TN16X

,

AirTAC twin-rod cylinder TN16X

TN16X10S TN16X20S TN16X30S TN16X40S TN Series AirTAC Double Acting Twin-rod Cylinder
The AirTAC TN Series is a double-acting, twin-rod (double-shaft) pneumatic cylinder purpose-built to solve the single-rod cylinder's inherent weakness: rotational instability under off-center or side loads. Rather than relying on external linear guides, the TN integrates two parallel, precision-ground piston rods—typically S45C or SUS304 stainless steel, hard-chrome plated and mirror-finished—within a single extruded-aluminum alloy body. This twin-rod architecture creates a geometric couple-force effect​ that intrinsically resists torsional moments around the axis of motion, delivering a non-rotating accuracy controlled to approximately ±0.1° ~ ±0.4°​ depending on bore size (TN10 through TN32). The cylinder operates on clean, filtered compressed air (≤40 μm filtration) within a 0.15–1.0 MPa​ pressure range and a –20 °C to +70 °C​ ambient envelope, using a double-acting piston design where air is alternately introduced through dual port pairs​ (one on each side of the body) for push and pull strokes.
Order Codes:
Item Code Piston (mm) Stroke (mm) Type
TN16×10S 16 10 Double acting
TN16×20S 16 20 Double acting
TN16×30S 16 30 Double acting
TN16×40S 16 40 Double acting
[Note1] Retract position.
[Note2] PT thread is available.
Datasheet:
Bore size(mm) 10 16 20 25 32
Acting type Double acting
Fluid Air(to be filtered by 40μm filter element)
Operating pressure 0.2~1.0MPa(29~145psi) 0.15~1.0MPa(22~145psi)
Proof pressure 1.5MPa(215psi)
Temperature °C -20~70
Speed range mm/s 30~500
Adjustable stroke mm -5~0
Stroke tolerance ≤100+1,00>100+1,50
Cushion type Bumper
Non-rotating tolerance [Note1] ±0.4° ±0.3°
Port size [Note2] M5×0.8 1/8"

Dimensions:
TN16X10S TN16X20S TN16X30S TN16X40S TN Series AirTAC Double Acting Twin-rod Cylinder
