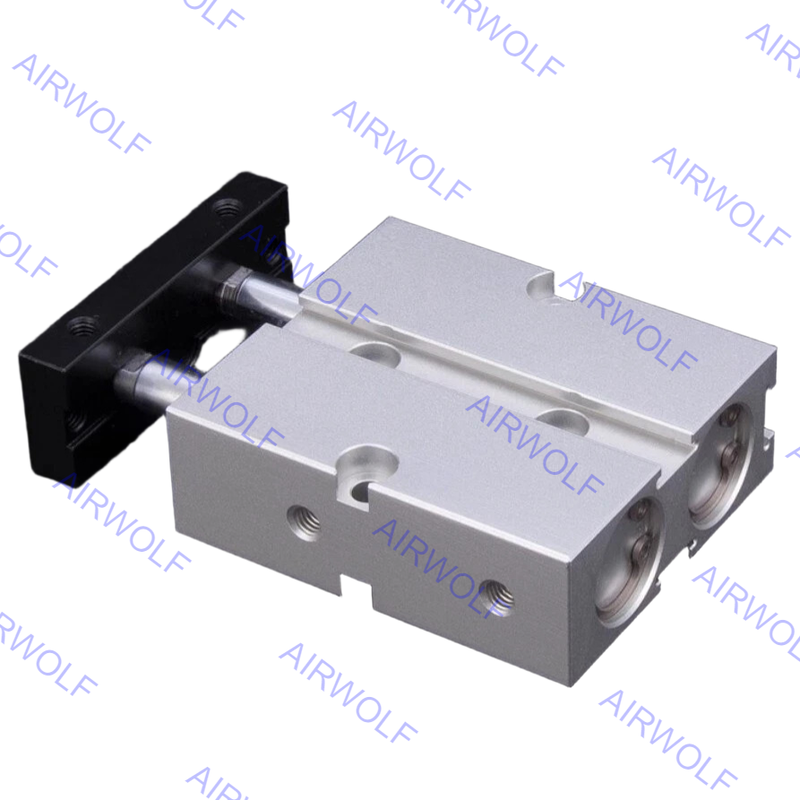

TN10X50S TN10X60S TN10X70S TN10X80S TN Series AirTAC Double Acting Twin-rod Cylinder

TN10X50S TN10X60S TN10X70S TN10X80S TN Series AirTAC Double Acting Twin-rod Cylinder

Product Details:
Place of Origin: Taiwan, China
Brand Name: AirTAC, AIRWOLF or OEM
Certification: CE, ISO9001
Model Number: TN10X50S, TN10X60S, TN10X70S, TN10X80S
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: 6-39USD
Packaging Details: Boxes, Cartons, Pallets, Plastic bags
Delivery Time: 1-7 work days
Payment Terms: T/T,Western Union,Paypal
Supply Ability: 1000 pcs per week
Contact Now
Detailed Product Description
Item Code: TN10X50S, TN10X60S, TN10X70S, TN10X80S Body Material: Aluminum
Seal Material: NBR Working Pressure: 0.2~1.0MPa(29~145psi)
Operating Temperature: -20~70℃ Working Medium: Air(to Be Filtered By 40μm Filter Element)
Bore Size: 10mm Function: Double Acting
Highlight:

AirTAC double acting twin-rod cylinder

,

TN series pneumatic air cylinder

,

twin-rod cylinder with warranty

TN10X50S TN10X60S TN10X70S TN10X80S TN Series AirTAC Double Acting Twin-rod Cylinder
What sets the TN Series apart is its space-first, embedded-installation philosophy: the square-profile body carries machined mounting holes on the top face, bottom face, and end face—plus four integrated C-groove sensor channels​ for flush-mounted magnetic reed or solid-state switches—so the cylinder mounts like a structural building block with virtually zero protruding hardware. Stroke adjustability is handled not by bulky air cushions but by a front-end bumper (TPU) stop, allowing fine trimming in the –5 mm to 0 range​ without relocating the entire mount. Standard bore options are 10 / 16 / 20 / 25 / 32 mm, with standard strokes from 10 mm up to 200 mm; theoretical thrust scales from roughly 15.7 N @0.1 MPa (TN10)​ to ~1609 N @0.7 MPa (TN32)​ on the push side, while pull force runs about 75 % of push force​ due to the rods' cross-sectional area. Internally, self-lubricating, oil-impregnated bearing bushes and NBR/POM sealing elements support rated speeds of 30–500 mm/s​ in non-lube service, and all standard units ship with integral rare-earth magnet​ for position sensing (non-magnet versions are not offered).
Order Codes:
Item Code Piston (mm) Stroke (mm) Type
TN10×50S 10 50 Double acting
TN10×60S 10 60 Double acting
TN10×70S 10 70 Double acting
TN10×80S 10 80 Double acting
[Note1] Retract position.
[Note2] PT thread is available.
Datasheet:
Bore size(mm) 10 16 20 25 32
Acting type Double acting
Fluid Air(to be filtered by 40μm filter element)
Operating pressure 0.2~1.0MPa(29~145psi) 0.15~1.0MPa(22~145psi)
Proof pressure 1.5MPa(215psi)
Temperature °C -20~70
Speed range mm/s 30~500
Adjustable stroke mm -5~0
Stroke tolerance ≤100+1,00>100+1,50
Cushion type Bumper
Non-rotating tolerance [Note1] ±0.4° ±0.3°
Port size [Note2] M5×0.8 1/8"

Dimensions:
TN10X50S TN10X60S TN10X70S TN10X80S TN Series AirTAC Double Acting Twin-rod Cylinder
