XQ Series Aluminum Pneumatic Mechanical Valve with 3/2 Way and 5/2 Way Positions for Dry Compressed Air Directional Control

Product Details:

Place of Origin:	CHINA
Brand Name:	SXPC AIRWOLF or OEM
Model Number:	XQ230412 XQ230612 XQ250412 XQ250612

Payment & Shipping Terms:

Minimum Order Quantity:	1 piece
Price:	4-10USD
Packaging Details:	plastic bags, carton, pallet
Delivery Time:	1-3 work days
Payment Terms:	T/T, Paypal, Western Union, Alibaba
Supply Ability:	1000 pcs per week

Contact Now

Detailed Product Description

Body Material:	Aluminum	Seal Material:	NBR
Operating Pressure:	0-1.0MPa	Working Temperature Range:	-10~+60 ℃
Port Size:	1/8", 1/4"	Position:	3/2way, 5/2way
Working Medium:	Dry Compressed Air Filtered By 40μm	Color:	Silver
Highlight:	3/2 Way Pneumatic Mechanical Valve , 5/2 Way Directional Control Valve , Dry Compressed Air Manual Valve

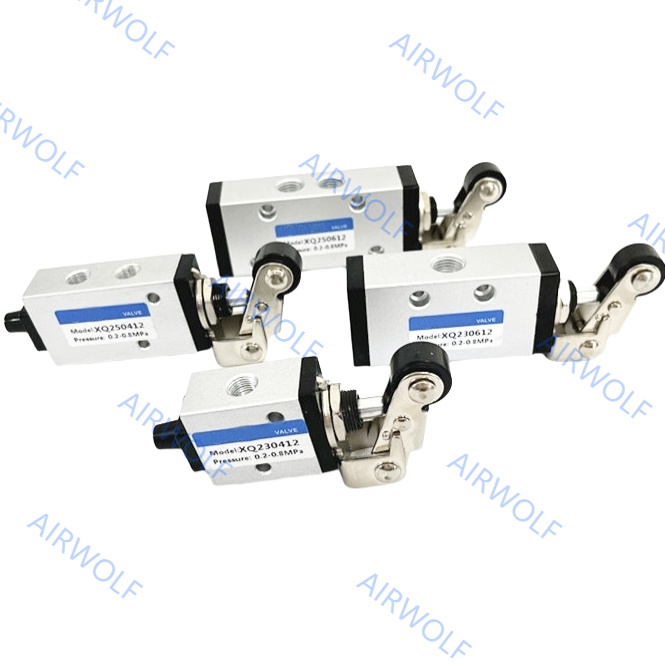

XQ Series Aluminum XQ230412 XQ230612 XQ250412 XQ250612 3/2 way 5/2 way Mechanical Valve 1/4" 1/8"

Order Code:

Item Code	Port Size	Positions

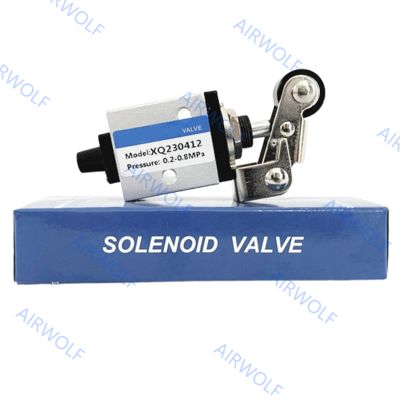

XQ230412	1/8"	3/2 way

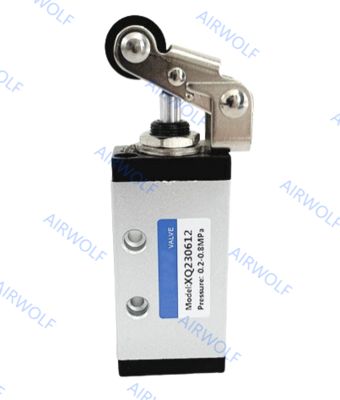

XQ230612	1/4"	3/2 way

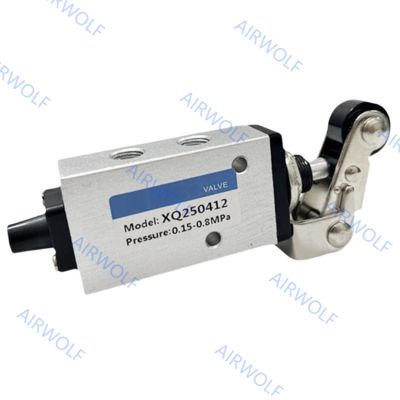

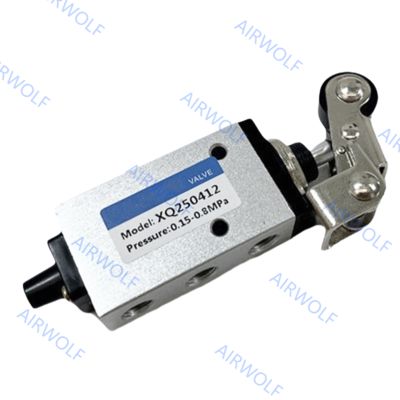

XQ250412	1/8"	5/2 way

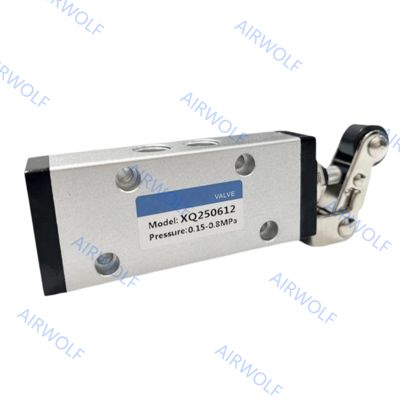

XQ250612	1/4"	5/2 way

Mechanical valves usually use the externa forces from cams or rams to change the fluid flowing directions.When the external forces disappear the valves reset automatically. There are several control types: plunger, roller plunger, roller lever and one way roller lever, 2-Pos. 3-Port and 2-Pos. 5-Port. The P port and R port of a 2-Pos. 3-Port valve can be exchanged so as to change the valve from normally closed to normally open.

When a mechanical valve is in stalled, the moving direction of the ram should be in angle against the valve and the plunger should be pressed down a S distance (the direction-changed stroke) as shown in diagram (X 230410).

Dimensions:
