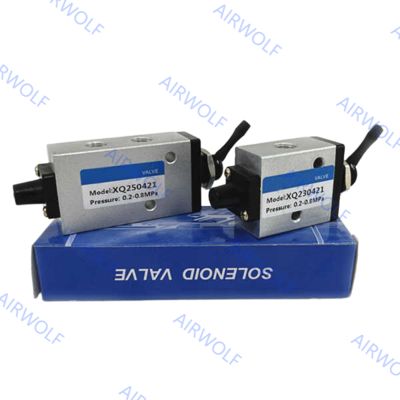

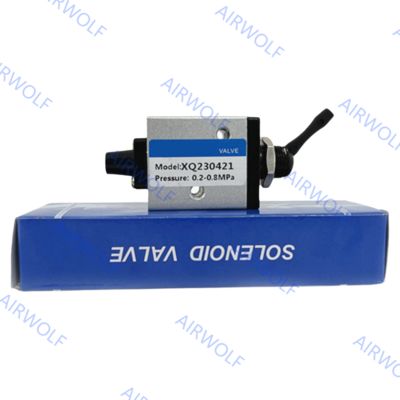

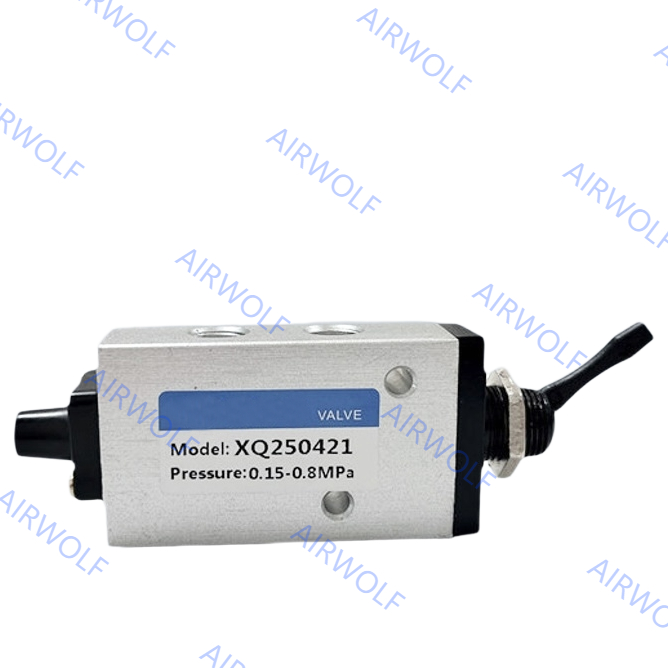

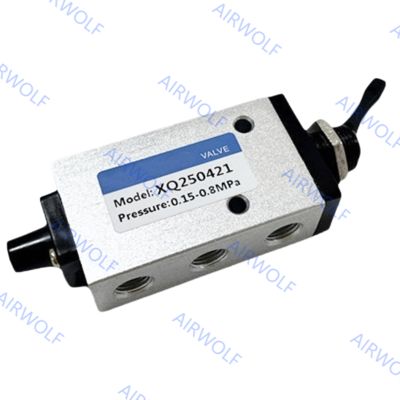

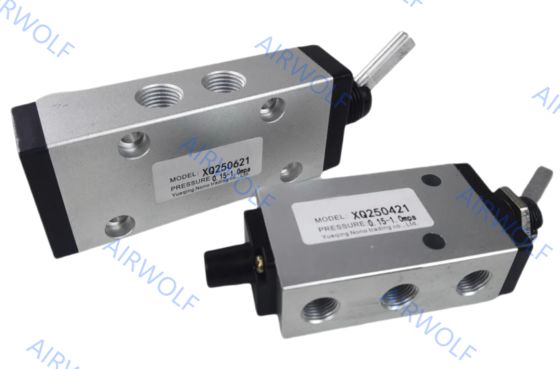

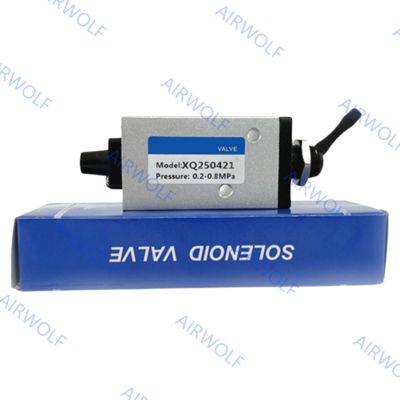

Name: XQ Series Aluminum Pneumatic Manual Valve with 1/8" Port Size NBR Seal for Directional Control
Brand: Airwolf Automation
SKU: XQ230421 XQ230621 XQ250421 XQ250621
Price: 7.00 USD
Availability: InStock

Home Products Pneumatic Manual Valve

XQ Series Aluminum Pneumatic Manual Valve with 1/8" Port Size NBR Seal for Directional Control

Product Details:

Place of Origin:	CHINA
Brand Name:	SXPC AIRWOLF or OEM
Model Number:	XQ230421 XQ230621 XQ250421 XQ250621

Payment & Shipping Terms:

Minimum Order Quantity:	1 piece
Price:	5-10USD
Packaging Details:	plastic bags, carton, pallet
Delivery Time:	1-3 work days
Payment Terms:	T/T, Paypal, Western Union, Alibaba
Supply Ability:	1000 pcs per week

Contact Now

Detailed Product Description

Body Material:	Aluminum	Seal Material:	NBR
Operating Pressure:	0-1.0MPa	Working Temperature Range:	-10~+60 ℃
Port Size:	1/8", 1/4"	Function:	Directional Control
Position:	3/2way, 5/2way	Working Medium:	Dry Compressed Air Filtered By 40μm
Highlight:	1/8" Port Size Pneumatic Manual Valve , NBR Seal Directional Control Valve , Directional Control Manual Air Valve

XQ Series Aluminum XQ230421 XQ230621 XQ250421 XQ250621 5/2 way, 3/2 way Pneumatic Manual Valves 1/4" 1/8"

Order Code:

Item Code	Port Size	Positions
XQ230421	1/8"	3/2 way
XQ230621	1/4"	3/2 way
XQ250421	1/8"	5/2 way
XQ250621	1/4"	5/2 way

The valves are manual direction control valves.They can be used to directly control cylinders or used as the signal valves of some pneumatic components.

There are many control types of the valves: push button, toggle lever, push-pull, foot pedal, hand control and hand rotary. Especially the emergency stop valve is used as the emergency stopper of pneumatic equipment due to its short switching stroke.

2-Pos. 3-Port, 2-Pos. 5-Port, 3-Pos. 4-Port, . The P and R ports can be exchanged so as to make the valve normally closed or open.

Dimensions:
