Name: XQ Series Aluminum Pneumatic Manual Valve with 0-1.0MPa Operating Pressure and -10~+60 ℃ Working Temperature for 1/8" Port Size
Brand: Airwolf Automation
SKU: XQ230420 XQ230620 XQ250420 XQ250620
Price: 5.00 USD
Availability: InStock

Home Products Pneumatic Manual Valve

XQ Series Aluminum Pneumatic Manual Valve with 0-1.0MPa Operating Pressure and -10~+60 ℃ Working Temperature for 1/8" Port Size

Product Details:

Place of Origin:	CHINA
Brand Name:	SXPC AIRWOLF or OEM
Model Number:	XQ230420 XQ230620 XQ250420 XQ250620

Payment & Shipping Terms:

Minimum Order Quantity:	1 piece
Price:	2-8USD
Packaging Details:	plastic bags, carton, pallet
Delivery Time:	1-3 work days
Payment Terms:	T/T, Paypal, Western Union, Alibaba
Supply Ability:	1000 pcs per week

Contact Now

Detailed Product Description

Body Material:	Aluminum	Seal Material:	NBR
Operating Pressure:	0-1.0MPa	Working Temperature Range:	-10~+60 ℃
Port Size:	1/8", 1/4"	Function:	Directional Control
Position:	3/2way, 5/2way	Working Medium:	Dry Compressed Air Filtered By 40μm
Highlight:	0-1.0MPa Operating Pressure Pneumatic Manual Valve , -10~+60 ℃ Working Temperature Directional Control Valve , 1/8" Port Size Manual Air Valve

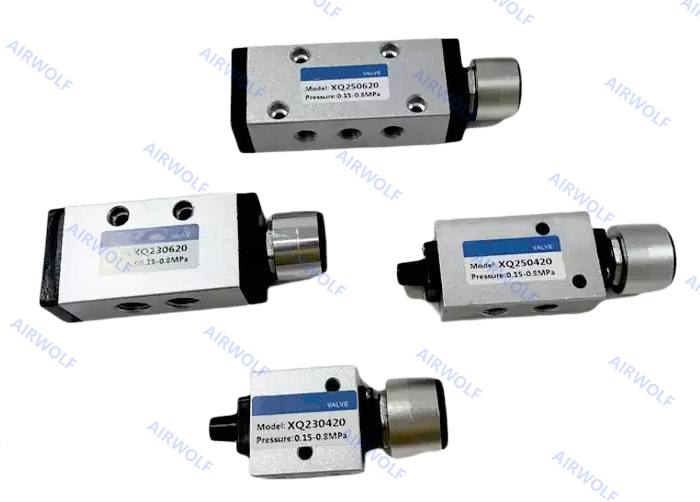

XQ Series Aluminum XQ230420 XQ230620 XQ250420 XQ250620 5/2 way, 3/2 way Pneumatic Manual Valves 1/4" 1/8"

Order Code:

Item Code	Port Size	Positions

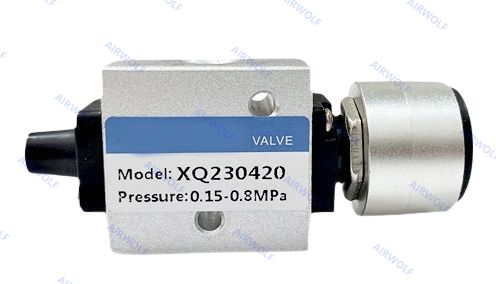

XQ230420	1/8"	3/2 way

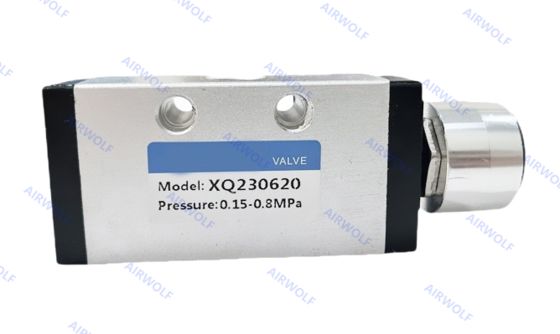

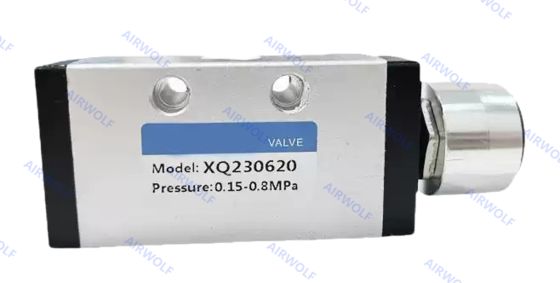

XQ230620	1/4"	3/2 way

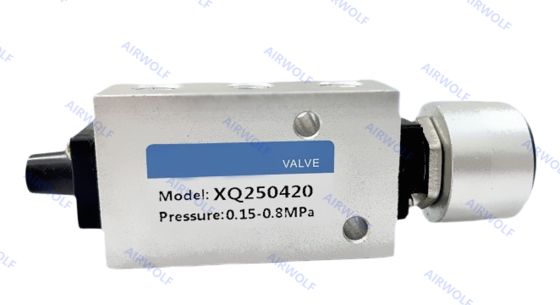

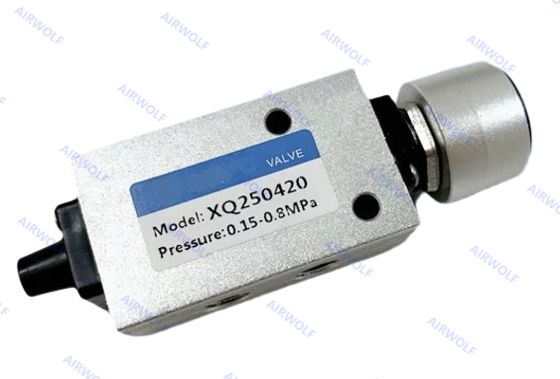

XQ250420	1/8"	5/2 way

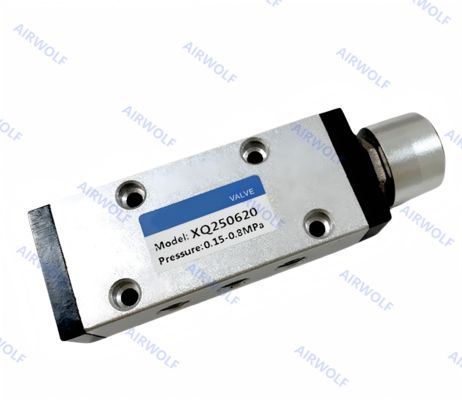

XQ250620	1/4"	5/2 way

The valves are manual direction control valves.They can be used to directly control cylinders or used as the signal valves of some pneumatic components.

There are many control types of the valves: pushbutton, toggle lever, push-pull, foot pedal, hand control and hand rotary. Especially the emergency stop valve is used as the emergency stopper of pneumatic equipment due to its short switching stroke.

2-Pos. 3-Port, 2-Pos. 5-Port, 3-Pos. 4-Port, . The P and R ports can be exchanged so as to make the valve normally

closed or open.

Dimensions:

XQ Series Aluminum Pneumatic Manual Valve with 0-1.0MPa Operating Pressure and -10~+60 ℃ Working Temperature for 1/8" Port Size
