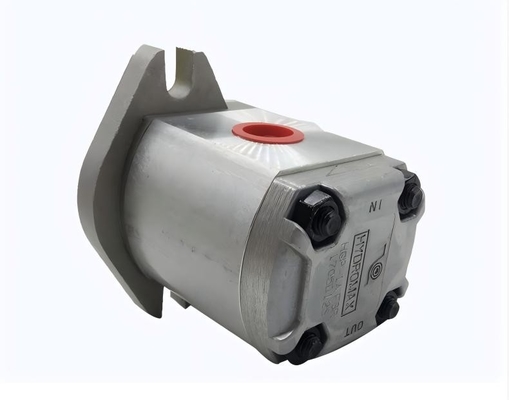

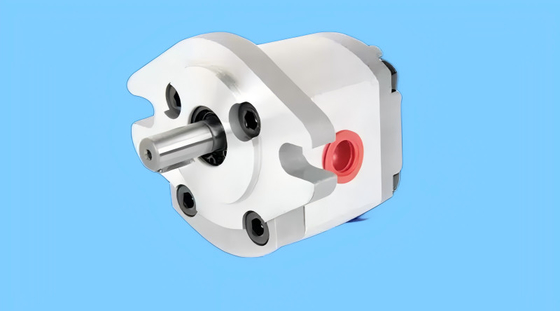

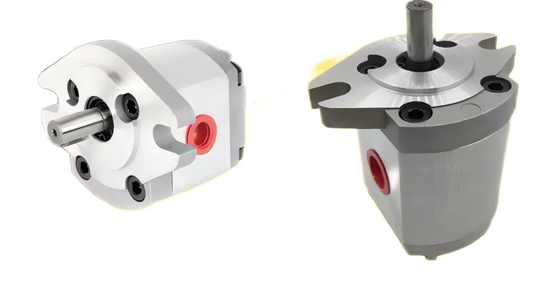

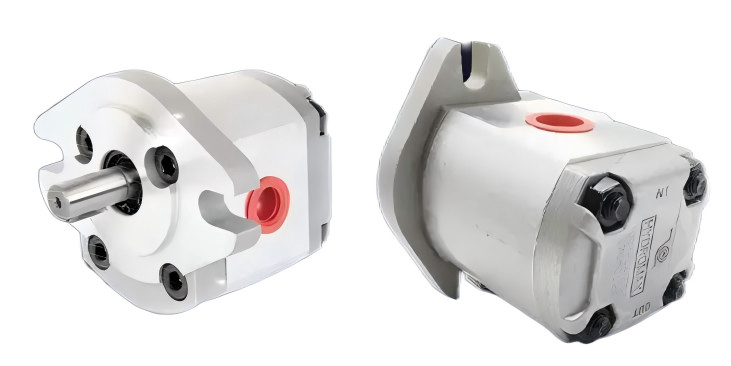

Name: Taiwan Gear Oil Pump HYDROMAX HGP-1AF6R HGP-1AF3R HGP-1AF5R
Brand: FLY AUTOMATION
SKU: HGP-1AF1R HGP-1AF3R HGP-1AF5R HGP-1AF8R HGP-1AF2R HGP-1AF4R HGP-1AF6R
Price: 292.00 USD
Availability: InStock

Home Products Hydraulic System Components

Taiwan Gear Oil Pump HYDROMAX HGP-1AF6R HGP-1AF3R HGP-1AF5R

Product Details:

Place of Origin:	China Taiwan
Brand Name:	HYDROMAX
Model Number:	HGP-1AF1R HGP-1AF3R HGP-1AF5R HGP-1AF8R HGP-1AF2R HGP-1AF4R HGP-1AF6R

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	35-550USD
Packaging Details:	poly bags, box, cartons, pallets
Delivery Time:	3-12working days
Payment Terms:	T/T, Western Union, MoneyGram,Paypal
Supply Ability:	500 pcs per week

Contact Now

Detailed Product Description

Standard Pressure:	103.5 Bar (1500 PSI) AC 207 Bar (3000 PSI) DC	Body Material:	Carbon Steel
Shift Type:	Soft	Mounting Type:	Flange
Outlet Flow:	8-40L/min	Max. Pressure:	250 Kgf/cm2 ( 3500psi )
Displacement:	0.5~7.8 Cc/rev	Flange:	SAE 2-bolt, DIN 4-bolt, European 4-bolt
Highlight:	HYDROMAX Gear Oil Pump , HGP-1AF6R Gear Oil Pump , HGP-1AF5R Gear Oil Pump

Taiwan Gear Oil Pump HYDROMAX HGP-1AF6R HGP-1AF3R HGP-1AF5R

Displacement : 0.5~7.8 cc/rev
Max. Pressure : 250 kgf/cm2 ( 3500psi )
Flange : SAE 2-bolt, DIN 4-bolt, European 4-bolt
Ordering Code:
HGP-1AF1R
HGP-1AF3R
HGP-1AF5R
HGP-1AF8R
HGP-1AF2R
HGP-1AF4R
HGP-1AF6R

Taiwan Gear Oil Pump HYDROMAX HGP-1AF6R HGP-1AF3R HGP-1AF5R
SPECIFICATIONS:

Model	Accurate Displacement Capacity (cc/rev)	Operational Pressure (kgf/cm²)	Max. Pressure (kgf/cm²)	Speed (r.p.m.)			Weight (kg)
Model	Accurate Displacement Capacity (cc/rev)	Operational Pressure (kgf/cm²)	Max. Pressure (kgf/cm²)	Rate	Max.	Min.	Weight (kg)
HGP-1A-05	0.5	210	250	1800	4500	1000	1.0
HGP-1A-08	0.8	210	250	1800	4500	1000	1.0
HGP-1A-1	1	210	250	1800	4500	1000	1.0
HGP-1A-2	2	210	250	1800	4500	600	1.05
HGP-1A-26	2.6	210	250	1800	4500	600	1.15
HGP-1A-3	3	210	250	1800	4500	600	1.15
HGP-1A-4	4	210	250	1800	4000	600	1.18
HGP-1A-5	5	210	250	1800	3200	600	1.2
HGP-1A-6	6	210	250	1800	3200	600	1.3
HGP-1A-8	7.8	170	210	1800	3200	600	1.4

HGP-1A-05 and HGP-1A-26 do not belong to regular products. Customized service can be provided.

Taiwan Gear Oil Pump HYDROMAX HGP-1AF6R HGP-1AF3R HGP-1AF5R
