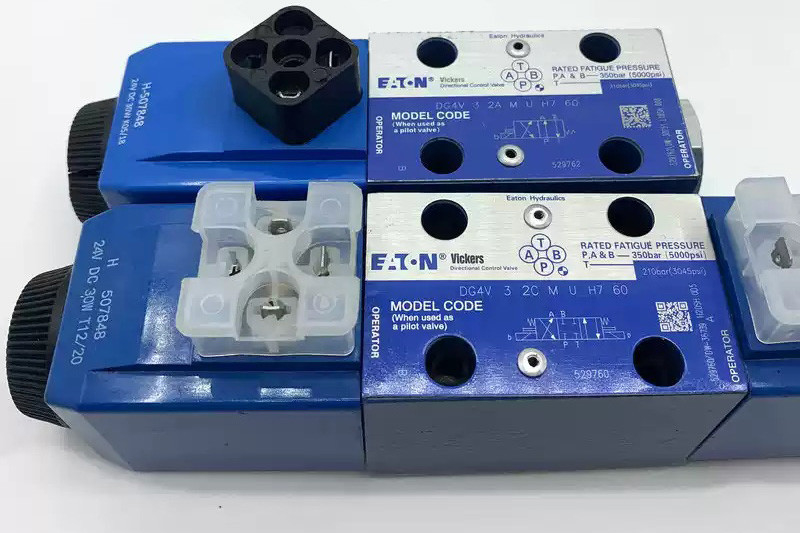

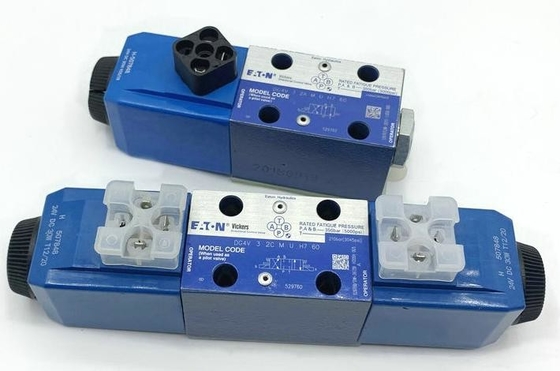

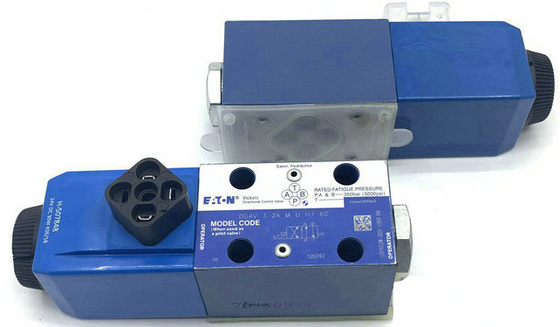

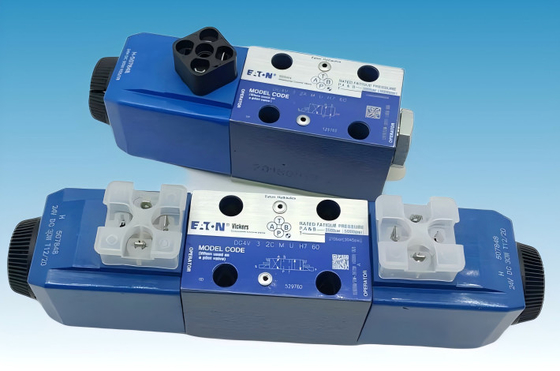

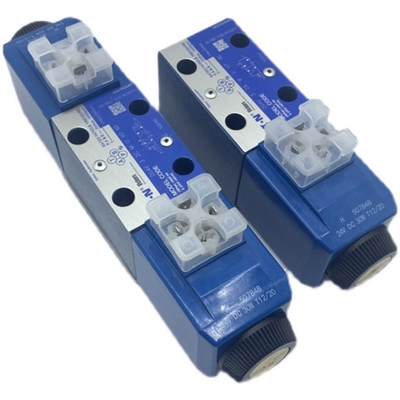

Name: EATON VICKERS Hydraulic Solenoid Operated Directional Valve DG4-3V-60 ISO4401
Brand: FLY AUTOMATION
SKU: DG4V-3-2C-M-U-H7-60 DG4V-3-2A-M-U-H7-60 DG4V-3-8C-M-U-H7-60 DG4V-3-2AL-M-U-H7-60 DG4V-3-0B-M-U-H7-60 DG4V-3-6C-M-U-H7-60 DG4V-3-2N-M-U-H7-60 DG4V-3-0C-M-U-H7-60 DG4V-3-0A-M-U-H7-60 DG4V-3-7C-M-U-H7-60
Price: 45.00 USD
Availability: InStock

Home Products Hydraulic System Components

EATON VICKERS Hydraulic Solenoid Operated Directional Valve DG4-3V-60 ISO4401

Product Details:

Place of Origin:	China USA
Brand Name:	EATON VICKERS
Model Number:	DG4V-3-2C-M-U-H7-60 DG4V-3-2A-M-U-H7-60 DG4V-3-8C-M-U-H7-60 DG4V-3-2AL-M-U-H7-60 DG4V-3-0B-M-U-H7-60 DG4V-3-6C-M-U-H7-60 DG4V-3-2N-M-U-H7-60 DG4V-3-0C-M-U-H7-60 DG4V-3-0A-M-U-H7-60 DG4V-3-7C-M-U-H7-60

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	35-55USD
Packaging Details:	poly bags, box, cartons, pallets
Delivery Time:	3-12working days
Payment Terms:	T/T, Western Union, MoneyGram,Paypal
Supply Ability:	500 pcs per week

Contact Now

Detailed Product Description

Voltage:	DC24V AC220V	Max Pressure:	350bar
Body Material:	Carbon Steel	Shift Type:	Soft
Spools:	Proportional	Waterproof:	Meets NEMA 4, Up To IP67 On Some Models
Connection Options:	Eight Electrical Connection	Mounting Pattern:	NFPA D03, CETOP 3, NG 6
Mounting Interface:	DIN 24340-A6 , ISO 4401-AB-03-4-A ,CETOP R35H 4.2-4-03
Highlight:	Hydraulic Solenoid Operated Directional Valve , EATON VICKERS Solenoid Operated Directional Valve , DG4-3V-60

EATON VICKERS Hydraulic Solenoid Operated Directional Valve DG4-3V-60 ISO4401

Order Codes:
DG4V-3-2C-M-U-H7-60
DG4V-3-2A-M-U-H7-60
DG4V-3-8C-M-U-H7-60
DG4V-3-2AL-M-U-H7-60
DG4V-3-0B-M-U-H7-60
DG4V-3-6C-M-U-H7-60
DG4V-3-2N-M-U-H7-60
DG4V-3-0C-M-U-H7-60
DG4V-3-0A-M-U-H7-60
DG4V-3-7C-M-U-H7-60

EATON VICKERS Hydraulic Solenoid Operated Directional Valve DG4-3V-60 ISO4401
General Description
1. Solenoid operated directional control valves are for directing and stopping flow at any point in a hydraulic system.
2. Efficient control of greater hydraulic powers without increasing solenoid power consumption.
3. Installed cost and space savings from higher power/weight-and-size ratios.
4. Installation flexibility resulting from choice of numerous combinations of solenoid connectors and locations.
5. Viton seals as standard for multi-fluid capability. Nitrile seals available as a model code option.
6. Higher sustained machine productivity and higher uptime because of proven fatigue life and endurance,
tested over 20 million cycles.
7. Solenoid coils can be changed quickly and easily without leakage from hydraulic system.
8. Compact, cost effective system design when used with Eaton® SystemStak™ valves and subplates.

Operating Data
Feature DG4V-3 DG4V-3S DG4V-3R
Pressure Limits P, A and B ports 350 bar (5075 psi) 350 bar (5075 psi) 350 bar (5075 psi)

T port 210 bar (3045 psi) 100 bar (1450 psi) 210 bar (3045 psi)
Flow rating See performance data See performance data See performance data
Relative duty factor Continuous; ED = 100% Continuous; ED = 100% Continuous; ED = 100%
Type of protection: ISO 4400 coils with fitted correctly	IEC 144 class IP65 IEC 144 class IP65 IEC 144 class IP65 plug
Coil winding Class H Class H Class H
Lead wires (coils type F***) Class H Class H Class H
Coil encapsulation Class F Class F Class F
Permissable voltage fluctuation: Maximum Refer to temperature limits. Refer to temperature limits. Refer to temperature limits.
Minimum 90% rated 90% rated 90% rated
Typical response times at 100% rated volts measured from application/removal of voltage to full spool displacement of “2C” spool at:
Flow rate P-A, B-T 40 l/min (10.6 USgpm) 20 l/min (5.3 USgpm) 20 l/min (5.3 Usgpm)
Pressure 175 bar (2537 psi) 175 bar (2537 psi) 175 bar (2527 PSI)
AC (~) energizing 15 ms 18 ms 18 ms
AC (~) de–energizing 23 ms 32 ms 32 ms
DC (=) energizing 45 ms 60 ms 60 ms
DC (=) de–energizing 28 ms 40 ms 40 ms
Power consumption, AC solenoids (for coils listed in model code).			Initial VA (RMS) ▲	Holding VA (RMS)	Initial VA (RMS) ▲	Holding VA (RMS)	Initial VA (RMS)	Holding VA (RMS)
Full power coils: Dual frequency coils at 280 61 280 61 N/A 50 Hz
Dual frequency coils at 300 58 300 58 N/A 60 HZ
Low power coils, “BL” and “DL”: (Not available with “N” – No-spring detented models)			Low power coils not usable with DG4V-3S valves.		170 37 N/A
Dual frequency coils at – – 190 37 N/A 50 Hz
Dual frequency coils at – – – – N/A 60 Hz
Power consumption, Full power coils: 12V, model type “G”		DC solenoids at rated voltage and 20 30W –			C (68 F). 30W	–	N/A
24V, model type “H”		30W –			30W	–	N/A
Low power coils: 12V, model type “GL”		Low power coils not usable with DG4V-3S valves.			–	18W	N/A
24V, model type “HL”					18W	–	N/A
24V, HM Coil					8W	–	N/A
n For applications where valves are to remain pressurized (either energized or de-energized) at pressures over 210 bar (3045 psi) without frequent switching, it is recommended to use the high performance model, DG4V-3.
▲ 1st half cycle; armature fully retracted.

EATON VICKERS Hydraulic Solenoid Operated Directional Valve DG4-3V-60 ISO4401
DG4V3-S/R- High Performance and Standard Performance Valves
1. Minimum pressure drop 2.5 bar at 30 l/min.
2. Range of coil connectors including DIN, Deutsch, AMP and terminal box.
3 Range of coil voltages and power options.
4. Up to 80 l/min (21 USgpm) and up to 40 l/min (10.5USgpm) respectively at 350 bar (5000 psi).
5. Offers designers the opportunity to select the optimum value package for each application.
6. International standard interface. The valve mounting face conforms to ISO 4401, size 03 and is compatible with related international standards.
EATON VICKERS Hydraulic Solenoid Operated Directional Valve DG4-3V-60 ISO4401

Max Pressure: 350Bar
Relative : ED=100%
Protection Class: IP65
Coil Winding: Class H
Lead wire: Class H
Coil encapsulation : Class F
Working Pressure: 175bar
Power of Coil: 30W ,18W
