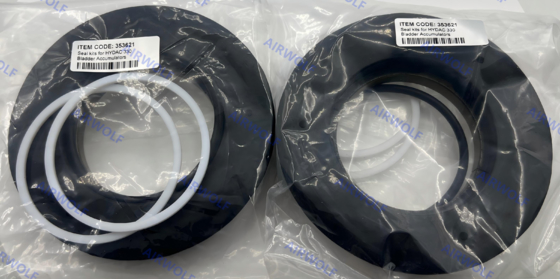

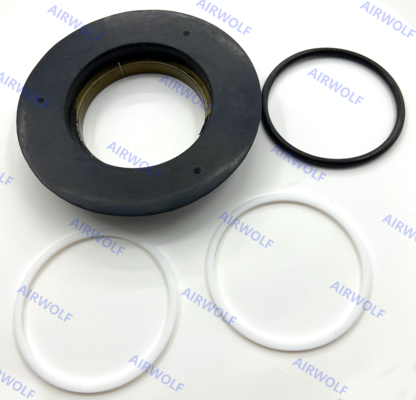

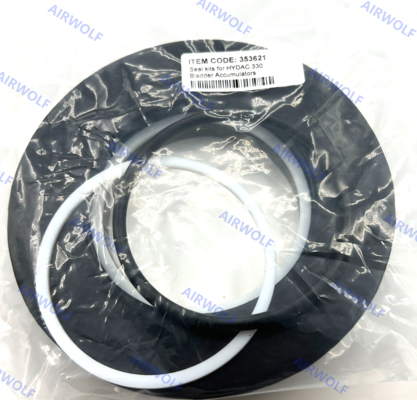

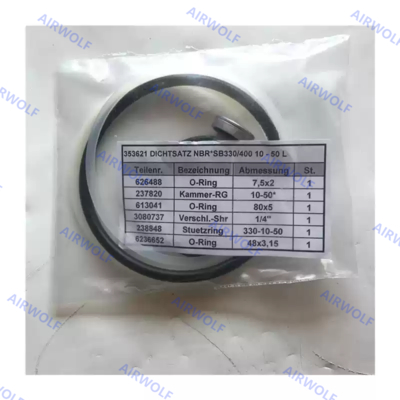

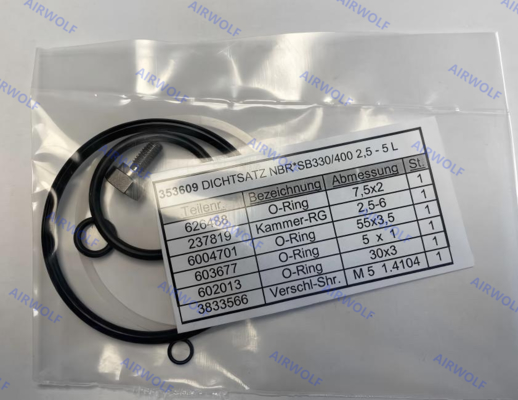

NBR FKM Bladder assembly and seal kits for Hydac SB330 400 Accumulators -10°C...+80°C 236088 236089 376253 235335 235290 353621 376249 365263 353606 237624 236171 353609 236046 240917 2112097 2127255

NBR FKM Bladder assembly and seal kits for Hydac SB330 400 Accumulators -10°C...+80°C 236088 236089 376253 235335 235290 353621 376249 365263 353606 237624 236171 353609 236046 240917 2112097 2127255

NBR FKM Bladder assembly and seal kits for Hydac SB330 400 Accumulators -10°C...+80°C 236088 236089 376253 235335 235290 353621 376249 365263 353606 237624 236171 353609 236046 240917 2112097 2127255
video
NBR FKM Bladder assembly and seal kits for Hydac SB330 400 Accumulators -10°C...+80°C 236088 236089 376253 235335 235290 353621 376249 365263 353606 237624 236171 353609 236046 240917 2112097 2127255
Product Details:
Place of Origin: CHINA GERMANY
Brand Name: HYDAC AIRWOLF
Model Number: 236088 236089 376253 235335 235290 353621 376249 365263 353606 237624 236171 353609 236046 240917 2112097 2127255
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: 25-155USD
Packaging Details: box, carton, pallet
Delivery Time: 3-7 working days
Payment Terms: T/T, Western Union, MoneyGram,Paypal
Supply Ability: 500 pcs per week
Contact Now
Detailed Product Description
Structure: Diaphragm Gas Valve Design: 5/8-18UNF 7/8-14UNF M50x1.5 / 7/8-14UNF
Diaphragm Material: NBR, ECO,FKM Pre-charge Pressure: 50bar
Temperature: -10 °C ... +80 °C Nominal Volume: 0.5L To 200L

NBR FKM Bladder assembly and seal kits for Hydac SB330 400 Accumulators -10°C...+80°C 236088 236089 376253 235335 235290 353621 376249 365263 353606 237624 236171 353609 236046 240917 2112097 2127255



Order Codes:



Nominal volume (L) Bladder assembly Seal kit Repair kit
0.5 365263 353606 2128169
1 237624 2106261
2.5 236171 353609 2106200
4 236046 2106204
5 240917 2106208
6 2112097 2112100
10 2127255 3117512
10 236088 353621 2106212
13 376249 2106216
20 236089 2106220
24 376253 2106224
32 235335 2106228
50 235290 2106252
60 3364274 3102043 3117513
80 3364312 3117514
100 3127313 3117515
130 3201384 3117516
160 3184769 3117517
200 3461300 3117558



Structure and Components:

NBR FKM Bladder assembly and seal kits for Hydac SB330 400 Accumulators -10°C...+80°C 236088 236089 376253 235335 235290 353621 376249 365263 353606 237624 236171 353609 236046 240917 2112097 2127255
