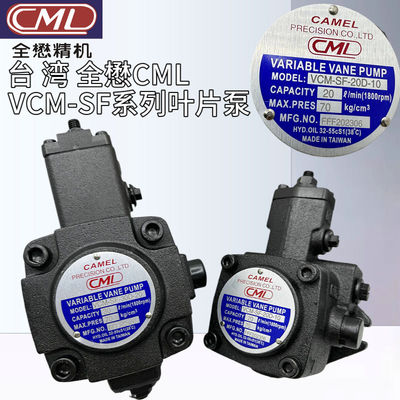

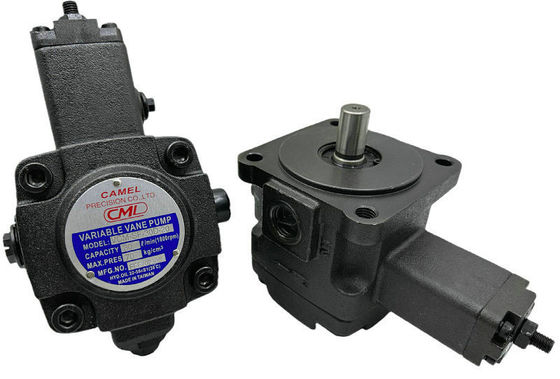

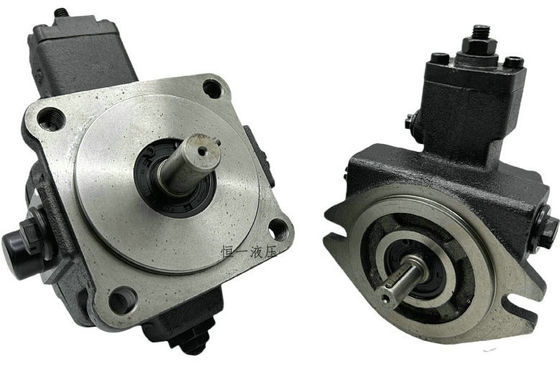

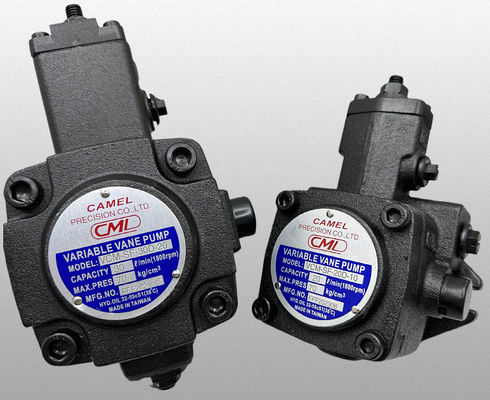

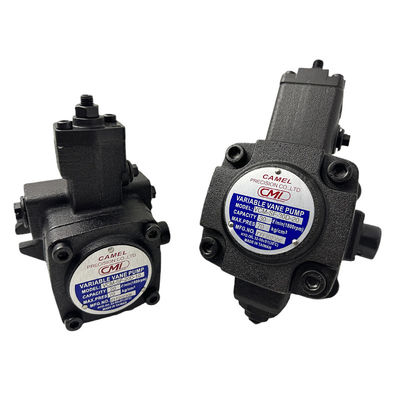

Taiwan CML Low Pressure Variable Vane Pump VCM-SF-12B-10 VCM-SF-12C-10

Taiwan CML Low Pressure Variable Vane Pump VCM-SF-12B-10, VCM-SF-12C-10

Variable Displacement Vane Pump, Variable Volume Vane Pump

Model No.
VCM-SF-12B-10, VCM-SF-12C-10, VCM-SF-12D-10, VCM-SF-20A-10, VCM-SF-20B-10, VCM-SF-20C-10, VCM-SF-20D-10, VCM-SF-30A-20, VCM-SF-30B-20, VCM-SF-30C-20, VCM-SF-30D-20, VCM-SF-40A-20, VCM-SF-40B-20, VCM-SF-40C-20, VCM-SF-40D-20

CML Low Pressure Variable Vane Pump pressure can be adjusted in the range of 5 - 70 bar, and the flow adjust range is 8 - 40 L/min. Before inquiring, you can inform the working pressure and flow, as well as the working conditions of the machine, and we will select the most suitable model for you.

It is widely used in the shoemaking machinery industry. Due to the long production process and the high operating frequency of shoe machines, efficient and stable output is required. CML low-pressure variable vane pump has the advantages of high efficiency and fast pressure compensation speed, so that the process is consistent and smooth.

CML (Camel Precision Co., Ltd.) is one of the leading manufacturers in Taiwan, as a hydraulic total solution provider, dedicated to the manufacture and sales of hydraulic products, assisting customers in building their customized power units and hydraulic systems.

Feature
High efficiency, high-pressure, smooth operation.
Extremely low vibration and noise level.
Instant and stable response for precise machining.
Easy adjustment in handling and maintenance.
Sturdy structure for high efficiency and long service life.
Pump Structure
Suitable for CNC machine tools, such as CNC lathes, CNC milling machines, CNC grinders, fixtures, etc.
Applicable to many types of dedicated hydraulic machinery, circular saw machine, fan processing machines, inner and outer diameter grinding machines, etc.
Application of leading brands of hydraulics shoemaking machinery, toe lasting machine, heel lasting machine, side and heel lasting machine, sole attaching machine.
VCM-SF

Specification

Remark: The pump displacement is the test value under 1800rpm.
