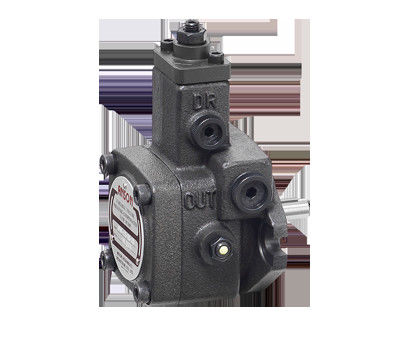

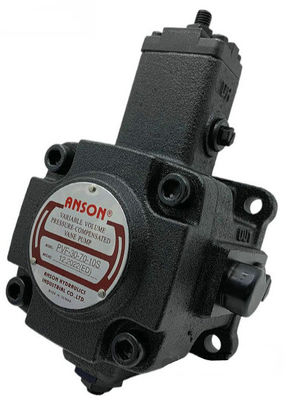

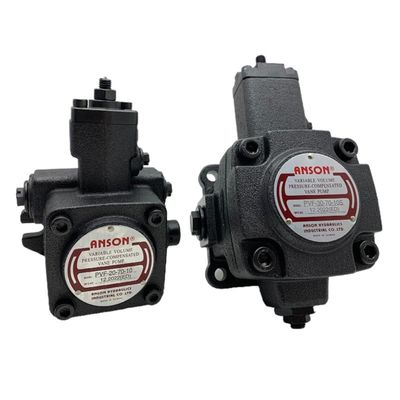

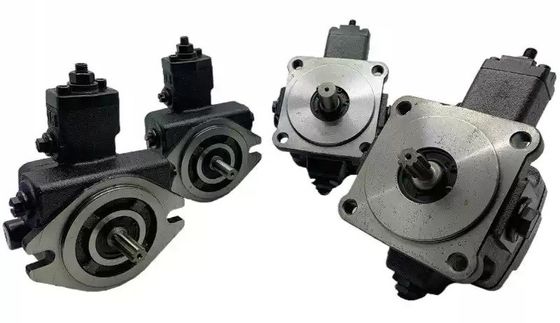

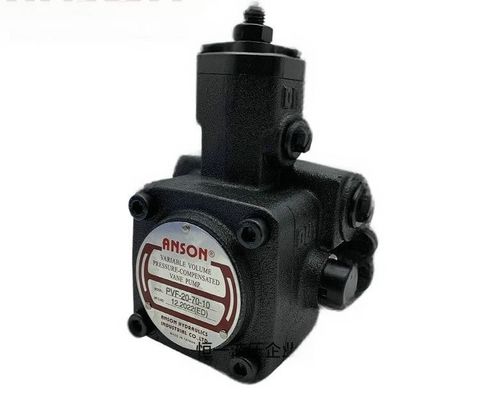

Taiwan ANSON Variable Displacement PVF Series Single Vane Pumps PVF-8 PVF-12 PVF-20 30 40

Taiwan ANSON Variable Displacement PVF Series Single Vane Pumps PVF-8 PVF-12 PVF-20 30 40

Codes:

PVF-12-70-10
PVF-15-35-10
PVF-15-70-10
PVF-15-70-10S(Spline)
PVF-20-35-10
PVF-20-55-10
PVF-20-70-10
PVF-20-70-10S(Spline)
PVF-30-35-10
PVF-30-35-10S(Nine tooth Spline)
PVF-30-55-10
PVF-30-55-10S(Nine tooth Spline)
PVF-30-55-11S(Nine tooth Spline)
PVF-30-70-10
PVF-30-70-10S(Nine tooth Spline)
PVF-30-70-11S(Nine tooth Spline)
PVF-40-35-10
PVF-40-35-10S(Nine tooth Spline)
PVF-40-55-10
PVF-40-55-10S(Nine tooth Spline)
PVF-40-55-11S(Nine tooth Spline
PVF-40-70-10
PVF-40-70-10S(Nine tooth Spline)
PVF-40-70-11S(Nine tooth Spline)

Mounting: Flange
Outlet flow: 8-40L/min
Pressure range: 8-70Bar
Shafts: Woodruff key 8(12), 15-40 Splined Shafts
Splined Standard: ANSI B92.1 CLASS 5
Pumps Speed Limits

Minimum speed:800 r/min
Maximum speed:1800 r/min

Hydraulic vane pumps find widespread use in industrial settings due to their unique characteristics. These pumps are known for their low noise levels and minimal flow pulsations, setting them apart from other hydraulic pump types.

Vane pumps operate using rotors and come in various styles, each with different displacement capacities, flow rates, and pressure capabilities. The choice of vane pump largely depends on the type of fluid being used in the application.

Why Choose ANSON Hydraulics As Your Vane Pump Partner?
In the world of hydraulic vane pump manufacturing, ANSON Hydraulics is unwavering in our commitment to core principles, which include a strong focus on technological advancement, a dedication to maintaining the highest quality standards, and a promise to provide comprehensive service to our esteemed clientele.

At ANSON, we specialize in delivering top-tier hydraulic vane pumps that cater to a wide spectrum of needs. Our product range includes intra vane fixed displacement vane pumps, variable displacement vane pumps, mini hydraulic power pack units, and much more. Additionally, for each model within the vane pump series, we offer both single vane pump and double vane pump variations, providing tailored solutions for various hydraulic applications.

A dependable brand name in hydraulic products
Over the years, we have won full acknowdgement and high reputation for all customers in domestic and overeas. Such reputation results from our efforts in quality pursuance. Quality is the cornerstone of everything we do at ANSON. During manufacturing. In-process quality control is conducted throughout each stage. Each finished product is tested and inspected to meet the highest standards before shipment.

Advanced manufacturing equipment
To ensure the product excellence, advanced machining equipment is a necessity. Over the years, ANSON constantly invested in various equipment such as CNC profile grinding machine, machining centres, CNC lathes etc. Our dedicated craftsmen take great care in every detail to ensure ANSON products are fully satisfied to customers.

The most advanced CNC multi-profile grinding machine
ANSON heavily invested in the most advance CNC profile grinding machine imported TOYO from JAPAN,. This machine is used for grinding cam rings, which features simultaneous control for 5 axes, This machine creates the top level for ANSON pump's quality and performance.

3 Dimensions coordinate measuring machine
ANSON's air conditioned quality control department is equipped with the high precision three dimensional coordinate measuring machine for inspecting parts. It assures the highest parts accuracy as desired.
