Name: Sunrise Nielsen HV200B, HV200D HV Series 4/2 way Hand Rotary Valve 1/4"
Brand: Airwolf Automation
SKU: HV200B, HV200D
Price: 5.00 USD
Availability: InStock

Home Products Pneumatic Manual Valve

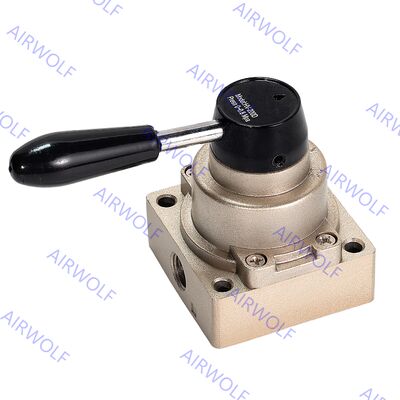

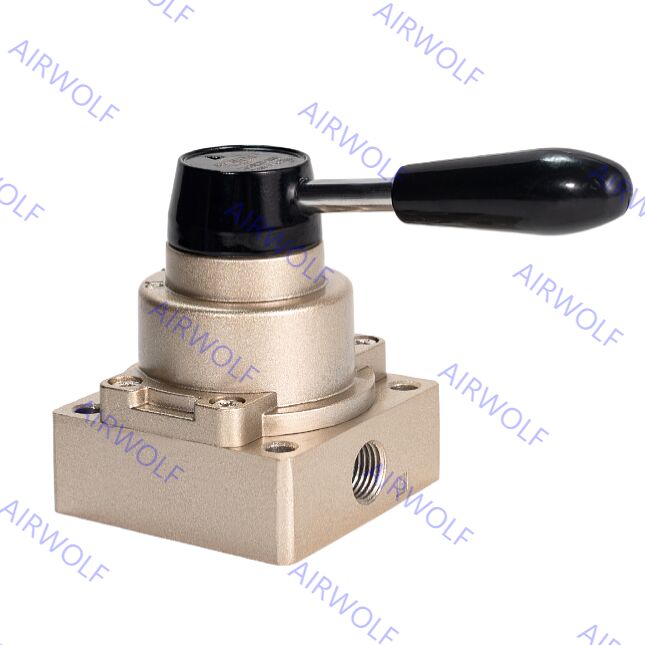

Sunrise Nielsen HV200B, HV200D HV Series 4/2 way Hand Rotary Valve 1/4"

Product Details:

Place of Origin:	Taiwan, China, China
Brand Name:	Sunrise, Nielsen, AIRWOLF or OEM
Model Number:	HV200B, HV200D

Payment & Shipping Terms:

Minimum Order Quantity:	1 piece
Price:	5-6USD
Packaging Details:	Boxes, Cartons, Pallets, Plastic bags
Delivery Time:	1-7 work days
Payment Terms:	T/T,Western Union,Paypal
Supply Ability:	1000 pcs per week

Contact Now

Detailed Product Description

Item Code:	HV200B, HV200D	Body Material:	Aluminum Alloy
Operating Pressure:	0.1~8.5MPa	Working Temperature Range:	–10~+60℃
Port Size:	1/4"	Position:	4/2 Way
Highlight:	Sunrise Nielsen HV200B rotary valve , HV Series 4/2 way valve , 1/4 inch pneumatic manual valve

Sunrise Nielsen HV200B, HV200D HV Series 4/3 way Hand Rotary Valve 1/4"

The HV200B and HV200D are specific models within the HV Series of 4/2-way hand rotary valves, which are manually operated directional control valves used in pneumatic systems. These valves feature four ports (typically labeled P for pressure supply, A and B for actuator connections, and T/R for exhaust) and two distinct positions, allowing an operator to control the direction of airflow to actuate devices like double-acting cylinders. The "B" and "D" suffixes often denote variations in the handle type or specific manual actuation mechanism, such as a lever or a different hand-grip design. Constructed with an aluminum alloy body, these valves are designed for a standard working pressure range of 0 to 0.8 MPa and are compatible with clean, filtered air. Their compact design and manual rotary operation make them ideal for applications requiring direct human control for tasks such as system testing, maintenance, or as a manual override in automated machinery.

Order Codes:

Type	Port Size	Positions	Function
HV200B	1/4"	4/2 way	Two side Interface
HV200D	1/4"	4/2 way	Bottom Interface

Symbol:

Sunrise Nielsen HV200B, HV200D HV Series 4/2 way Hand Rotary Valve 1/4"

Specification:

Model	HV200B	HV200D
Working medium	Air(to be filtered by 40μm filter element)
Action mode	Manual control
Port size	1/4"
Operating pressure	0.1~8.5MPa
Number of positions	4 port 2 position
Working temperature range	−10~60℃
Proof pressure	0.1MPa

Dimensions:

Quality Standards:

The company for the products are brand new original products, no second-hand and refurbished products, or leave a compensable ten and return the full amount , but the buyer due to our purchase of model error is not responsible for returns, another of the company's sales of products enjoy one year from the date of shipment quality assurance , according to the original quality standards , during warranty with product problems , need confirmation testing by the manufacturer , the supplier to be solved , the demand side due to storage , use, poor maintenance caused by lower-quality product , and not raise objections.

Samples:

You can send a sample to customize the products, we have many engineers can help it; If you want a product of mine, but you are not sure if it's what you want, so you can ask for a sample from me, it will be free.

After-sale service:

We can provide a series of after-sale service, such as product introduction, mounting, debugging, technical support and so on.

Competitive Advantage:

Our product features:	Our Services Guarantee:
1) Competitive price	1) Prompt respond (Reply with 24 hours)
2) Good quality	2) Free Samples (Customer pay for the delivery cost)
3) Professional Packaging	3) 1 year warranty
4) Produce according to Customers’ instruction	4) Photos/videos are available during production.
5) None delay shipment	5) Loading inspection, and send loading photos before shipment.
