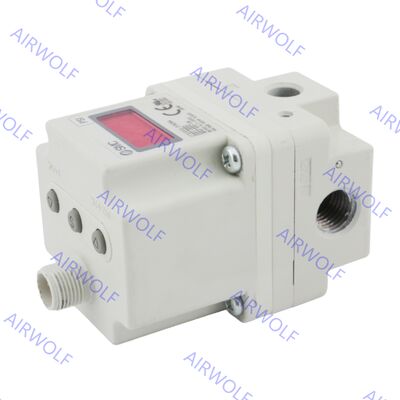

Name: SMC ITV1011-021S/L/N ITV1031-021S/L/N ITV1051-021S/L/N Electro Pneumatic Regulator
Brand: Airwolf Automation
SKU: ITV1011-021S ITV1031-021S ITV1051-021S ITV1011-021L ITV1031-021L ITV1051-021L ITV1011-021N ITV1031-021N ITV1051-021N
Price: 100.00 USD
Availability: InStock

Home Products Pneumatic Solenoid Valves

SMC ITV1011-021S/L/N ITV1031-021S/L/N ITV1051-021S/L/N Electro Pneumatic Regulator

Product Details:

Place of Origin:	Japan, China
Brand Name:	SMC, AIRWOLF or OEM
Certification:	IP65
Model Number:	ITV1011-021S ITV1031-021S ITV1051-021S ITV1011-021L ITV1031-021L ITV1051-021L ITV1011-021N ITV1031-021N ITV1051-021N

Payment & Shipping Terms:

Minimum Order Quantity:	1 piece
Price:	80-120USD
Packaging Details:	Boxes, Cartons, Pallets, Plastic bags
Delivery Time:	1-7 work days
Payment Terms:	T/T,Western Union,Paypal
Supply Ability:	1000 pcs per week

Contact Now

Detailed Product Description

Item Code:	ITV1011-021S ITV1031-021S ITV1051-021S ITV1011-021L ITV1031-021L ITV1051-021L ITV1011-021N ITV1031-021N ITV1051-021N	Body Material:	Aluminum
Seals Material:	NBR	Operating Pressure:	0.1~1.0MPa
Working Temperature Range:	0~50°C (No Condensation)	Port Size:	1/8"
Function:	Proportional Pressure Control Via Electrical Signals	Operating Voltage:	12 To 15 VDC
Highlight:	electro pneumatic regulator with warranty , SMC ITV series pneumatic regulator , industrial pneumatic tube fittings regulator

SMC ITV1011-021S/L/N ITV1031-021S/L/N ITV1051-021S/L/N Electro Pneumatic Regulator

These regulators find specialized applications in semiconductor manufacturing, particularly in CMP (Chemical Mechanical Planarization) equipment where they precisely control polishing head pressure for wafers, LCD glasses, and color filters. They're also essential in thrust control systems, press-fit operations, and precision assembly lines where consistent force application is critical, with the alarm output feature (available in X420 models) providing immediate notification if set pressure isn't reached or maintained for over 5 seconds.

Order Codes:

Item Code	Pressure range	Power supply voltage
ITV1011-021S	0.1 MPa	12 to 15 VDC
ITV1031-021S	0.5 MPa	12 to 15 VDC
ITV1051-021S	0.9 MPa	12 to 15 VDC
ITV1011-021L	0.1 MPa	12 to 15 VDC
ITV1031-021L	0.5 MPa	12 to 15 VDC
ITV1051-021L	0.9 MPa	12 to 15 VDC
ITV1011-021N	0.1 MPa	12 to 15 VDC
ITV1031-021N	0.5 MPa	12 to 15 VDC
ITV1051-021N	0.9 MPa	12 to 15 VDC

Specifications:

Model		ITV101□	ITV103□	ITV105□
		ITV201□	ITV203□	ITV205□
		ITV301□	ITV303□	ITV305□
Min. supply pressure		Set pressure + 0.1 MPa
Max. supply pressure		0.2 MPa	1.0 MPa
Set pressure range		0.005 to 0.1 MPa	0.005 to 0.5 MPa	0.005 to 0.9 MPa
Power supply	Voltage	24 VDC ±10%, 12 to 15 VDC
	Current consumption	Power supply voltage 24 VDC type: 0.12 A or less Power supply voltage 12 to 15 VDC type: 0.18 A or less

Input signal	Current type	4 to 20 mADC, 0 to 20 mADC (Sink type)
	Voltage type	0 to 5 VDC, 0 to 10 VDC
	Preset input	4 points (Negative common), 16 points (No common polarity)
	Digital input	10 bits (Parallel)
Input impedance	Current type	250 Ω or less
	Voltage type	Approx. 6.5 kΩ
	Preset input	Power supply voltage 24 VDC type: Approx. 4.7 kΩ Power supply voltage 12 VDC type: Approx. 2.0 kΩ

	Digital input	Approx. 4.7 kΩ
Output signal (Monitor output)	Analog output	1 to 5 VDC (Output impedance: Approx. 1 kΩ) 4 to 20 mADC (Sink type) (Output impedance: 250 Ω or less) Output accuracy ±6% F.S. or less


	Switch output	NPN open collector output: Max. 30 V, 80 mA PNP open collector output: Max. 80 mA

Linearity		±1% F.S. or less
Hysteresis		0.5% F.S. or less
Repeatability		±0.5% F.S. or less
Sensitivity		0.2% F.S. or less
Temperature characteristics		±0.12% F.S./°C or less
Output pressure display	Accuracy	±2% F.S. ±1 digit or less
	Min. unit	MPa: 0.001, kgf/cm²: 0.01, bar: 0.01, psi: 0.1, kPa: 1
Ambient and fluid temperatures		0 to 50°C (No condensation)
Enclosure		IP65
Weight	ITV10□□	Approx. 250 g (Without options)
	ITV20□□	Approx. 350 g (Without options)
	ITV30□□	Approx. 645 g (Without options)

Construction:

SMC ITV1011-021S/L/N ITV1031-021S/L/N ITV1051-021S/L/N Electro Pneumatic Regulator

Dimensions:

SMC ITV1011-021S/L/N ITV1031-021S/L/N ITV1051-021S/L/N Electro Pneumatic Regulator

Our Company:

Airwolf Automation is a world-renowned supply chain management company. A complete supply chain with 500,000 industrial parts can be supplied to 160 countries.

More than a thousand cooperative brands, super supply chain management ability, to ensure the fastest speed to meet your procurement needs.

Delivery:

1. If the products we have in store, we will send it out ASAP after payment.

2. If the products which were customized, we will complete the production within a specified period of time, and send it out the first time, we can promise it.

3. Also we can send by your delivery acount if you want.

4. We have a variety of ways to send goods, usually DHL, Fedex, TNT will be normal ways. If you require use of a courier, we can do it.

Q&A:

1. Q: Do you provide warranty for the goods?

A: Yes, we provide warranty for all the goods from us.

2. Q: Could seek best provide technology support?

A: We're in this field more than 10 years. If there's any problem, please contact with us,we'll provide suggestion from our engineer to help you solve problem.

3. Q: Does seek best keeps goods in stock or only trading?

A: We have large warehouse for goods. Keep lots of goods in warehouse, so could promise fast delivery.

4. Q:How about the terms of payment?

A:Generally through T/T and Paypal,Western Union also accept.
