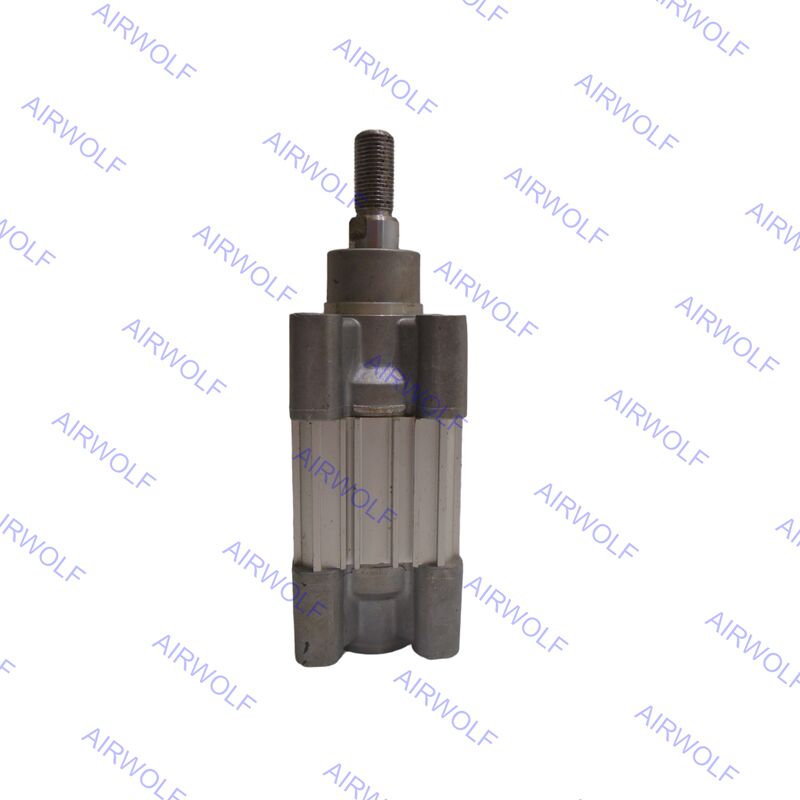

Name: SMC CP96SDB40-500C CP96SDB50-25C CP96SDB50-50C CP96 Series ISO Cylinder
Brand: Airwolf Automation
SKU: CP96SDB40-500C, CP96SDB50-25C, CP96SDB50-50C
Price: 40.00 USD
Availability: InStock

Home Products Pneumatic Air Cylinders

SMC CP96SDB40-500C CP96SDB50-25C CP96SDB50-50C CP96 Series ISO Cylinder

Product Details:

Place of Origin:	Japan, China
Brand Name:	SMC, AIRWOLF or OEM
Certification:	CE, ISO15552
Model Number:	CP96SDB40-500C, CP96SDB50-25C, CP96SDB50-50C

Payment & Shipping Terms:

Minimum Order Quantity:	1 piece
Price:	33-47USD
Packaging Details:	Boxes, Cartons, Pallets, Plastic bags
Delivery Time:	1-7 work days
Payment Terms:	T/T,Western Union,Paypal
Supply Ability:	1000 pcs per week

Contact Now

Detailed Product Description

Item Code:	CP96SDB40-500C, CP96SDB50-25C, CP96SDB50-50C	Cylinder Tube Material:	Aluminum Alloy
Piston Rod Material:	Carbon Steel	Working Pressure:	0.05~1.0MPa
Operating Temperature:	Without Auto Switch: –20 To 70°C With Auto Switch: –10 To 60°C	Bore Size:	40, 50mm
Stroke:	25, 50, 500mm	Feature:	Double Acting, Linear Actuator
Highlight:	SMC CP96 pneumatic cylinder , ISO cylinder with warranty , CP96 Series air cylinder

SMC CP96SDB40-500C CP96SDB50-25C CP96SDB50-50C CP96 Series ISO Cylinder

This series incorporates several advanced design features to improve performance and longevity. A key innovation is the combination cushioning system that uses both air cushioning and bumper cushioning at both stroke ends . This dual approach significantly reduces impact noise and metal-on-metal contact while shortening the cushion stroke length, which can improve cycle times . The cylinders feature precision bushings and reduced piston rod tolerances to minimize deflection and ensure smooth, accurate movement . The lightweight aluminum alloy construction reduces overall weight by up to 15% compared to previous generations, making them suitable for applications where weight is a concern . Additionally, the profile body includes grooves on all four sides for easy installation of position sensors without special tools.

Order Codes:

Item Code	Bore Size (ø mm)	Stroke (mm)	Type
CP96SDB40-500C	40	500	Double acting
CP96SDB50-25C	50	25	Double acting
CP96SDB50-50C	50	50	Double acting
CP96SDB40-500	40	500	Double acting
CP96SDB50-25	50	25	Double acting
CP96SDB50-50	50	50	Double acting

Specifications:

Bore size [mm]		32	40	50	63	80	100	125
Action		Double acting
Fluid		Air
Proof pressure		1.5 MPa
Max. operating pressure		1.0 MPa
Min. operating pressure		0.05 MPa
Ambient and fluid temperatures		Without auto switch: -20 to 70°C (No freezing) With auto switch: -10 to 60°C (No freezing)
Lubrication		Not required (Non-lube)
Operating piston speed		50 to 1000 mm/s						50 to 700 mm/s
Allowable stroke tolerance	Up to 500	+2 0						+1.0 0
	501 to 1000	+2.4 0						+1.4 0
	1001 to 1500	+2.8 0						+1.8 0
	1501 to 2000	+3.2 0						+2.2 0
Cushion		Air cushion on both ends + Bumper cushion						Air cushion
Port size		G 1/8	G 1/4	G 1/4	G 3/8	G 3/8	G 1/2	G 1/2
Mounting		Basic, Axial foot, Rod flange, Head flange, Single clevis, Double clevis, Center trunnion, Adjustable position trunnion

Dimensions:

Quality Standards:

The company for the products are brand new original products, no second-hand and refurbished products, or leave a compensable ten and return the full amount , but the buyer due to our purchase of model error is not responsible for returns, another of the company's sales of products enjoy one year from the date of shipment quality assurance , according to the original quality standards , during warranty with product problems , need confirmation testing by the manufacturer , the supplier to be solved , the demand side due to storage , use, poor maintenance caused by lower-quality product , and not raise objections.

Samples:

You can send a sample to customize the products, we have many engineers can help it; If you want a product of mine, but you are not sure if it's what you want, so you can ask for a sample from me, it will be free.

After-sale serivce:

We can provide a series of after-sale service, such as product introduction, mounting, debugging, technical support and so on.

Competitive Advantage:

Our product features:	Our Services Guarantee:
1) Competitive price	1) Prompt respond (Reply with 24 hours)
2) Good quality	2) Free Samples (Customer pay for the delivery cost)
3) Professional Packaging	4) 1 year warranty
4) Produce according to Customers’ instruction	5) Photos/videos are available during production.
5) None delay shipment	6) Loading inspection, and send loading photos before shipment.
