| Place of Origin: | UK |
| Brand Name: | IMI Norgren, AIRWOLF or OEM |
| Certification: | CE, ISO9001 |

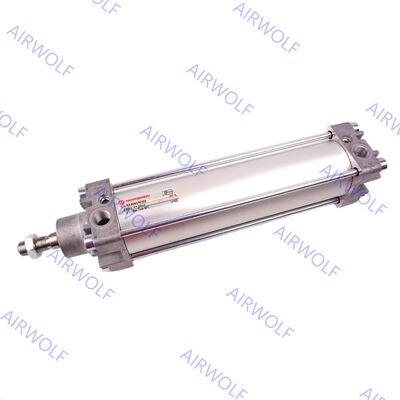

| Model Number: | RA/80100/M/125, RA/80100/M/160, RA/80100/M/200, RA/80100/M/250 |
| Minimum Order Quantity: | 1 piece |
|---|---|
| Price: | 10-186USD |
| Packaging Details: | Boxes, Cartons, Pallets, Plastic bags |
| Delivery Time: | 1-7 work days |
| Payment Terms: | T/T,Western Union,Paypal |
| Supply Ability: | 1000 pcs per week |
| Item Code: | RA/80100/M/125, RA/80100/M/160, RA/80100/M/200, RA/80100/M/250 | Barrel Material: | Anodised Aluminium |
|---|---|---|---|
| Piston Rod Material: | Stainless Steel | Working Pressure: | 1~16 Bar |
| Operating Temperature: | -10~+80℃ | Bore Size: | 100mm |
| Stroke: | 125, 160, 200, 250mm | Feature: | Double Acting, Adjustable Cushioning |
| Highlight: | IMI Norgren double-acting pneumatic cylinder,Pneumatic air cylinder with warranty,Double-acting air cylinder RA series |
||
| Item Code | Bore Size (ø mm) | Stroke (mm) | Type |
| RA/80100/M/125 | 100 | 125 | Round barrel |
| RA/80100/M/160 | 100 | 160 | Round barrel |
| RA/80100/M/200 | 100 | 200 | Round barrel |
| RA/80100/M/250 | 100 | 250 | Round barrel |
| Cylinder ø (mm) | 32 | 40 | 50 | 63 | 80 | 100 | 125 | 160 | 200 | 250 | 320 |
| Profile barrel | ● | ● | ● | ● | ● | ● | ● | ||||
| Round barrel | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● |
| Port size | G1/8 | G1/4 | G1/4 | G3/8 | G3/8 | G1/2 | G1/2 | G3/4 | G3/4 | G1 | G1 |
| Piston rod ø (mm) | 12 | 16 | 20 | 20 | 25 | 25 | 32 | 40 | 40 | 50 | 63 |
| Piston rod thread | M10 x 1,25 | M12 x 1,25 | M16 x 1,5 | M16 x 1,5 | M20 x 1,5 | M20 x 1,5 | M27 x 2 | M36 x 2 | M36 x 2 | M42 x 2 | M48 x 2 |
| Cushion length (mm) | 20 | 22 | 24 | 24 | 26 | 33 | 39 | 43 | 43 | 55 | 60 |
| Cushioning Adaptive cushioning systems "ACS" |
● | ● | ● | ● | ● | ● | ● | ||||
| Cushioning (adjustable cushion) | ● | ● | ● | ● | |||||||
| Initial cushion volume (cm3) | 12,8 | 20,2 | 36 | 64 | 111 | 235 | 427 | 784 | 1273 | 2534 | 4559 |
| Theoretical thrusts at 6 bar outstroke (N) | 482 | 754 | 1178 | 1870 | 3016 | 4710 | 7363 | 12064 | 18840 | 29436 | 48228 |
| Theoretical thrusts at 6 bar instroke (N) | 414 | 633 | 990 | 1680 | 2722 | 4416 | 6882 | 11310 | 18090 | 28236 | 47292 |
| Air consumption at 6 bar outstroke (l/cm) | 0,056 | 0,088 | 0,137 | 0,218 | 0,35 | 0,55 | 0,86 | 1,41 | 2,2 | 3,44 | 5,63 |
| Air consumption at 6 bar instroke (l/cm) | 0,048 | 0,074 | 0,114 | 0,195 | 0,32 | 0,51 | 0,79 | 1,32 | 2,1 | 3,3 | 5,41 |
Airwolf Automation is a world-renowned supply chain management company. A complete supply chain with 500,000 industrial parts can be supplied to 160 countries.
More than a thousand cooperative brands, super supply chain management ability, to ensure the fastest speed to meet your procurement needs.
1. If the products we have in store, we will send it out ASAP after payment.
2. If the products which were customized, we will complete the production within a specified period of time, and send it out the first time, we can promise it.
3. Also we can send by your delivery acount if you want.
4. We have a variety of ways to send goods, usually DHL, Fedex, TNT will be normal ways. If you require use of a courier, we can do it.
