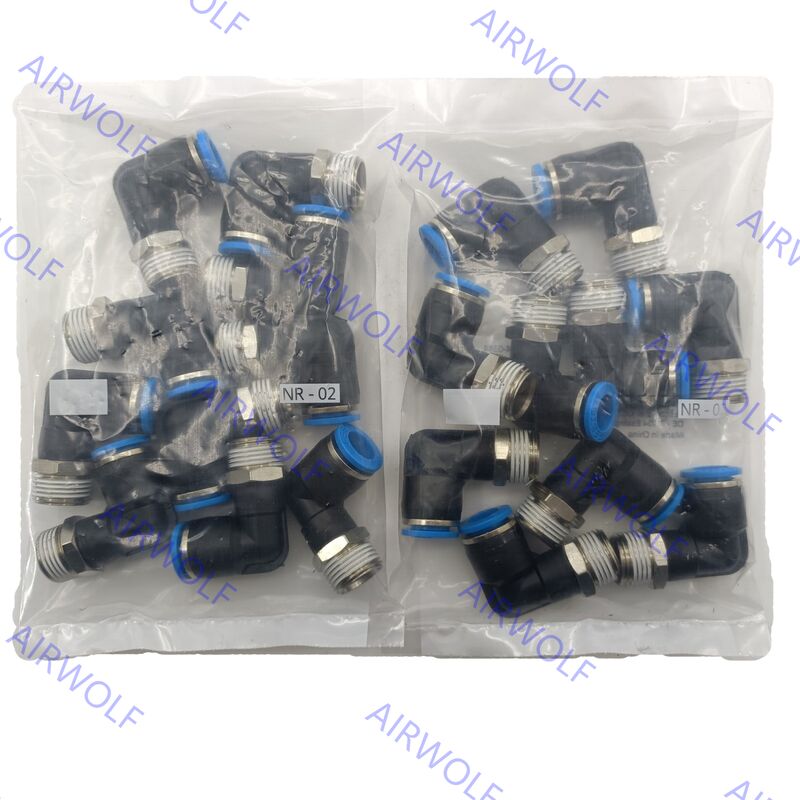

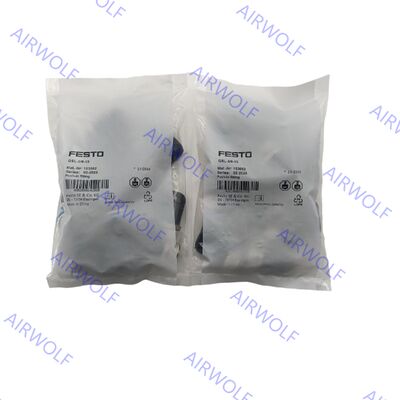

QSL-3/8-6 QSL-3/8-8 QSL-3/8-8-50 QSL-3/8-10 QSL-3/8-10-20 Festo QSL Series L-shape Push-in Fitting
Built to deliver reliable performance in demanding industrial environments, the Festo QSL Fitting features a durable construction with a body made of robust PBT plastic and critical components like the retaining claw made from high-alloy steel. This ensures a secure, vibration-resistant grip on the tubing without causing surface damage. The fitting maintains stable performance with a wide operating pressure of up to 14 bar and a temperature range from -10°C to +80°C, backed by NBR seals for leak-proof connections. This robust design guarantees long-term reliability and minimal maintenance for continuous operation in automated machinery and industrial automation systems.
Order Codes:
| Item Code |
Port Connection1 |
Port Connection2 |
Part no. |
Packing Quantity |
| QSL-3/8-6 |
Male thread R3/8 |
Tubing OD: 6 mm |
190660 |
10 |
| QSL-3/8-8 |
Male thread R3/8 |
Tubing OD: 8 mm |
153050 |
10 |
| QSL-3/8-8-50 |
Male thread R3/8 |
Tubing OD: 8 mm |
130735 |
50 |
| QSL-3/8-10 |
Male thread R3/8 |
Tubing OD: 10 mm |
153052 |
10 |
| QSL-3/8-10-20 |
Male thread R3/8 |
Tubing OD: 10 mm |
130736 |
20 |
Datasheet:
| General technical data – Metric and G male thread |
| Pneumatic connection, port 1 |
Male thread M5 |
Male thread G1/8 |
Male thread G1/4 |
Male thread G3/8 |
Male thread G1/2 |
Male thread G3/4 |
| Design |
Push-pull principle |
| Mounting position |
optional |
| Type of seal on screwed plug |
Sealing ring |
| Nominal torque |
1.2 Nm |
5.4 Nm |
9 Nm |
15.5 Nm |
26 Nm |
20 Nm |
| Tolerance for nominal tightening torque |
± 20% |
| Nominal size |
1.8 ... 2.4 mm |
2.6 ... 6 mm |
3.1 ... 8.5 mm |
4.2 ... 11 mm |
6.4 ... 13 mm |
20 mm |
| Tubing insertion depth 1) |
14.9 ... 17 mm |
14.9 ... 20.7 mm |
17 ... 23.4 mm |
18.1 ... 24.8 mm |
23.3 ... 24.8 mm |
27.54 mm |
| Product weight |
8 ... 13 g |
7.7 ... 31 g |
13 ... 48 g |
20 ... 97 g |
33 ... 158 g |
91.2 g |
1) The indicated tubing insertion depths are reference values and may vary slightly depending on the type.
| General technical data – Male R thread |
| Pneumatic connection, port 1 |
Male thread R1/8 |
Male thread R1/4 |
Male thread R3/8 |
Male thread R1/2 |
| Design |
Push-pull principle |
| Mounting position |
optional |
| Type of seal on screwed plug |
Coating |
| Nominal size |
2.4 ... 6 mm |
2.8 ... 8.5 mm |
4.2 ... 11 mm |
6.3 ... 13 mm |
| Tubing insertion depth ¹) |
11.6 ... 20.7 mm |
11.9 ... 23.4 mm |
17 ... 24.8 mm |
20.2 ... 24.8 mm |
1) The indicated tubing insertion depths are reference values and may vary slightly depending on the type.
| General technical data – Female G thread |
| Pneumatic connection, port 1 |
Female thread G1/8 |
Female thread G1/4 |
Female thread G3/8 |
Female thread G1/2 |
| Design |
Push-pull principle |
| Mounting position |
optional |
| Type of seal on screwed plug |
Coating |
| Nominal size |
2.8 ... 7 mm |
3 ... 11 mm |
5 ... 11 mm |
11 ... 15 mm |
| General technical data – Push-in sleeve |
| Pneumatic connection, port 1 |
Push-in sleeve Ø 4 mm |
Push-in sleeve Ø 6 mm |
Push-in sleeve Ø 8 mm |
Push-in sleeve Ø 10 mm |
Push-in sleeve Ø 12 mm |
Push-in sleeve Ø 16 mm |
| Design |
Push-pull principle |
| Mounting position |
optional |
| Nominal size |
2.5 mm |
2.3 ... 4 mm |
2.3 ... 6 mm |
3.8 ... 7.5 mm |
3.7 ... 9 mm |
7.8 ... 11 mm |
| Pneumatic connection,port 1 |
For tubing outer diameter of 4 mm |
For tubing outside diameter of 6 mm |
For tubing outer diameter of 8 mm |
For tubing outer diameter of 10 mm |
For tubing outer diameter of 12 mm |
For tubing outer diameter of 16 mm |
| Design |
Push-pull principle |
| Mounting position |
optional |
| Type of seal on screwed plug |
— |
Coating |
| Nominal size |
2.8mm |
2.8...4.3mm |
2.8...7mm |
4.3...9mm |
6.2...11mm |
13mm |
| Pneumatic connection, port 2 |
For tubing outside diameter of 4 mm |
For tubing outside diameter of 6 mm |
For tubing outside diameter of 8 mm |
For tubing outside diameter of 10 mm |
For tubing outer diameter of 12 mm |
For tubing outside diameter of 16 mm |
For tubing outside diameter of 22 mm |
| Tubing insertion depth 1) |
14.9 mm |
17 mm |
18.2 mm |
20.7 mm |
23.3 mm |
24.8 mm |
27.54 mm |
1) The indicated tubing insertion depths are reference values and may vary slightly depending on the type.
Operating and environmental conditions:
| Operating pressure complete temperature range |
-0.95 ... 6 bar |
| Temperature-dependent operating pressure |
-0.95 ... 14 bar |
| Note on operating pressure |
Water: max. 0.6 MPa at max. 50°C |
| Operating medium |
Compressed air to ISO 8573-1:2010 [7:-:-]
Water (liquid, ice-free) |
| Note on operating and pilot medium |
Lubricated operation possible
Water: G-thread only possible with sealing ring type OL as additional accessory |
| Ambient temperature |
-10 ... 80°C |
| Corrosion resistance class CRC 1) |
1 - Low corrosion stress |
| Maritime classification |
See certificate |
1) More information www.festo.com/x/topic/kbk
Materials:
| Material housing |
Anodised aluminium, Brass, nickel-plated, PBT |
| Material release ring |
POM |
| Colour of release ring |
Blue |
| Material tubing seal |
NBR |
| Material tubing clamp component |
High-alloy stainless steel |
| Note on materials |
RoHS-compliant |
| Material nut |
Nickel-plated brass |
| Material hollow bolt |
Nickel-plated brass |
| Cleanroom suitability, measured according to ISO 1464414 1) |
Class 4 according to ISO 14644-1Element installed statically, no meaningful evaluation possible according to ISO 14644-1 |
1) For push-in sleeves QSH and blanking plugs QSC-...H, no meaningful evaluation possible according to ISO 14644-1 (components installed statically)
