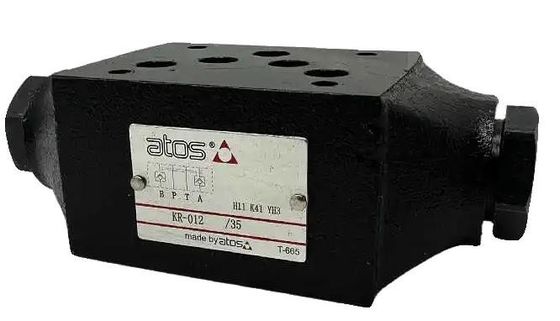

Name: pilot operated ATOS Modular hydraulic check valve ISO 4401 SKR Sizes 06 And 10 SKR-012/4 10S
Brand: Airwolf Automation
SKU: SKR-011 SKR-012/4 SKR-013 SKR-014 KR-011 KR-012 KR-013 KR-014
Price: 106.00 USD
Availability: InStock

Home Products Hydraulic System Components

pilot operated ATOS Modular hydraulic check valve ISO 4401 SKR Sizes 06 And 10 SKR-012/4 10S

Product Details:

Place of Origin:	ITALY CHINA
Brand Name:	ATOS
Model Number:	SKR-011 SKR-012/4 SKR-013 SKR-014 KR-011 KR-012 KR-013 KR-014

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	45-168USD
Packaging Details:	poly bags, box, cartons, pallets
Delivery Time:	3-12working days
Payment Terms:	T/T, Western Union, MoneyGram,Paypal
Supply Ability:	500 pcs per week

Contact Now

Detailed Product Description

Max Pressure:	35Mpa	Structure:	Check Valve
AREA RATIO:	3,3:1	Assembly Position / Location:	Any Position
MTTFd Values According To EN ISO 13849:	150 Years, For Further Details See Technical Table P007	Ambient Temperature:	Standard Execution = -30°C ÷ +70°C /PE Option = -20°C ÷ +70°C /BT Option = -40°C ÷ +70°C
Seals, Recommended Fluid Temperature:	NBR Seals (standard) = -20°C ÷ +80°C, With HFC Hydraulic Fluids = -20°C ÷ +50°C FKM Seals (/PE Option)= -20°C ÷ +80°C HNBR Seals (/BT Option)= -40°C ÷ +60°C, With HFC Hydraulic Fluids = -40°C ÷ +50°C	Recommended Viscosity:	15÷100 Mm2/s - Max Allowed Range 2.8 ÷ 500 Mm2/s
Highlight:	pilot operated hydraulic check valve , ATOS hydraulic check valve , Modular pilot operated check valve

ATOS Modular check valves ISO 4401 SKR sizes 06 and 10 SKR-012/4 10S

pilot operated ATOS Modular hydraulic check valve ISO 4401 SKR Sizes 06 And 10 SKR-012/4 10S

Order Codes:
SKR-011
SKR-012/4
SKR-013
SKR-014
KR-011
KR-012
KR-013
KR-014

How to order:

pilot operated ATOS Modular hydraulic check valve ISO 4401 SKR Sizes 06 And 10 SKR-012/4 10S

SHR, SKR are check valves available in direct or pilot operated models.
SHR-0 = size 06: flow up to 60 l/min, pressure up to 350 bar.
SKR-0 = size 10: flow up to 120 l/min, pressure up to 315 bar.
Valves are designed to operate in hydraulic systems with hydraulic mineral oil or synthetic fluid having similar lubricating characteristics.

Structure: Check valve

pilot operated ATOS Modular hydraulic check valve ISO 4401 SKR Sizes 06 And 10 SKR-012/4 10S
AREA RATIO :3,3:1
Assembly position / location: Any position
MTTFd values according to EN ISO 13849: 150 years, for further details see technical table P007
Ambient temperature:
Standard execution = -30°C ÷ +70°C
/PE option = -20°C ÷ +70°C
/BT option = -40°C ÷ +70°C
Seals, recommended fluid temperature:
NBR seals (standard) = -20°C ÷ +80°C, with HFC hydraulic fluids = -20°C ÷ +50°C
FKM seals (/PE option)= -20°C ÷ +80°C
HNBR seals (/BT option)= -40°C ÷ +60°C, with HFC hydraulic fluids = -40°C ÷ +50°C

Recommended viscosity: 15÷100 mm2/s - max allowed range 2.8 ÷ 500 mm2/s
Max fluid contamination level: ISO4406 class 20/18/15 NAS1638 class 9

pilot operated ATOS Modular hydraulic check valve ISO 4401 SKR Sizes 06 And 10 SKR-012/4 10S
