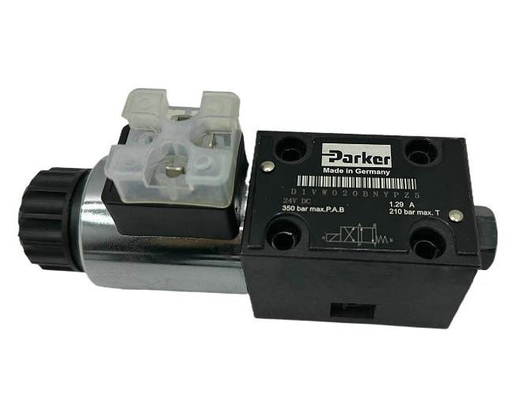

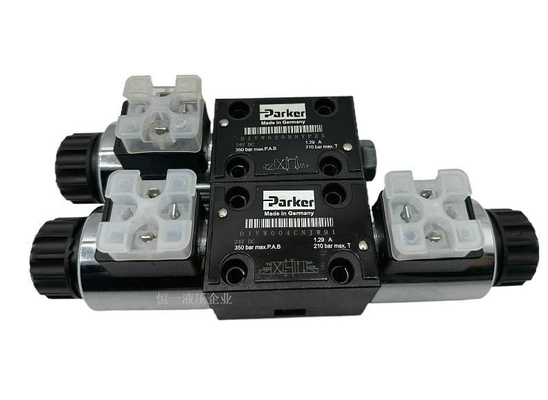

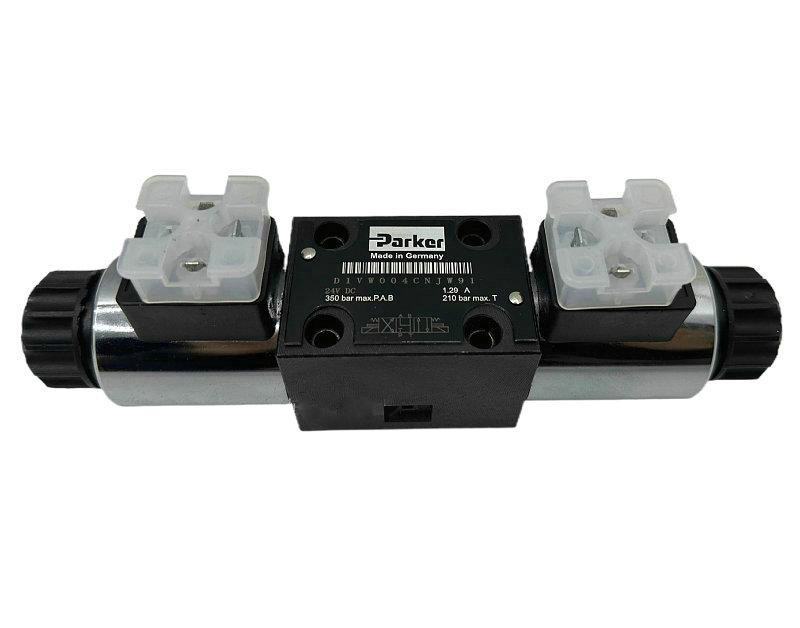

Parker D1VW004 Hydraulic Solenoid Directional Control Valve DC24V

Parker D1VW004 Hydraulic Solenoid Directional Control Valve

General Description
Series D1VW directional control valves are high performance, 4-chamber, direct operated, wet
armature solenoid controlled, 3 or 4-way valves.
They are available in 2 or 3-position and conform to NFPA’s D03, CETOP 3 mounting patterns.

Features:
1.Soft shift available.
2.19 standard spool styles available (for other spools – Consult Factory).
3.Proportional spools.
4.DC surge suppression.
5.Eight electrical connection options.
6.AC & DC lights available (CSA approval for solenoids and lights).
7. Internally ground.
8.Easy access mounting bolts.
9. Waterproof (meets NEMA 4, up to IP67 on some models)
10.Explosion proof
11. CSA approvals

Mounting Pattern : NFPA D03, CETOP 3, NG 6
Mounting Interface: DIN 24340-A6 , ISO 4401-AB-03-4-A ,CETOP R35H 4.2-4-03,

Valve schematic symbols are per NFPA/ANSI standards, providing flow P to A when
energizing solenoid A. Note operators reverse sides for #008 and #009 spools. See installation
information for details. To configure per DIN standards (A coil over A port, B coil over B port)
code valves as D1VHW***.

Valve Weight:
Single Solenoid 1.36 kg (3.0 lbs.)
Double Solenoid 1.6 kg (3.5 lbs.)
Standard Bolt Kit: BK209
Metric Bolt Kit: BKM209

Seal Kit:
Nitrile SKD1VWN91
Fluorocarbon SKD1VWV91

Standard Pressure :
103.5 Bar (1500 PSI) AC
207 Bar (3000 PSI) DC
H* High Pressure, AC only 207 Bar (3000 PSI)
