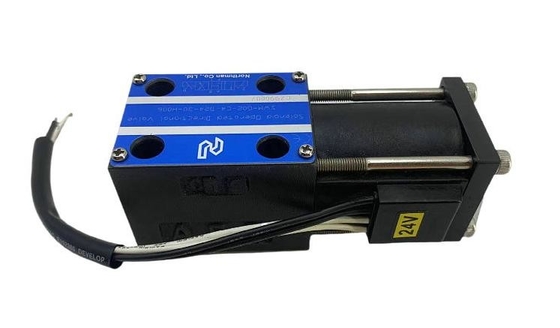

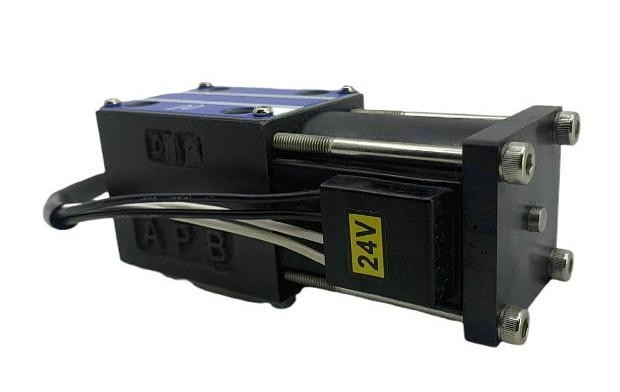

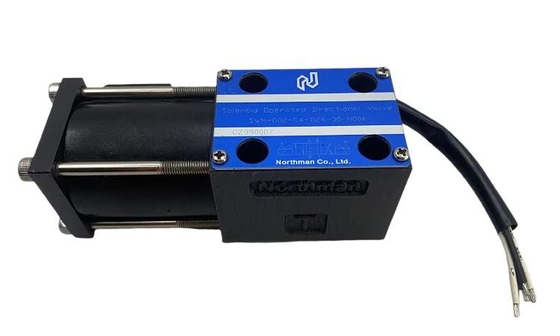

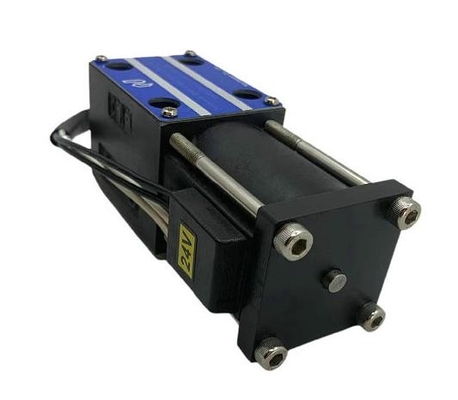

NORTHMAN SWM-G02 SERIES FORK LIFT MOBILE TRANSMISSION HYDRAULIC DIRECTIONAL CONTROL VALVE

Product Details:

Place of Origin:	China Taiwan
Brand Name:	Northman
Model Number:	SWM-G02-C4-D24 SWM-G02-C4-D12

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	35-95USD
Packaging Details:	poly bags, box, cartons, pallets
Delivery Time:	3-12working days
Payment Terms:	T/T, Western Union, MoneyGram,Paypal
Supply Ability:	500 pcs per week

Contact Now

Detailed Product Description

Mounting Pattern:	ISO 03 /NFPA D03 /CETOP 03 / NG 06	Maximum Operating Pressure:	210 Kgf/cm2 (3000 PSI)
Body Material:	Carbon Steel	Insulation:	Class H
Surge Protection:	Option Built-in Diode, Surge Voltage < 1 Voltage	Protection Class:	IP65
Temperature Range:	-25° C To +90° C (-13° F To +194° F)	Hydraulic Fluids:	Mineral Oil, Viscosity 10 - 400 CST
Waterproof Tolerance:	JIS 0203S2 To Immerse In 30 ℃ (86 ℉) Water@ 100mm (3.94 Inch) In 10 Minutes	Maximum Frequency Of Operation:	250 Cycles/minute
Highlight:	Mobile Transmission Hydraulic Directional Control Valve , solenoid operated hydraulic valve

ORTHMAN SWM-G02 SERIES FORK LIFT MOBILE TRANSMISSION HYDRAULIC DIRECTIONAL CONTROL VALVE

Codes:

SWM-G02-C4-D24
SWM-G02-C4-D12

Description 4 Way - 3 Position- Spring Centered Mobile Transmission Hydraulic Valve, Float Center
Spool, ISO 03/NFPA D03/NG6 Mtg Pattern, Push-Pull Coil Series, Push Rod Solenoid End.

NORTHMAN SWM-G02 SERIES FORK LIFT MOBILE TRANSMISSION HYDRAULIC DIRECTIONAL CONTROL VALVE

PERFORMANCE SPECIFICATIONS
Mounting Pattern	ISO 03 /NFPA D03 /CETOP 03 / NG 06
Maximum Operating Pressure	210 kgf/cm2 (3000 PSI)
Maximum Tank Line Back Pressure	70kgf/cm2 (1000 PSI )
Current	2.2A (DC 12V)
Current	1.1A (DC 24V)
Power Consumption	26.4 Watts
Permissible Voltage Change	Duty Cycle
	-10 % ~ +10% Continuous
	+11 % ~ +20% 75% for 5 minutes each energizing
	+21% ~ +30% 50% for 3 minutes each energizing
	-10 % ~ +10% Continuous
	+11 % ~ +20% 75% for 5 minutes each energizing
	+21% ~ +30% 50% for 3 minutes each energizing
Insulation	Class H
Surge Protection	Option Built-in Diode, Surge Voltage < 1 voltage
Permissible Contamination Level	With NAS 1638 Class 12 (ISO 21/18)
Operation Fluid and Temperature	Hydraulic Oil: -25 to +90 ℃ (-13 ℉ to + 194℉)
	Engine Oil: -30℃ to +100℃(-22℉ to +212 ℉ )
	ATF Dexron: -30 ℃ to +130℃ (-22 ℉ to +266 ℉)
Vibration Tolerance	JIS D1601 Type-3 Class-D Stage-90 @ 0.4mm (0.016 inch) displacement @ 9.0G @ 67 HZ*3 Directions
Waterproof Tolerance	JIS 0203S2 To immerse in 30 ℃ (86 ℉) water@ 100mm (3.94 inch) in 10 minutes
Maximum Frequency of Operation	250 cycles/minute
Response Time	≤ 50 msec on ≤ 100 msec off
Corrosion Resistance Treatment	Zinc Phosphate Compound
Weight	1.6 kg (3.5 Lbs.)
