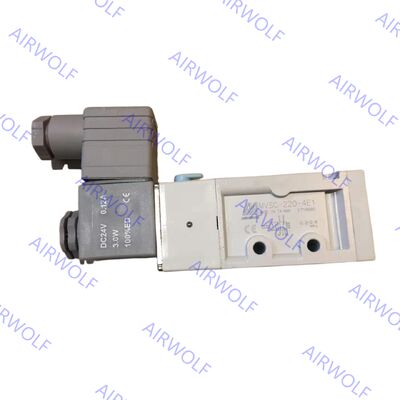

Name: MVSC-220-4E1 MVSC-220-4E2 MVSC-220-4E2C.P.R Mindman 5/2 way 5/3 way Solenoid Valve 1/8" 1/4"
Brand: Airwolf Automation
SKU: MVSC-220-4E1, MVSC-220-4E2, MVSC-220-4E2C, MVSC-220-4E2P, MVSC-220-4E2R
Price: 17.00 USD
Availability: InStock

Home Products Pneumatic Solenoid Valves

MVSC-220-4E1 MVSC-220-4E2 MVSC-220-4E2C.P.R Mindman 5/2 way 5/3 way Solenoid Valve 1/8" 1/4"

Product Details:

Place of Origin:	Taiwan, China or China
Brand Name:	Mindman, AIRWOLF or OEM
Certification:	ISO Standand
Model Number:	MVSC-220-4E1, MVSC-220-4E2, MVSC-220-4E2C, MVSC-220-4E2P, MVSC-220-4E2R

Payment & Shipping Terms:

Minimum Order Quantity:	1 piece
Price:	10-25USD
Packaging Details:	Boxes, Cartons, Pallets, Plastic bags
Delivery Time:	1-7 work days
Payment Terms:	T/T,Western Union,Paypal
Supply Ability:	1000 pcs per week

Contact Now

Detailed Product Description

Item Code:	MVSC-220-4E1, MVSC-220-4E2, MVSC-220-4E2C, MVSC-220-4E2P, MVSC-220-4E2R	Material:	Body: Aluminum, Seal: NBR
Operating Pressure:	0.2~0.8 MPa, 0.3~0.8 MPa(4E2C.P.R)	Working Temperature Range:	-5~+50℃
Port Size:	1/8", 1/4"	Position:	5/2 Way, 5/3 Way
Function:	Directional Control	Operating Voltage:	AC110V, AC220V, AC24V, DC24V, DC12V
Highlight:	Mindman 5/2 way solenoid valve 1/4 inch , MVSC-220 pneumatic solenoid valve with warranty , 5/3 way solenoid valve 1/8 inch

MVSC-220-4E1 MVSC-220-4E2 MVSC-220-4E2C.P.R Mindman 5/2 way 5/3 way Solenoid Valve 1/8" 1/4"

For engineers and procurement specialists, the MVSC-220 series offers a range of models to suit specific application needs. Common variants include the MVSC-220-4E1, a 5/2-way valve often supplied with an AC220V coil, and the MVSC-220-4E2, a 5/2-way bi-stable valve with double solenoids. These valves feature a fast response time of 30 ms (40 ms for 5/3 versions) and a typical flow rate between 710 and 980 Nl/min, ensuring efficient control of airflow to actuators like double-acting cylinders. They are built with an aluminum body and seals compatible with industrial environments, and many models come with a manual override for testing and maintenance, as well as an IP65 protection rating for defense against dust and water jets.

Order Codes:

Item Code	Port Size	Position	Type
MVSC-220-4E1	1/8", 1/4"	5/2 way	Single Solenoid
MVSC-220-4E2	1/8", 1/4"	5/2 way	Double Solenoid
MVSC-220-4E2C	1/8", 1/4"	5/3 way	Double Solenoid
MVSC-220-4E2P	1/8", 1/4"	5/3 way	Double Solenoid
MVSC-220-4E2R	1/8", 1/4"	5/3 way	Double Solenoid

Specification:

Model		3E1	3E2	4E1	4E2	4E2 C.P.R
Bore No.		8A		6A, 8A
Port size		1/4		1/8, 1/4
No. of port		3		5
No. of position		2		2		3
Medium		Air
Operating perssure range		0.2~0.8 MPa				0.3~0.8 MPa
Operating pressure (LP)		0~0.8 MPa
Pilot pressure range (LP)		(0.34×P(*)1)+0.1)~0.5 MPa
Proof pressure		1 MPa
Effective orifice		18 mm²				16 mm²
Reponse time		30 ms				40 ms
Ambient temperature		-5~+50°C (No freezing)
Voltage		AC110V, 220V, 24V (50/60)Hz, DC24V, 12V
Power consumption	standard	AC=4.8/4.4VA, 6/4.9VA, 6.7/5.4VA, DC=2W, 2.5W
	Power saving	DC24V=Start: 2W(*)2) Power saving: 0.5W
Available voltage range		±10%
Insulation class		F class
Weight (g)	Valve	181	294	198	313	352
	Manifold	3B: 56n+77 (*)3) 3M: 71n+114		5B: 61n+61 5M: 137n+157 (*)3)

Dimensions:
