Name: Mindman MVSC-220-3E1-NC MVSC-220-3E1-NO MVSC-220-3E2 3/2 way Solenoid Valve 1/4"
Brand: Airwolf Automation
SKU: MVSC-220-3E1-NC, MVSC-220-3E1-NO, MVSC-220-3E2
Price: 15.00 USD
Availability: InStock

Home Products Pneumatic Solenoid Valves

Mindman MVSC-220-3E1-NC MVSC-220-3E1-NO MVSC-220-3E2 3/2 way Solenoid Valve 1/4"

Product Details:

Place of Origin:	Taiwan, China or China
Brand Name:	Mindman, AIRWOLF or OEM
Certification:	ISO Standand
Model Number:	MVSC-220-3E1-NC, MVSC-220-3E1-NO, MVSC-220-3E2

Payment & Shipping Terms:

Minimum Order Quantity:	1 piece
Price:	14-16USD
Packaging Details:	Boxes, Cartons, Pallets, Plastic bags
Delivery Time:	1-7 work days
Payment Terms:	T/T,Western Union,Paypal
Supply Ability:	1000 pcs per week

Contact Now

Detailed Product Description

Item Code:	MVSC-220-3E1-NC, MVSC-220-3E1-NO, MVSC-220-3E2	Material:	Body: Aluminum, Seal: NBR
Operating Pressure:	0.2~0.8 MPa	Working Temperature Range:	-5~+50℃
Port Size:	1/4"	Position:	3/2 Way
Function:	Directional Control	Operating Voltage:	AC110V, AC220V, AC24V, DC24V, DC12V
Highlight:	Mindman Pneumatic Solenoid Valves , 5/2 Way Pneumatic Solenoid Valves , 3/2 Way Pneumatic Solenoid Valves

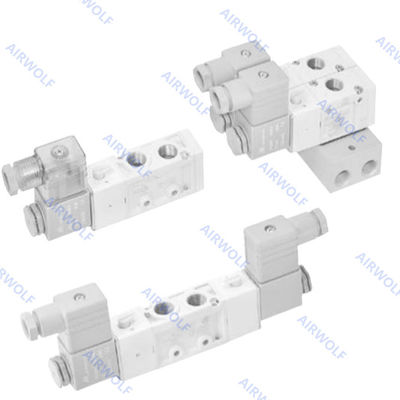

Mindman MVSC-220-3E1-NC MVSC-220-3E1-NO MVSC-220-3E2 3/2 way Solenoid Valve 1/4"

The Mindman MVSC-220 Series is a line of compact, industrially robust solenoid valves designed for precise pneumatic control. A key characteristic of this series is its 22 mm body width, making it suitable for applications where space is a consideration. These valves are versatile, available in several operating configurations including 3-port 2-position (3/2), 5-port 2-position (5/2), and 5-port 3-position (5/3). They are engineered for use with compressed air and operate effectively within a pressure range of 0.2 to 0.8 MPa (with the 5/3 version requiring a minimum of 0.3 MPa). Standard port sizes include Rc1/4 and Rc1/8, and they are offered in both direct piping and manifold mounting styles to fit different system layouts.

Order Codes:

Item Code	Port Size	Position	Type
MVSC-220-3E1-NC	1/4"	3/2 way	Single Solenoid
MVSC-220-3E1-NO	1/4"	3/2 way	Single Solenoid
MVSC-220-3E2	1/4"	3/2 way	Double Solenoid

Specification:

Model		3E1	3E2	4E1	4E2	4E2 C.P.R
Bore No.		8A		6A, 8A
Port size		1/4		1/8, 1/4
No. of port		3		5
No. of position		2		2		3
Medium		Air
Operating perssure range		0.2~0.8 MPa				0.3~0.8 MPa
Operating pressure (LP)		0~0.8 MPa
Pilot pressure range (LP)		(0.34×P(*)1)+0.1)~0.5 MPa
Proof pressure		1 MPa
Effective orifice		18 mm²				16 mm²
Reponse time		30 ms				40 ms
Ambient temperature		-5~+50°C (No freezing)
Voltage		AC110V, 220V, 24V (50/60)Hz, DC24V, 12V
Power consumption	standard	AC=4.8/4.4VA, 6/4.9VA, 6.7/5.4VA, DC=2W, 2.5W
	Power saving	DC24V=Start: 2W(*)2) Power saving: 0.5W
Available voltage range		±10%
Insulation class		F class
Weight (g)	Valve	181	294	198	313	352
	Manifold	3B: 56n+77 (*)3) 3M: 71n+114		5B: 61n+61 5M: 137n+157 (*)3)

Dimensions:

Quality Standards:

The company for the products are brand new original products, no second-hand and refurbished products, or leave a compensable ten and return the full amount , but the buyer due to our purchase of model error is not responsible for returns, another of the company's sales of products enjoy one year from the date of shipment quality assurance , according to the original quality standards , during warranty with product problems , need confirmation testing by the manufacturer , the supplier to be solved , the demand side due to storage , use, poor maintenance caused by lower-quality product , and not raise objections.

Samples:

You can send a sample to customize the products, we have many engineers can help it; If you want a product of mine, but you are not sure if it's what you want, so you can ask for a sample from me, it will be free.

After-sale service:

We can provide a series of after-sale service, such as product introduction, mounting, debugging, technical support and so on.

Competitive Advantage:

Our product features:	Our Services Guarantee:
1) Competitive price	1) Prompt respond (Reply with 24 hours)
2) Good quality	2) Free Samples (Customer pay for the delivery cost)
3) Professional Packaging	3) 1 year warranty
4) Produce according to Customers’ instruction	4) Photos/videos are available during production.
5) None delay shipment	5) Loading inspection, and send loading photos before shipment.
