| Liandong-U-Gu 17-2#, Shengyuan Road 1#, Jiangkou Street, Fenghua District, Ningbo City, Zhejiang Province, China | airwolf@flyautomatic.com |
| Place of Origin: | CHINA |
| Brand Name: | FLY |
| Certification: | CE |
| Model Number: | MHZ2-20D |
| Minimum Order Quantity: | 1 PCS |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Plastic bags, boxes, cartons, Pallets or As customer's requirement |
| Delivery Time: | 1-7 work days |
| Payment Terms: | Western Union, T/T, L/C, Paypal, Credit card |
| Supply Ability: | 1000 pieces per 10 working days |
| Fluid: | AIR | Ambient And Fluid Temperature: | -10 ~60 ℃ |
|---|---|---|---|
| Lubrication: | Not Required | Action: | Double Acting/Single Acting |
| Repeatability: | ø6 To ø25: ±0.01 Mm ø32, ø40: ±0.02 Mm | Max. Operating Frequency: | ø6 To ø25: 180 C.p.m. ø32, ø40: 60 C.p.m. |

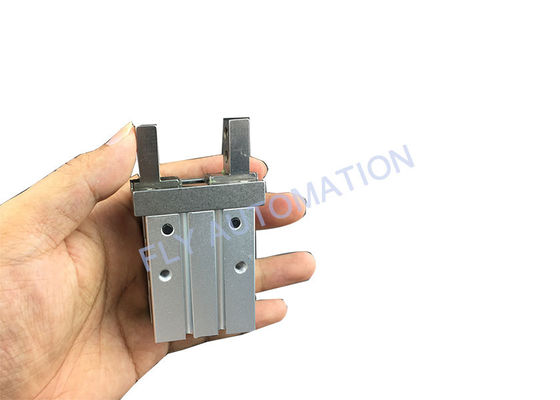

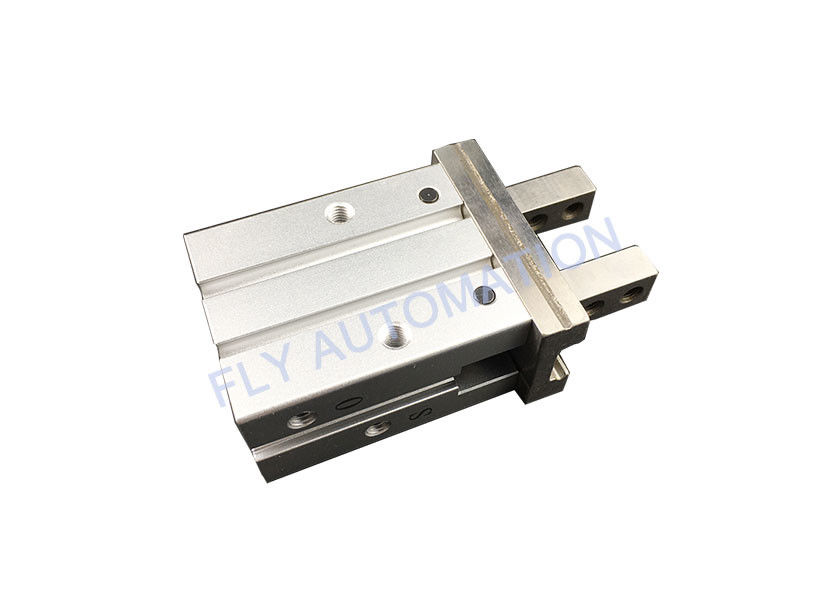

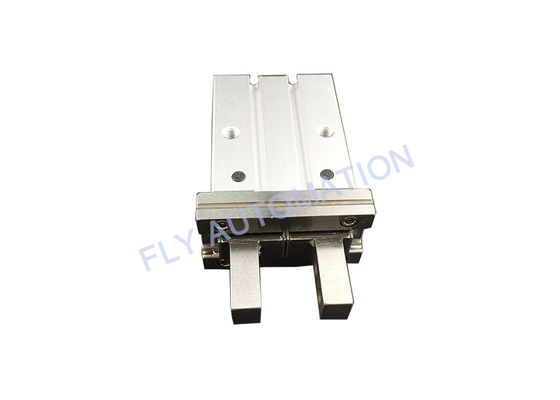

| Highlight: | MHZ2-20D Pneumatic Air Cylinders,Parallel Type Pneumatic Air Cylinders,MHZ2-20D Compact Pneumatic Cylinder |
||
| Specifications | |||
| Fluid | Air | ||
| Operating pressure | Double acting | ø6: 0.15 to 0.7MPa ø10: 0.2 to 0.7MPa ø16 to ø40: 0.1 to 0.7MPa | |
| Single acting | Normally open | ø6: 0.3 to 0.7MPa ø10: 0.35 to 0.7MPa ø16 to ø40: 0.25 to 0.7MPa | |
| Normally closed | |||
| Ambient and fluid temperature | –10 to 60°C | ||
| Repeatability | ø6 to ø25: ±0.01mm ø32, ø40: ±0.02mm | ||
| Maximum operating frequency | ø6 to ø25: 180c.p.m. ø32, ø40: 60c.p.m. | ||
| Lubrication | Not required | ||
| Action | Double acting, Single acting | ||
| Auto switch (option) | Solid state auto switch (3 wire, 2 wire) | ||
![]()
![]()
Construction: MHZ2-6![]()
Component Parts
| No | Description | Materia | Note |
| 1 | Body | Aluminum alloy | Hard anodized |
| 2 | Piston | Stainless steel | |
| 3 | Lever | Stainless steel | Heat treatment |
| 4 | Guide | Stainless steel | Heat treatment |
| 5 | Finger | Stainless steel | Heat treatment |
| 6 | Roller stopper | Stainless steel | |
| 7 | Lever shaft | Stainless steel | Nitriding |
| 8 | Magnet holder | Stainless steel | |
| 9 | Holder | Brass | Electroless nicked plated |
| 10 | Holder lock | Stainless steel | |
| 11 | Cap | Aluminum alloy | Clear anodized |
| 12 | Bumper | Urethane rubber | |
| 13 | Magnet | Nickel plated | |
| 14 | Steel balls | High carbon chrome bearing steel | |
| 15 | Needle roller | High carbon chrome bearing steel | |
| 16 | Type C retaining ring | Carbon steel | Phosphate coated |
| 17 | Exhaust plug | Brass | Electroless nickel plated |
| 18 | Exhaust filter | Polyvinyl formal | |
| 19 | N.O. spring | Stainless steel spring wire | |
| 20 | N.C. spring | Stainless steel spring wire | |
| 21 | Rod seal | NBR | |
| 22 | Piston seal | NBR | |
| 23 | Gasket | NBR | |
| 24 | Gasket | NBR |
![]()
![]()
After-sale Service
One year quality guarantee Policy
We will check the goods quality before shipment. If there are some unexpected problems happen, we hope to solve the problems with buyer through friendly in the following ways:
1, If it is quality problem, buyer can submit argue within 15days after receiving the goods, buyer must provide photos or video and other evidence to seller for identify.
2, Man-made damaged, buyers take full responsibility.
3, Product quality processing program:
1) The buyer return the products for bad quality reasons for one year (not included those damages coursed by shipping or Man-made damaged ). A 15% restocking fee is assessed for any products returned in "used" condition. And then we will send a new product to buyer and pay for the resend shipping cost.
2) If the goods (total price including shipping is less than 10USD) has quality problems, we will resend a new product in buyer next order; if buyer don't plan to make a new order in the near term, buyer can pay the resend shipping cost and ask to resend a new product. If there is an issue with the products, please contact us– we will solve it as soon as we get your email.
