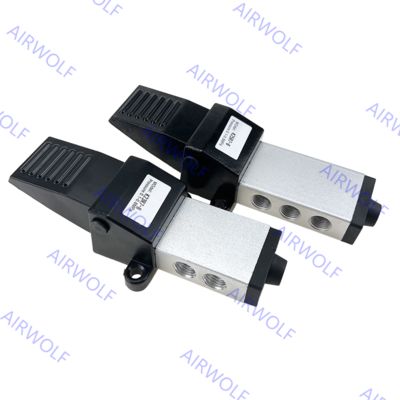

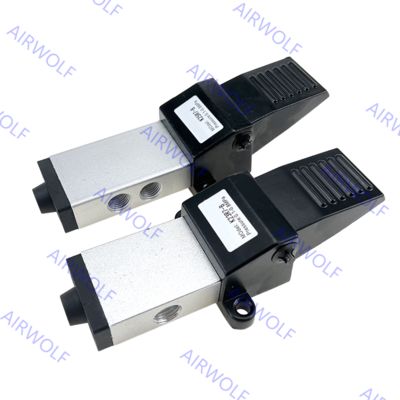

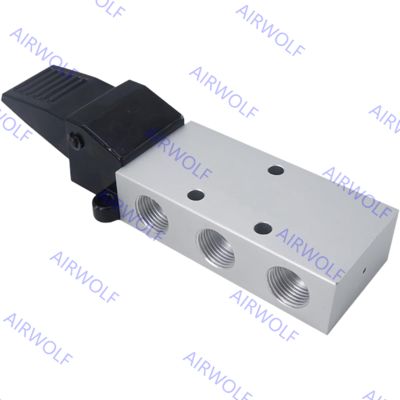

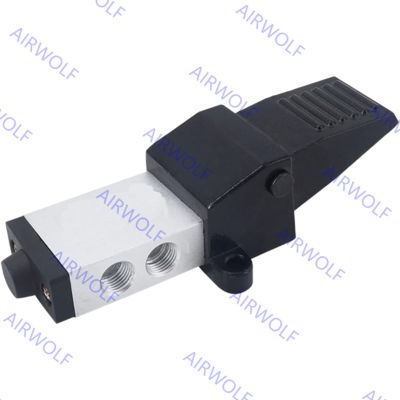

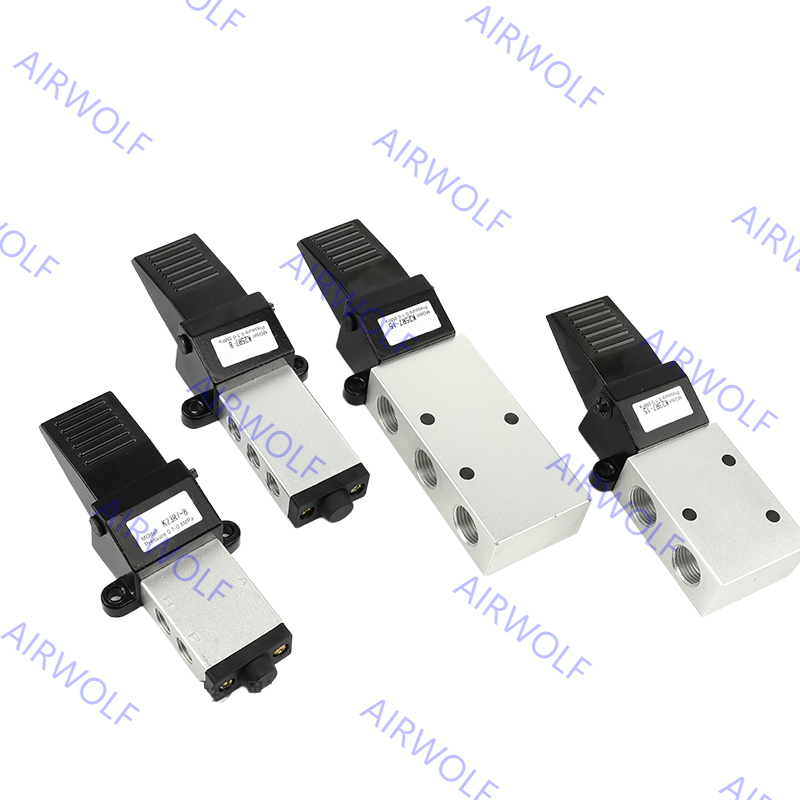

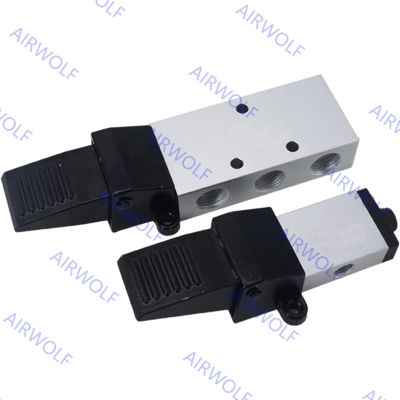

Name: K23R7-8, K25R7-8, K25R7-15 3/2 way, 5/2 way Aluminum Alloy Foot Valve 1/4", 1/2"
Brand: Airwolf Automation
SKU: K23R7-8, K25R7-8, K25R7-15
Price: 7.00 USD
Availability: InStock

Home Products Pneumatic Manual Valve

K23R7-8, K25R7-8, K25R7-15 3/2 way, 5/2 way Aluminum Alloy Foot Valve 1/4", 1/2"

Product Details:

Place of Origin:	China
Brand Name:	AIRWOLF or OEM
Model Number:	K23R7-8, K25R7-8, K25R7-15

Payment & Shipping Terms:

Minimum Order Quantity:	1 piece
Price:	5-9USD
Packaging Details:	Boxes, Cartons, Pallets, Plastic bags
Delivery Time:	1-7 work days
Payment Terms:	T/T,Western Union,Paypal
Supply Ability:	1000 pcs per week

Contact Now

Detailed Product Description

Body Material:	Aluminum Alloy	Seals Material:	NBR
Operating Pressure:	0~0.8MPa	Working Temperature Range:	–10~+55℃
Port Size:	1/4", 1/2"	Position:	3/2 Way, 5/2 Way
Function:	Directional Control	Working Medium:	Dry Compressed Air Filtered By 40μm
Highlight:	aluminum alloy foot valve , 3/2 way pneumatic manual valve , 5/2 way foot valve with warranty

K23R7-8, K25R7-8, K25R7-15 3/2 way, 5/2 way Aluminum Alloy Foot Valve 1/4", 1/2"

Functionally designed for hands-free operation in industrial settings, the K23R7 and K25R7 series foot valves are characterized by their simple reversing mechanism, small size, and robust performance. They share common technical parameters, including an operating temperature range of -5°C to 60°C (or up to 50°C for some models) and require filtered compressed air to function effectively.

A notable feature of these valves is their minimal internal leakage rate, specified as ≤50 cm³/min, which ensures efficient system operation.

When installing these valves, it is crucial to check for transport damage, ensure the correct airflow direction, and keep the components free of dust, with a recommendation to install mufflers on the exhaust ports.

Order Codes:

Type	Port Size	Positions
K23R7-8	1/4"	3/2 way
K25R7-8	1/4"	5/2 way
K25R7-15	1/2"	5/2 way

Specification:

Model	K23R7-8 K25R7-8	K25R7-15
Port size	G1	G1/4
Fluid	Dry Compressed air filtered by 40μm
Operation (Mpa)	0～0.8
Fluid temperature(℃)	-10～55
Ambient temperature	-5～50
Effective area(mm²)	10	20
Leakage rate(cm3min)	≤50
Operating force(kg)	≤80	≤100
Operating life	≥20

Quality Standards:

The company for the products are brand new original products, no second-hand and refurbished products, or leave a compensable ten and return the full amount , but the buyer due to our purchase of model error is not responsible for returns, another of the company's sales of products enjoy one year from the date of shipment quality assurance , according to the original quality standards , during warranty with product problems , need confirmation testing by the manufacturer , the supplier to be solved , the demand side due to storage , use, poor maintenance caused by lower-quality product , and not raise objections.

Samples:

You can send a sample to customize the products, we have many engineers can help it; If you want a product of mine, but you are not sure if it's what you want, so you can ask for a sample from me, it will be free.

After-sale service:

We can provide a series of after-sale service, such as product introduction, mounting, debugging, technical support and so on.

Competitive Advantage:

Our product features:	Our Services Guarantee:
1) Competitive price	1) Prompt respond (Reply with 24 hours)
2) Good quality	2) Free Samples (Customer pay for the delivery cost)
3) Professional Packaging	3) 1 year warranty
4) Produce according to Customers’ instruction	4) Photos/videos are available during production.
5) None delay shipment	5) Loading inspection, and send loading photos before shipment.
