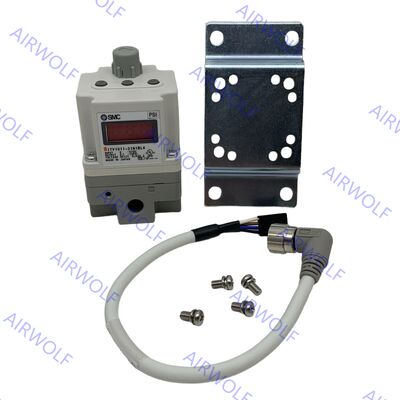

ITV1010-01N1S/L/N ITV1030-01N1S/L/N ITV1050-01N1S/L/N SMC Electro Pneumatic Regulator

Product Details:

Place of Origin:	Japan, China
Brand Name:	SMC, AIRWOLF or OEM
Certification:	IP65
Model Number:	ITV1010-01N1S ITV1030-01N1S ITV1050-01N1S ITV1010-01N1L ITV1030-01N1L ITV1050-01N1L ITV1010-01N1N ITV1030-01N1N ITV1050-01N1N

Payment & Shipping Terms:

Minimum Order Quantity:	1 piece
Price:	80-120USD
Packaging Details:	Boxes, Cartons, Pallets, Plastic bags
Delivery Time:	1-7 work days
Payment Terms:	T/T,Western Union,Paypal
Supply Ability:	1000 pcs per week

Contact Now

Detailed Product Description

Item Code:	ITV1010-01N1S ITV1030-01N1S ITV1050-01N1S ITV1010-01N1L ITV1030-01N1L ITV1050-01N1L ITV1010-01N1N ITV1030-01N1N ITV1050-01N1N	Body Material:	Aluminum
Seals Material:	NBR	Operating Pressure:	0.1~1.0MPa
Working Temperature Range:	0~50°C (No Condensation)	Port Size:	1/8"
Function:	Proportional Pressure Control Via Electrical Signals	Operating Voltage:	24 VDC
Highlight:	SMC electro pneumatic regulator , ITV series pneumatic regulator , pneumatic tube fittings regulator

ITV1010-01N1S/L/N ITV1030-01N1S/L/N ITV1050-01N1S/L/N SMC Electro Pneumatic Regulator

These regulators find specialized applications in semiconductor manufacturing, particularly in CMP (Chemical Mechanical Planarization) equipment where they precisely control polishing head pressure for wafers, LCD glasses, and color filters. They're also essential in thrust control systems, press-fit operations, and precision assembly lines where consistent force application is critical, with the alarm output feature (available in X420 models) providing immediate notification if set pressure isn't reached or maintained for over 5 seconds.

Order Codes:

Item Code	Pressure range	Power supply voltage
ITV1010-01N1S	0.1 MPa	24 VDC
ITV1030-01N1S	0.5 MPa	24 VDC
ITV1050-01N1S	0.9 MPa	24 VDC
ITV1010-01N1L	0.1 MPa	24 VDC
ITV1030-01N1L	0.5 MPa	24 VDC
ITV1050-01N1L	0.9 MPa	24 VDC
ITV1010-01N1N	0.1 MPa	24 VDC
ITV1030-01N1N	0.5 MPa	24 VDC
ITV1050-01N1N	0.9 MPa	24 VDC

Specifications:

Model		ITV101□	ITV103□	ITV105□
		ITV201□	ITV203□	ITV205□
		ITV301□	ITV303□	ITV305□
Min. supply pressure		Set pressure + 0.1 MPa
Max. supply pressure		0.2 MPa	1.0 MPa
Set pressure range		0.005 to 0.1 MPa	0.005 to 0.5 MPa	0.005 to 0.9 MPa
Power supply	Voltage	24 VDC ±10%, 12 to 15 VDC
	Current consumption	Power supply voltage 24 VDC type: 0.12 A or less Power supply voltage 12 to 15 VDC type: 0.18 A or less

Input signal	Current type	4 to 20 mADC, 0 to 20 mADC (Sink type)
	Voltage type	0 to 5 VDC, 0 to 10 VDC
	Preset input	4 points (Negative common), 16 points (No common polarity)
	Digital input	10 bits (Parallel)
Input impedance	Current type	250 Ω or less
	Voltage type	Approx. 6.5 kΩ
	Preset input	Power supply voltage 24 VDC type: Approx. 4.7 kΩ Power supply voltage 12 VDC type: Approx. 2.0 kΩ

	Digital input	Approx. 4.7 kΩ
Output signal (Monitor output)	Analog output	1 to 5 VDC (Output impedance: Approx. 1 kΩ) 4 to 20 mADC (Sink type) (Output impedance: 250 Ω or less) Output accuracy ±6% F.S. or less


	Switch output	NPN open collector output: Max. 30 V, 80 mA PNP open collector output: Max. 80 mA

Linearity		±1% F.S. or less
Hysteresis		0.5% F.S. or less
Repeatability		±0.5% F.S. or less
Sensitivity		0.2% F.S. or less
Temperature characteristics		±0.12% F.S./°C or less
Output pressure display	Accuracy	±2% F.S. ±1 digit or less
	Min. unit	MPa: 0.001, kgf/cm²: 0.01, bar: 0.01, psi: 0.1, kPa: 1
Ambient and fluid temperatures		0 to 50°C (No condensation)
Enclosure		IP65
Weight	ITV10□□	Approx. 250 g (Without options)
	ITV20□□	Approx. 350 g (Without options)
	ITV30□□	Approx. 645 g (Without options)

Construction:

ITV1010-01N1S/L/N ITV1030-01N1S/L/N ITV1050-01N1S/L/N SMC Electro Pneumatic Regulator

Dimensions:

ITV1010-01N1S/L/N ITV1030-01N1S/L/N ITV1050-01N1S/L/N SMC Electro Pneumatic Regulator
