Place of Origin: | China |
Brand Name: | HYDAC |
Model Number: | 1253048,0110 D 005 BH4HC |
Minimum Order Quantity: | 1pc |
---|---|
Price: | EXW USD50-100 |
Packaging Details: | plastic bag, color box |
Delivery Time: | 7-10 working days |
Payment Terms: | T/T, Western Union, Paypal |
Supply Ability: | 500 PCS per month |
Part No: | 1253048 | Brand: | HYDAC |
---|---|---|---|
Product Description: | 0110 D 005 BH4HC | Filterfeinheit: | 005 µm |
Operating Temperature: | Up To 100°C | Element Type: | D |
High Light: | BH4HC Hydraulic System Components,1253048 Hydraulic System Components,Perbunan Hydraulic Circuit Components |
Product description: 0110 D 005 BH4HC
Part no.:: 1253048
Brand: HYDAC
Element Type:D
Filterfeinheit:005 µm
Operating temperature: up to 100°C
Compatible with all conventional operating media
Without bypass valve
Type "D" elements are used in pressure filters, e.g. in the series DF, DFF, DFG, DFP, DFZ, DFDK, LF, MDF.
Product details
Characteristic | Value / Characteristic / Information |
Breite [mm] | 180,00 |
By-pass | no by-pass |
Customer protection | without custom. protection |
Element material | Betamicron high press. |
Element Type | D |
Filterfeinheit | 5 µm |
Further characteristics elem. | no further details |
Höhe [mm] | 63,00 |
Länge [mm] | 63,00 |
sealing material | Perbunan |
Size | 0110 |
HYDAC filter element products are widely used in almost all industries, especially in metallurgical industry, automobile industry, electric power equipment, chemical industry, engineering machinery, paper industry, shipbuilding industry and machine tool manufacturing.
This series of filter cartridges are mainly used to filter solid particles and colloidal substances in the working medium in the hydraulic system to effectively control the pollution degree of the working medium.
Advantage
1.The filter element is made of glass fiber/stainless steel mesh imported from the United States. It has the advantages of convenient sewage discharge, simple structure, small volume, light weight, even filter material, etc. |
2.Compatibility of filter material is applicable to filtration of general hydraulic oil. |
3.The filter element is supported by solid filter materials on both sides and filter materials with strong stability, which conforms to the verification of flow fatigue characteristics of ISO3724/76 hydraulic filter element. |
We have so much models ,such as
Part no | Product description |
1253050 | 0110 D 010 BH4HC |
1253074 | 0240 D 010 BH4HC |
Delivery
1. If the products we have in store, we will send it out ASAP after payment.
2. If the products which were customized, we will complete the production within a specified period of time, and send it out the first time, we can promise it.
3. Also we can send by your delivery acount if you want.
4. We have a variety of ways to send goods, usually DHL, Fedex, TNL will be normal ways. If you require use of a courier, we can do it.

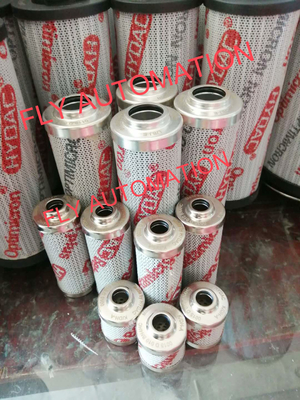

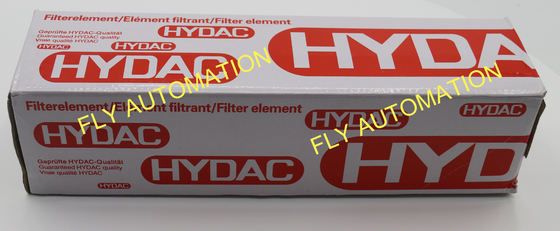

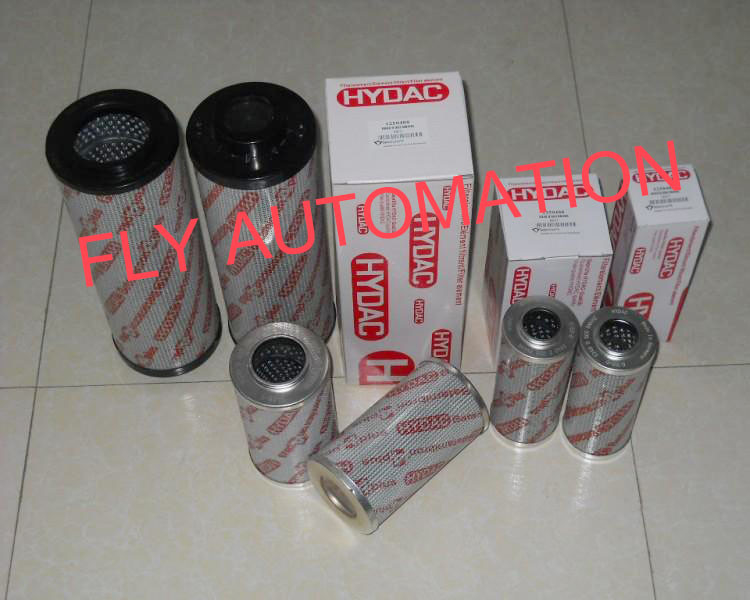

The picture is for reference only, and the specific object shall prevail!
After-sale Service
We can provide a series of after-sale service, such as product introduction, mounting, debugging, technical support and so on.
