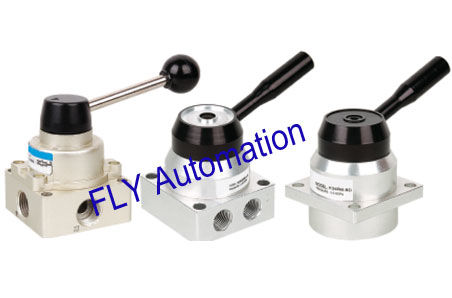

HV-02, HV-03, HV-04, HV400-02, HV400-03, HV400-04 Sunrise Nielsen HV Series 4/3 way Hand Rotary Valve 1/4", 3/8", 1/2"
The HV Series, including models HV-02, HV-03, HV-04, HV400-02, HV400-03, and HV400-04, are 4/3-way (four-port, three-position) manual pneumatic directional control valves. These valves are operated by rotating a handle to switch the flow path of compressed air, making them ideal for controlling double-acting actuators like pneumatic cylinders. Key specifications across the series include a standard operating pressure range of 0 to 0.8 MPa (with some models rated up to 1.0 MPa) and a temperature range of -5°C to 60°C. The model number typically indicates the port size; for example, HV-02 and HV400-02 feature G1/4" ports, HV-03 and HV400-03 feature G3/8" ports, while HV-04 and HV400-04 are equipped with larger G1/2" ports, corresponding to increased flow capacities.
Order Codes:
| Type |
Port Size |
Positions |
| HV-02 |
1/4" |
4/3 way |
| HV-03 |
3/8" |
4/3 way |
| HV-04 |
1/2" |
4/3 way |
| HV400-02 |
1/4" |
4/3 way |
| HV400-03 |
3/8" |
4/3 way |
| HV400-04 |
1/2" |
4/3 way |
Symbol:
Specification:
| Model |
HV-02 |
HV-03 |
HV-04 |
HV400-02 |
HV400-03 |
HV400-04 |
| Valve type |
4/3 Way
|
| Fluid |
Air (To be filtered by 40μm filter element)
|
| Maximum operating pressure |
1~8kgf/cm³
|
| Maximum pressure |
12kgf/cm³
|
| Temperature |
-20~70℃
|
Dimensions:
