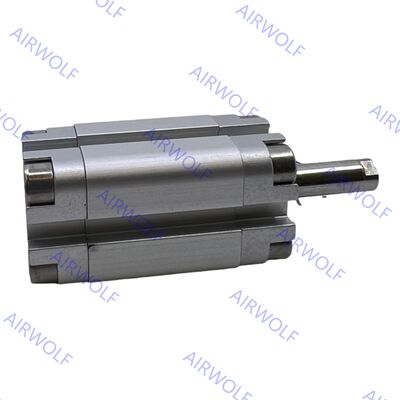

Festo AEVUZ-50-10-P-A AEVUZ-50-10-A-P-A,-15,-20,-25 Single-Acting Compact Cylinder
The Festo AEVUZ series represents a specialized line of single-acting compact cylinders designed with a unique pulling action mechanism, making them ideal for applications requiring precise retraction forces in confined spaces. These cylinders operate on the spring-return principle, where compressed air generates the pushing force, and an internal spring provides the reliable pulling motion for retraction. Key models in this series are engineered with compact dimensions to minimize installation footprint while maintaining high force output. Constructed from durable materials like anodized aluminum alloy and stainless steel piston rods, they support bore sizes ranging from smaller diameters 12mm up to 100mm, with customizable stroke lengths. These cylinders are built for lubrication-free operation, feature magnetic pistons for position sensing, and excel in automated tasks like clamping, ejecting, or lifting where space optimization and fail-safe retraction are critical.
Order Codes:
| Item Code |
Piston (mm) |
Stroke (mm) |
Part no. |
Type |
Item Code |
Piston (mm) |
Stroke (mm) |
Part no. |
Type |
| AEVUZ-50-10-P-A |
50 |
10 |
157236 |
with female thread |
AEVUZ-50-10-A-P-A |
50 |
10 |
157282 |
with male thread |
| AEVUZ-50-15-P-A |
50 |
15 |
157237 |
with female thread |
AEVUZ-50-15-A-P-A |
50 |
15 |
157283 |
with male thread |
| AEVUZ-50-20-P-A |
50 |
20 |
157238 |
with female thread |
AEVUZ-50-20-A-P-A |
50 |
20 |
157284 |
with male thread |
| AEVUZ-50-25-P-A |
50 |
25 |
157239 |
with female thread |
AEVUZ-50-25-A-P-A |
50 |
25 |
157285 |
with male thread |
Datasheet:
| General technical data |
| Piston Ø |
12 |
16 |
20 |
25 |
32 |
40 |
50 |
63 |
80 |
100 |
| Pneumatic connection |
M5 |
M5 |
M5 |
M5 |
G1/8 |
G1/8 |
G1/8 |
G1/8 |
G1/8 |
G1/4 |
| Piston rod end |
Female thread |
M3 |
M4 |
M5 |
M5 |
M6 |
M6 |
M8 |
M8 |
M10 |
M12 |
| Male thread |
M6 |
M8 |
M10x1.25 |
M12x1.25 |
M16x1.5 |
M20x1.5 |
| Operating medium |
Compressed air to ISO 8573-1:2010 [7:4:4] |
| Note on the operating/pilot medium |
Lubricated operation possible (in which case lubricated operation will always be required) |
| Design |
Piston |
| Piston rod |
| Cushioning |
Elastic cushioning rings/plates at both ends |
| Position sensing |
Via proximity switch |
| Type of mounting |
Via through-hole |
| With female thread |
| With accessories |
| Mounting position |
Any |
| Operating conditions |
| Piston Ø |
12 |
16 |
20 |
25 |
32 |
40 |
50 |
63 |
80 |
100 |
| Operating pressure |
Piston rod at one end |
[MPa] |
0.15 ... 1 |
0.13 ... 1 |
0.1 ... 1 |
0.08 ... 1 |
0.06 ... 1 |
| [bar] |
1.5 ... 10 |
1.3 ... 10 |
1 ... 10 |
0.8 ... 10 |
0.6 ... 10 |
| [psi] |
21.8 ... 145 |
18.9 ... 145 |
14.5 ... 145 |
11.6 ... 145 |
8.7 ... 145 |
| Through piston rod S2/S20 |
[MPa] |
0.17 ... 1 |
0.15 ... 1 |
0.14 ... 1 |
0.12 ... 1 |
0.1 ... 1 |
| [bar] |
1.7 ... 10 |
1.5 ... 10 |
1.4 ... 10 |
1.2 ... 10 |
1 ... 10 |
| [psi] |
24.7 ... 145 |
21.8 ... 145 |
20.3 ... 145 |
17.4 ... 145 |
14.5 ... 145 |
| Ambient temperature(1) |
°C |
Basic version: –20 ... +80 S6: 0 ... +120 |
| CRC(2) |
2 |
1) Note operating range of proximity switches
2) More information www.festo.com/x/topic/crc
Materials:
| Compact cylinder |
| [1] |
Cylinder barrel |
Wrought aluminium alloy |
| [2] |
Cover |
Wrought aluminium alloy |
| [3] |
Piston rod |
Ø 12 ... 32 |
High-alloy stainless steel |
| Ø 40 ... 100 |
High-alloy steel |
| [4] |
Flange screws |
Ø 12 ... 16 |
High-alloy stainless steel |
| Ø 20 ... 100 |
Galvanised steel |
| [5] |
Dynamic seals |
Basic version: Polyurethane, S6: Fluoro rubber |
Dimensions:
