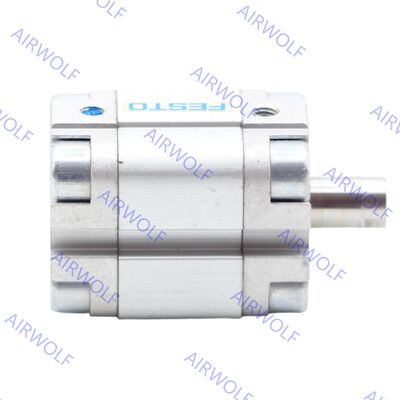

Festo AEVUZ-20-5-P-A AEVUZ-20-5-A-P-A,-10,-15,-20,-25 Single-Acting Compact Cylinder
In practical applications, the Festo AEVUZ pulling cylinders serve as a compact and efficient solution for automation tasks where space constraints and reliable retraction are paramount. Their design allows for seamless use in vertical or horizontal orientations, supporting roles like robotic gripper mechanisms, safety door controls, or precision positioning systems. By combining a small footprint with robust force output, these cylinders help reduce overall system size and energy costs while ensuring operational safety. Industries such as automotive manufacturing, pharmaceuticals, and food processing benefit from their hygienic, low-maintenance design and adaptability to tight spaces, underscoring Festo’s focus on providing versatile components for modern automation challenges.
Order Codes:
| Item Code |
Piston (mm) |
Stroke (mm) |
Part no. |
Type |
Item Code |
Piston (mm) |
Stroke (mm) |
Part no. |
Type |
| AEVUZ-20-5-P-A |
20 |
5 |
157216 |
with female thread |
AEVUZ-20-5-A-P-A |
20 |
5 |
157262 |
with male thread |
| AEVUZ-20-10-P-A |
20 |
10 |
157217 |
with female thread |
AEVUZ-20-10-A-P-A |
20 |
10 |
157263 |
with male thread |
| AEVUZ-20-15-P-A |
20 |
15 |
157218 |
with female thread |
AEVUZ-20-15-A-P-A |
20 |
15 |
157264 |
with male thread |
| AEVUZ-20-20-P-A |
20 |
20 |
157219 |
with female thread |
AEVUZ-20-20-A-P-A |
20 |
20 |
157265 |
with male thread |
| AEVUZ-20-25-P-A |
20 |
25 |
157220 |
with female thread |
AEVUZ-20-25-A-P-A |
20 |
25 |
157266 |
with male thread |
Datasheet:
| General technical data |
| Piston Ø |
12 |
16 |
20 |
25 |
32 |
40 |
50 |
63 |
80 |
100 |
| Pneumatic connection |
M5 |
M5 |
M5 |
M5 |
G1/8 |
G1/8 |
G1/8 |
G1/8 |
G1/8 |
G1/4 |
| Piston rod end |
Female thread |
M3 |
M4 |
M5 |
M5 |
M6 |
M6 |
M8 |
M8 |
M10 |
M12 |
| Male thread |
M6 |
M8 |
M10x1.25 |
M12x1.25 |
M16x1.5 |
M20x1.5 |
| Operating medium |
Compressed air to ISO 8573-1:2010 [7:4:4] |
| Note on the operating/pilot medium |
Lubricated operation possible (in which case lubricated operation will always be required) |
| Design |
Piston |
| Piston rod |
| Cushioning |
Elastic cushioning rings/plates at both ends |
| Position sensing |
Via proximity switch |
| Type of mounting |
Via through-hole |
| With female thread |
| With accessories |
| Mounting position |
Any |
| Operating conditions |
| Piston Ø |
12 |
16 |
20 |
25 |
32 |
40 |
50 |
63 |
80 |
100 |
| Operating pressure |
Piston rod at one end |
[MPa] |
0.15 ... 1 |
0.13 ... 1 |
0.1 ... 1 |
0.08 ... 1 |
0.06 ... 1 |
| [bar] |
1.5 ... 10 |
1.3 ... 10 |
1 ... 10 |
0.8 ... 10 |
0.6 ... 10 |
| [psi] |
21.8 ... 145 |
18.9 ... 145 |
14.5 ... 145 |
11.6 ... 145 |
8.7 ... 145 |
| Through piston rod S2/S20 |
[MPa] |
0.17 ... 1 |
0.15 ... 1 |
0.14 ... 1 |
0.12 ... 1 |
0.1 ... 1 |
| [bar] |
1.7 ... 10 |
1.5 ... 10 |
1.4 ... 10 |
1.2 ... 10 |
1 ... 10 |
| [psi] |
24.7 ... 145 |
21.8 ... 145 |
20.3 ... 145 |
17.4 ... 145 |
14.5 ... 145 |
| Ambient temperature(1) |
°C |
Basic version: –20 ... +80 S6: 0 ... +120 |
| CRC(2) |
2 |
1) Note operating range of proximity switches
2) More information www.festo.com/x/topic/crc
Materials:
| Compact cylinder |
| [1] |
Cylinder barrel |
Wrought aluminium alloy |
| [2] |
Cover |
Wrought aluminium alloy |
| [3] |
Piston rod |
Ø 12 ... 32 |
High-alloy stainless steel |
| Ø 40 ... 100 |
High-alloy steel |
| [4] |
Flange screws |
Ø 12 ... 16 |
High-alloy stainless steel |
| Ø 20 ... 100 |
Galvanised steel |
| [5] |
Dynamic seals |
Basic version: Polyurethane, S6: Fluoro rubber |
Dimensions:
