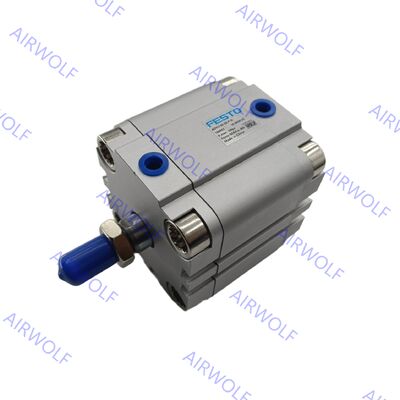

Festo ADVU-50-10-P-A ADVU-50-10-A-P-A,-15,-20,-25,-30,-40,-50,-60,-80 Double-Acting Compact Cylinder
The Festo ADVU series represents a line of high-performance compact cylinders engineered for industrial automation where space optimization is critical. These double-acting pneumatic actuators are characterized by a significant reduction in installation space—up to 50% smaller compared to standard ISO 15552 cylinders—while maintaining robust performance. The series offers a wide range of bore sizes from 12 mm to 125 mm and customizable stroke lengths from 1 mm to 400 mm. Key features include elastic cushioning at both end positions for smooth operation, non-contact position sensing capability via a magnetic piston, and versatile mounting options. Constructed from durable materials like anodized aluminum alloy for the body and high-alloy steel for the piston rod, the ADVU cylinders operate effectively within a pressure range of 0.05 to 1.0 MPa and can withstand ambient temperatures from -20°C to +80°C, making them suitable for demanding applications in packaging, assembly, and material handling.
Order Codes:
| Item Code |
Piston (mm) |
Stroke (mm) |
Part no. |
Type |
Item Code |
Piston (mm) |
Stroke (mm) |
Part no. |
Type |
| ADVU-50-10-P-A |
50 |
10 |
156550 |
with female thread |
ADVU-50-10-A-P-A |
50 |
10 |
156636 |
with male thread |
| ADVU-50-15-P-A |
50 |
15 |
156551 |
with female thread |
ADVU-50-15-A-P-A |
50 |
15 |
156637 |
with male thread |
| ADVU-50-20-P-A |
50 |
20 |
156552 |
with female thread |
ADVU-50-20-A-P-A |
50 |
20 |
156638 |
with male thread |
| ADVU-50-25-P-A |
50 |
25 |
156553 |
with female thread |
ADVU-50-25-A-P-A |
50 |
25 |
156639 |
with male thread |
| ADVU-50-30-P-A |
50 |
30 |
156554 |
with female thread |
ADVU-50-30-A-P-A |
50 |
30 |
156640 |
with male thread |
| ADVU-50-40-P-A |
50 |
40 |
156555 |
with female thread |
ADVU-50-40-A-P-A |
50 |
40 |
156641 |
with male thread |
| ADVU-50-50-P-A |
50 |
50 |
156556 |
with female thread |
ADVU-50-50-A-P-A |
50 |
50 |
156642 |
with male thread |
| ADVU-50-60-P-A |
50 |
60 |
156557 |
with female thread |
ADVU-50-60-A-P-A |
50 |
60 |
156643 |
with male thread |
| ADVU-50-80-P-A |
50 |
80 |
156558 |
with female thread |
ADVU-50-80-A-P-A |
50 |
80 |
156644 |
with male thread |
Datasheet:
| General technical data |
| PistonØ |
12 |
16 |
20 |
25 |
32 |
40 |
50 |
63 |
80 |
100 |
125 |
| Pneumatic connection |
M5 |
M5 |
M5 |
M5 |
G1/8 |
G1/8 |
G1/8 |
G1/8 |
G1/8 |
G1/4 |
G1/4 |
| Piston rod end |
Female thread |
M3 |
M4 |
M5 |
M5 |
M6 |
M6 |
M8 |
M8 |
M10 |
M12 |
M16 |
| Male thread |
M6 |
M8 |
M10x1.25 |
M12x1.25 |
M16x1.5 |
M20x1.5 |
M27x2 |
| Operating medium |
Compressed air to ISO 8573-1:2010 [7:4:4] |
| Note on the operating/pilot medium |
Lubricated operation possible (in which case lubricated operation will always be required) |
| Design |
Piston |
| Piston rod |
| Cushioning |
Elastic cushioning rings/plates at both ends |
| Position sensing |
Via proximity switch |
| Type of mounting |
With through-hole |
– |
| With female thread |
| With accessories |
| Mounting position |
Any |
| Operating conditions |
| Piston Ø |
12 |
16 |
20 |
25 |
32 |
40 |
50 |
63 |
80 |
100 |
125 |
| Operating pressure |
[MPa] |
0.12 ... 1 |
0.1 ... 1 |
0.08 ... 1 |
0.06 ... 1 |
0.05 ... 1 |
| [bar] |
1.2 ... 10 |
1 ... 10 |
0.8 ... 10 |
0.6 ... 10 |
0.5 ... 10 |
| [psi] |
17.4 ... 145 |
14.5 ... 145 |
11.6 ... 145 |
8.7 ... 145 |
7.3 … 145 |
| Ambient temperature(1) |
°C |
–20 ... +80 |
| CRC(2) |
2 |
1) Note operating range of proximity switches
2) More information www.festo.com/x/topic/crc
Materials:
| Compact cylinder |
| [1] |
Cylinder barrel |
Wrought aluminium alloy |
| [2] |
Cover |
Wrought aluminium alloy |
| [3] |
Piston rod |
Ø 12 ... 32 |
High-alloy stainless steel |
| Ø 40 ... 125 |
High-alloy steel |
| [4] |
Flange screws |
Ø 12 ... 16 |
High-alloy stainless steel |
| Ø 20 ... 125 |
Galvanised steel |
| [5] |
Dynamic seals |
Polyurethane |
Dimensions:
