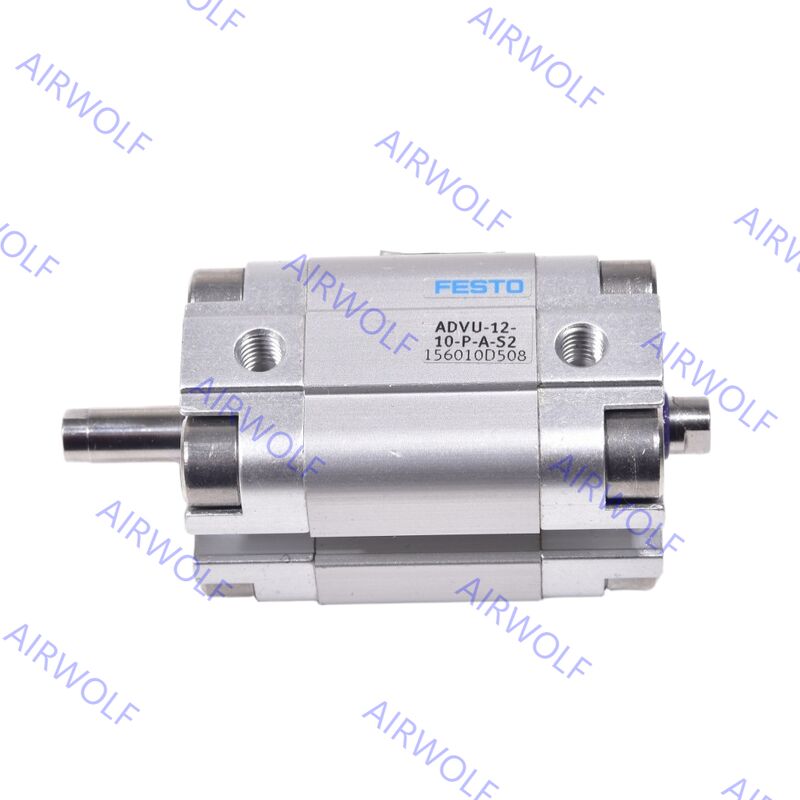

Festo ADVU-12-...-P-A,-16,-20,-25 -S2 -S6 Variable Stroke Double-Acting Compact Cylinder
The technical design of the Festo ADVU compact cylinder emphasizes reliability, ease of use, and integration. It functions as a double-acting actuator, with theoretical forces clearly defined for both advance and return strokes at standard pressures. Position detection can be achieved electrically using sensors like the SM...-8 series or pneumatically with the SMPO. The cylinder is designed for lubrication-free operation with clean, dry compressed air and boasts a corrosion resistance class (CRC) of 2, suitable for environments with moderate stress. With multiple mounting choices (through-hole, with accessories), standard pneumatic connections (M5 or G1/4), and a lightweight build, the ADVU series provides a precise and energy-efficient solution for achieving accurate linear motion in confined spaces across various industries.
Order Codes:
| Item Code |
Piston (mm) |
Stroke (mm) |
Part no. |
Type |
Item Code |
Piston (mm) |
Stroke (mm) |
Part no. |
Type |
| ADVU-12-...-P-A |
12 |
1 ... 200 |
156000 |
with female thread |
ADVU-12-...-A-P-A |
12 |
1 ... 200 |
156040 |
with male thread |
| ADVU-16-...-P-A |
16 |
1 ... 200 |
156001 |
with female thread |
ADVU-16-...-A-P-A |
16 |
1 ... 200 |
156041 |
with male thread |
| ADVU-20-...-P-A |
20 |
1 ... 200 |
156002 |
with female thread |
ADVU-20-...-A-P-A |
20 |
1 ... 200 |
156042 |
with male thread |
| ADVU-25-...-P-A |
25 |
1 ... 200 |
156003 |
with female thread |
ADVU-25-...-A-P-A |
25 |
1 ... 200 |
156043 |
with male thread |
| ADVU-12-...-P-A-S2 |
12 |
1 ... 200 |
156010 |
with female thread, Through piston rod
|
ADVU-12-...-A-P-A-S2 |
12 |
1 ... 200 |
156050 |
with male thread, Through piston rod |
| ADVU-16-...-P-A-S2 |
16 |
1 ... 200 |
156011 |
with female thread, Through piston rod |
ADVU-16-...-A-P-A-S2 |
16 |
1 ... 200 |
156051 |
with male thread, Through piston rod |
| ADVU-20-...-P-A-S2 |
20 |
1 ... 200 |
156012 |
with female thread, Through piston rod |
ADVU-20-...-A-P-A-S2 |
20 |
1 ... 200 |
156052 |
with male thread, Through piston rod |
| ADVU-25-...-P-A-S2 |
25 |
1 ... 200 |
156013 |
with female thread, Through piston rod |
ADVU-25-...-A-P-A-S2 |
25 |
1 ... 200 |
156053 |
with male thread, Through piston rod |
| ADVU-12-...-P-A-S6 |
12 |
1 ... 200 |
156030 |
with female thread, 120°C Heat-resistant |
ADVU-12-...-A-P-A-S6 |
12 |
1 ... 200 |
156090 |
with male thread, 120°C Heat-resistant |
| ADVU-16-...-P-A-S6 |
16 |
1 ... 200 |
156031 |
with female thread, 120°C Heat-resistant |
ADVU-16-...-A-P-A-S6 |
16 |
1 ... 200 |
156091 |
with male thread, 120°C Heat-resistant |
| ADVU-20-...-P-A-S6 |
20 |
1 ... 200 |
156032 |
with female thread, 120°C Heat-resistant |
ADVU-20-...-A-P-A-S6 |
20 |
1 ... 200 |
156092 |
with male thread, 120°C Heat-resistant |
| ADVU-25-...-P-A-S6 |
25 |
1 ... 200 |
156033 |
with female thread, 120°C Heat-resistant |
ADVU-25-...-A-P-A-S6 |
25 |
1 ... 200 |
156093 |
with male thread, 120°C Heat-resistant |
Datasheet:
| General technical data |
| PistonØ |
12 |
16 |
20 |
25 |
32 |
40 |
50 |
63 |
80 |
100 |
125 |
| Pneumatic connection |
M5 |
M5 |
M5 |
M5 |
G1/8 |
G1/8 |
G1/8 |
G1/8 |
G1/8 |
G1/4 |
G1/4 |
| Piston rod end |
Female thread |
M3 |
M4 |
M5 |
M5 |
M6 |
M6 |
M8 |
M8 |
M10 |
M12 |
M16 |
| Male thread |
M6 |
M8 |
M10x1.25 |
M12x1.25 |
M16x1.5 |
M20x1.5 |
M27x2 |
| Operating medium |
Compressed air to ISO 8573-1:2010 [7:4:4] |
| Note on the operating/pilot medium |
Lubricated operation possible (in which case lubricated operation will always be required) |
| Design |
Piston |
| Piston rod |
| Cushioning |
Elastic cushioning rings/plates at both ends |
| Position sensing |
Via proximity switch |
| Type of mounting |
With through-hole |
– |
| With female thread |
| With accessories |
| Mounting position |
Any |
| Operating conditions |
| Piston Ø |
12 |
16 |
20 |
25 |
32 |
40 |
50 |
63 |
80 |
100 |
125 |
| Operating pressure |
Piston rod at one end |
[MPa] |
0.12 ... 1 |
0.1 ... 1 |
0.08 ... 1 |
0.06 ... 1 |
0.05 ... 1 |
| [bar] |
1.2 ... 10 |
1 ... 10 |
0.8 ... 10 |
0.6 ... 10 |
0.5 ... 10 |
| [psi] |
17.4 ... 145 |
14.5 ... 145 |
11.6 ... 145 |
8.7 ... 145 |
7.3 … 145 |
| Through piston rod S2/S20 |
[MPa] |
0.15 ... 1 |
0.13 ... 1 |
0.12 ... 1 |
0.1 ... 1 |
0.08 ... 1 |
— |
| [bar] |
1.5 ... 10 |
1.3 ... 10 |
1.2 ... 10 |
1 ... 10 |
0.8 ... 10 |
— |
| [psi] |
21.8 ... 145 |
18.9 ... 145 |
17.4 ... 145 |
14.5 ... 145 |
11.6 ... 145 |
— |
| Ambient temperature(1) |
°C |
–20 ... +80 |
| CRC(2) |
2 |
1) Note operating range of proximity switches
2) More information www.festo.com/x/topic/crc
Materials:
| Compact cylinder |
| [1] |
Cylinder barrel |
Wrought aluminium alloy |
| [2] |
Cover |
Wrought aluminium alloy |
| [3] |
Piston rod |
Ø 12 ... 32 |
High-alloy stainless steel |
| Ø 40 ... 125 |
High-alloy steel |
| [4] |
Flange screws |
Ø 12 ... 16 |
High-alloy stainless steel |
| Ø 20 ... 125 |
Galvanised steel |
| [5] |
Dynamic seals |
Basic version: Polyurethane, S6: Fluoro rubber |
