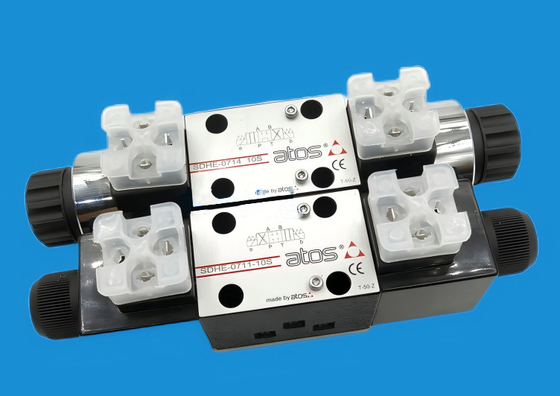

Name: ATOS DC24V ISO4401 Hydraulic Solenoid Directional Control Valve SDHE-0710 10S SDHE-0718 10S
Brand: FLY AUTOMATION
SKU: SDHE-0710 10S SDHE-0711 10S SDHE-0713 10S SDHE-0715 10S SDHE-0717 10S SDHE-0714 10S SDHE-0716 10S SDHE-0718 10S
Price: 106.00 USD
Availability: InStock

Home Products Hydraulic System Components

ATOS DC24V ISO4401 Hydraulic Solenoid Directional Control Valve SDHE-0710 10S SDHE-0718 10S

Product Details:

Place of Origin:	ITALY CHINA
Brand Name:	ATOS
Model Number:	SDHE-0710 10S SDHE-0711 10S SDHE-0713 10S SDHE-0715 10S SDHE-0717 10S SDHE-0714 10S SDHE-0716 10S SDHE-0718 10S

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	45-168USD
Packaging Details:	poly bags, box, cartons, pallets
Delivery Time:	3-12working days
Payment Terms:	T/T, Western Union, MoneyGram,Paypal
Supply Ability:	500 pcs per week

Contact Now

Detailed Product Description

Max Pressure:	35Mpa	Allowable Tank Port Back Pressure:	20. 6MPa
Coil Type:	D24:DC24V A24:AC24V A11: AC110V A38:AC380V RA1:AC110V RA2:AC220V D12: DC12V A22:AC220V	Terminations:	DG: DIN43650 DL: Lead Wires(2)
Insulation Class:	H 180℃	Voltage:	90 %V At Rated Voltage
Power Consumption:	DC 28-31W AC: 19-26W	Fluids-Temperatures:	-40-120℃
Mounting Surface:	ISO 4401 Size 10	Protection Degree To DIN EN 60529:	IP65
Highlight:	ATOS hydraulic solenoid directional control valve , DC24V hydraulic solenoid directional control valve , solenoid 24v hydraulic directional control valve

ATOS Hydraulic DC24V ISO4401 Solenoid directional valves type SDHE-0710 10S SDHE-0718 10S

Order Codes:
SDHE-0710 10S
SDHE-0711 10S
SDHE-0713 10S
SDHE-0715 10S
SDHE-0717 10S
SDHE-0714 10S
SDHE-0716 10S
SDHE-0718 10S

direct operated, high performances, ISO 4401 size 06

ATOS DC24V ISO4401 Hydraulic Solenoid Directional Control Valve SDHE-0710 10S SDHE-0718 10S

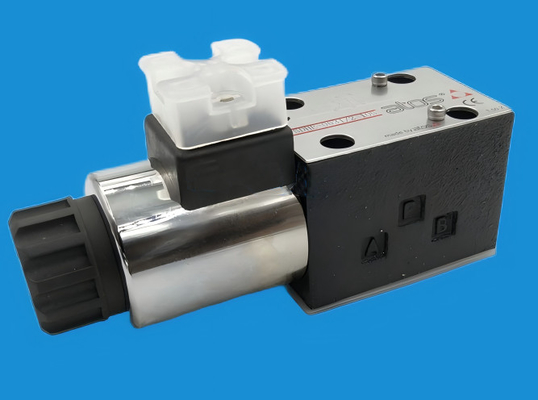

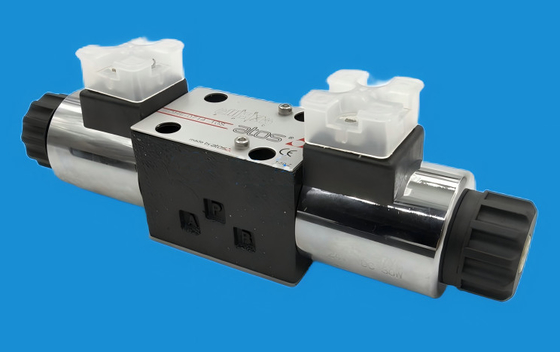

Spool type, two or three position direct operated valves with high performance
threaded solenoids certified according the North American standard cURUS.

ATOS DC24V ISO4401 Hydraulic Solenoid Directional Control Valve SDHE-0710 10S SDHE-0718 10S
Solenoids ② are made by:
● wet type screwed tube, different for AC and DC power supply, with integrated manual override pin ④
● interchangeable coils, specific for AC or DC power supply, easily replaceable without tools - see section 5 for available voltages
Standard coils protection IP65 optional coils with IP67 AMP Junior Timer, Deutsch
or lead wire connections.
Wide range of interchangeable spools ①,
see section 2.
The valve body ③ is 3 chamber type
made by shell-moulding casting with wide
internal passages ensuring low pressure drops.

Any position
Roughness index Ra 0,4 - flatness ratio 0,01/100 (ISO 1101)
150 years, for further details see technical table P007
Standard execution = -30°C +70°C /PE option = -20°C+ +70°C /BT option = -40°C+ +70°C
NBR seals (standard)= -20°C十+80°C, with HFC hydraulic fluids = -20°C+ +50°C FKM seals (/PE option)= -20°C一+80°C HNBR seals (/BT option) = -40°C + +60°C, with HFC hydraulic fluids = -40°C + +50°C
15:100 mm?/s - max allowed range 2.8 + 500 mm/s
ISO4406 class 20/18/15 NAS1638 class 9, see also fiter section at www .atos .com or KTF catalog
Suitable seals type	Classification	Ref. Standard
NBR, FKM, HNBR	HL, HLP, HLPD, HVLP, HVLPD	DIN 51524
FKM	HFDU, HFDR	ISO 12922
NBR, HNBR	HFC
As shown in the symbols of table
Ports P,A,B: 350 bar; PortT 210 bar for DC version; 160 bar for AC version
See diagrams Q/op at section
80 1/min, see operating limits at section

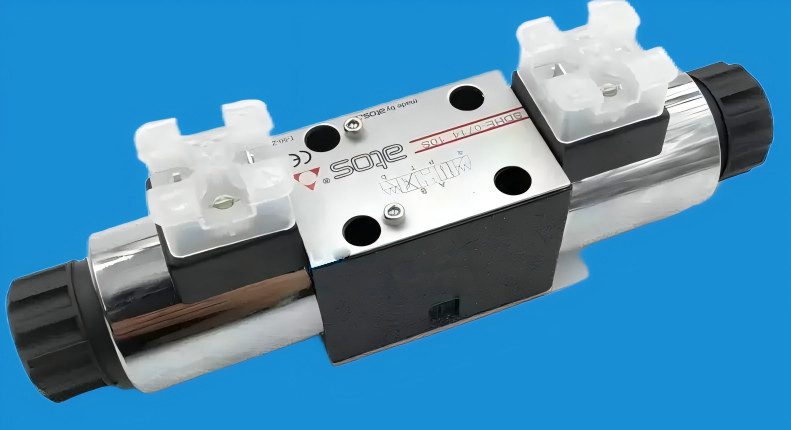

ATOS DC24V ISO4401 Hydraulic Solenoid Directional Control Valve SDHE-0710 10S SDHE-0718 10S

Mounting surface: ISO 4401 size 06
Max flow: 80 l/min
Max pressure: 350 bar

MAIN CHARACTERISTICS, SEALS AND HYDRAULIC
