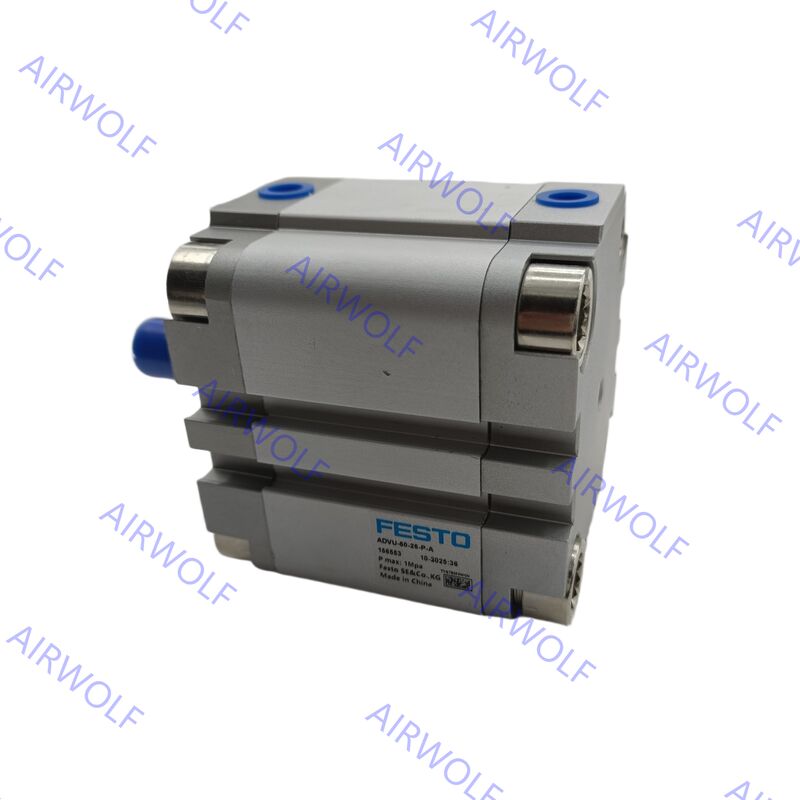

ADVU-63-10-P-A ADVU-63-10-A-P-A,-15,-20,-25,-30,-40,-50,-60,-80 Festo Double-Acting Compact Cylinder
From an application and versatility perspective, the ADVU series is designed to meet diverse automation needs through its extensive range of derivative types. These include options like the S2 variant with a double-ended piston rod, the S6 models with high-temperature seals capable of withstanding up to 120°C. The cylinders feature a streamlined design with grooves on three sides for easy integration of proximity sensors that sit flush with the surface. This design, coupled with the fact that all screws have internal threads for accessory mounting, simplifies installation and maintenance. The ADVU's combination of a compact footprint, high force output, and flexibility in configuration makes it an indispensable component for engineers designing efficient and reliable pneumatic systems in robotics, electronics assembly, and medical equipment manufacturing.
Order Codes:
| Item Code |
Piston (mm) |
Stroke (mm) |
Part no. |
Type |
Item Code |
Piston (mm) |
Stroke (mm) |
Part no. |
Type |
| ADVU-63-10-P-A |
63 |
10 |
156559 |
with female thread |
ADVU-63-10-A-P-A |
63 |
10 |
156645 |
with male thread |
| ADVU-63-15-P-A |
63 |
15 |
156560 |
with female thread |
ADVU-63-15-A-P-A |
63 |
15 |
156646 |
with male thread |
| ADVU-63-20-P-A |
63 |
20 |
156561 |
with female thread |
ADVU-63-20-A-P-A |
63 |
20 |
156647 |
with male thread |
| ADVU-63-25-P-A |
63 |
25 |
156562 |
with female thread |
ADVU-63-25-A-P-A |
63 |
25 |
156648 |
with male thread |
| ADVU-63-30-P-A |
63 |
30 |
156563 |
with female thread |
ADVU-63-30-A-P-A |
63 |
30 |
156649 |
with male thread |
| ADVU-63-40-P-A |
63 |
40 |
156564 |
with female thread |
ADVU-63-40-A-P-A |
63 |
40 |
156650 |
with male thread |
| ADVU-63-50-P-A |
63 |
50 |
156565 |
with female thread |
ADVU-63-50-A-P-A |
63 |
50 |
156651 |
with male thread |
| ADVU-63-60-P-A |
63 |
60 |
156566 |
with female thread |
ADVU-63-60-A-P-A |
63 |
60 |
156652 |
with male thread |
| ADVU-63-80-P-A |
63 |
80 |
156567 |
with female thread |
ADVU-63-80-A-P-A |
63 |
80 |
156653 |
with male thread |
Datasheet:
| General technical data |
| PistonØ |
12 |
16 |
20 |
25 |
32 |
40 |
50 |
63 |
80 |
100 |
125 |
| Pneumatic connection |
M5 |
M5 |
M5 |
M5 |
G1/8 |
G1/8 |
G1/8 |
G1/8 |
G1/8 |
G1/4 |
G1/4 |
| Piston rod end |
Female thread |
M3 |
M4 |
M5 |
M5 |
M6 |
M6 |
M8 |
M8 |
M10 |
M12 |
M16 |
| Male thread |
M6 |
M8 |
M10x1.25 |
M12x1.25 |
M16x1.5 |
M20x1.5 |
M27x2 |
| Operating medium |
Compressed air to ISO 8573-1:2010 [7:4:4] |
| Note on the operating/pilot medium |
Lubricated operation possible (in which case lubricated operation will always be required) |
| Design |
Piston |
| Piston rod |
| Cushioning |
Elastic cushioning rings/plates at both ends |
| Position sensing |
Via proximity switch |
| Type of mounting |
With through-hole |
– |
| With female thread |
| With accessories |
| Mounting position |
Any |
| Operating conditions |
| Piston Ø |
12 |
16 |
20 |
25 |
32 |
40 |
50 |
63 |
80 |
100 |
125 |
| Operating pressure |
[MPa] |
0.12 ... 1 |
0.1 ... 1 |
0.08 ... 1 |
0.06 ... 1 |
0.05 ... 1 |
| [bar] |
1.2 ... 10 |
1 ... 10 |
0.8 ... 10 |
0.6 ... 10 |
0.5 ... 10 |
| [psi] |
17.4 ... 145 |
14.5 ... 145 |
11.6 ... 145 |
8.7 ... 145 |
7.3 … 145 |
| Ambient temperature(1) |
°C |
–20 ... +80 |
| CRC(2) |
2 |
1) Note operating range of proximity switches
2) More information www.festo.com/x/topic/crc
Materials:
| Compact cylinder |
| [1] |
Cylinder barrel |
Wrought aluminium alloy |
| [2] |
Cover |
Wrought aluminium alloy |
| [3] |
Piston rod |
Ø 12 ... 32 |
High-alloy stainless steel |
| Ø 40 ... 125 |
High-alloy steel |
| [4] |
Flange screws |
Ø 12 ... 16 |
High-alloy stainless steel |
| Ø 20 ... 125 |
Galvanised steel |
| [5] |
Dynamic seals |
Polyurethane |
Dimensions:
