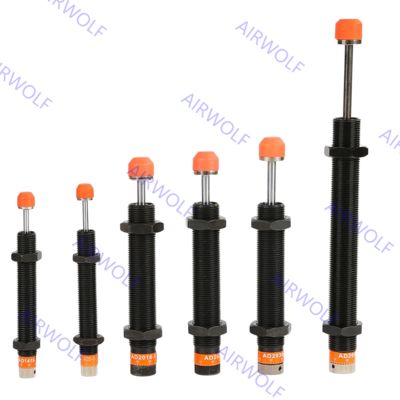

AD1410, AD1425, AD1612, AD2016 CJAC AD Series Adjustable Damper Shock Absorber

AD1410, AD1425, AD1612, AD2016 CJAC AD Series Adjustable Damper Shock Absorber

Product Details:
Place of Origin: Taiwan, China, China
Brand Name: CJAC, AIRWOLF or OEM
Model Number: AD1410, AD1425, AD1612, AD2016
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: 4-7USD
Packaging Details: Boxes, Cartons, Pallets, Plastic bags
Delivery Time: 1-7 work days
Payment Terms: T/T,Western Union,Paypal
Supply Ability: 1000 pcs per week
Contact Now
Detailed Product Description
Item Code: AD1410, AD1425, AD1612, AD2016 Outer Pipe Material: AISI1215 And STKM11A Oxidized Black,nickel Plating Treatment
Piston Rod Material: Hard Chromium Plating Treatment Working Temperature Range: -10~+80℃
Function: Impact Protection, Shock Absorption Speed Range: 3.0~3.5m/s
Highlight:

AISI1215 and STKM11A Material Adjustable Damper Shock Absorber

,

Working Temperature Range -10~+80℃ Hydraulic Shock Absorber

,

Speed Range 0.3~4.5m/s Pneumatic Shock Absorber

AD1410, AD1425, AD1612, AD2016 CJAC AD Series Adjustable Damper Shock Absorber

The AD series is designed with an adjustable structure. When encountered with different loading, and different impact speeds, users can adjust the adjustment knob to modify the most appropriate scale, and perfectly absorb the energy generated by the objects. Compared to the AC series, the AD series has a higher energy absorption capacity and a larger range of applications.

Order Code:


Model Thread Stroke (mm) A (mm) B (mm) C (mm) D (mm) E (mm) F (mm) G (mm) H (mm) I (mm) J (mm) K (mm) Illustration
AD1410 M14x1.5 10 109.7 88.5 12 4 11.2 72.5 19 5 2
AD1425 M14x1.5 25 153.2 117 12 4 11.2 101 19 5 2
AD1612 M16x1.5 12 99 76.5 14 4 11.2 54.9 19 6 2
AD2016 M20x1.5 16 148.3 117 17.8 6 15.3 101 26 7 2

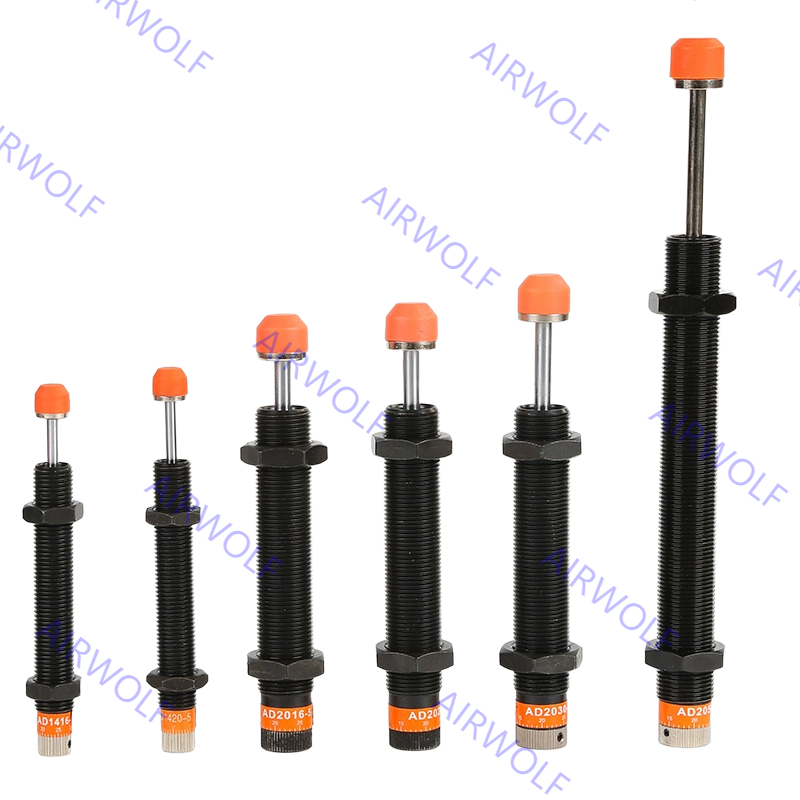

AD1410, AD1425, AD1612, AD2016 CJAC AD Series Adjustable Damper Shock Absorber

Specifications:


Model Stroke (mm) Maximum absorbed energy Nm(Er) Absorbed energy per hour Nm(Er) Maximum effective weight kg(Me) Highest impact speed m/s(v) Weight (g)
AD1410 10 20 25,000 80 3.0 90
AD1425 25 28 27,500 140 3.0 194
AD1612 12 22 27,500 130 3.0 200
AD2016 16 28 28,500 200 3.5 245
Quality Standards:

The company for the products are brand new original products, no second-hand and refurbished products, or leave a compensable ten and return the full amount , but the buyer due to our purchase of model error is not responsible for returns, another of the company's sales of products enjoy one year from the date of shipment quality assurance , according to the original quality standards , during warranty with product problems , need confirmation testing by the manufacturer , the supplier to be solved , the demand side due to storage , use, poor maintenance caused by lower-quality product , and not raise objections.

Samples:

You can send a sample to customize the products, we have many engineers can help it; If you want a product of mine, but you are not sure if it's what you want, so you can ask for a sample from me, it will be free.

After-sale service:

We can provide a series of after-sale service, such as product introduction, mounting, debugging, technical support and so on.

Competitive Advantage:
Our product features: Our Services Guarantee:
1) Competitive price 1) Prompt respond (Reply with 24 hours)
2) Good quality 2) Free Samples (Customer pay for the delivery cost)
3) Professional Packaging 3) 1 year warranty
4) Produce according to Customers’ instruction 4) Photos/videos are available during production.
5) None delay shipment 5) Loading inspection, and send loading photos before shipment.
