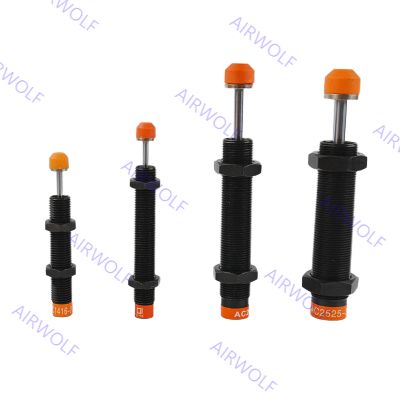

Name: AC0806-2, AC1005-2, AC1008-2, AC1210-2 CJAC AC Series Shock Absorber
Brand: Airwolf Automation
SKU: AC0806-2, AC1005-2, AC1008-2, AC1210-2
Price: 1.00 USD
Availability: InStock

Home Products Pneumatic Air Cylinders

AC0806-2, AC1005-2, AC1008-2, AC1210-2 CJAC AC Series Shock Absorber

Product Details:

Place of Origin:	Taiwan, China, China
Brand Name:	CJAC, AIRWOLF or OEM
Model Number:	AC0806-2, AC1005-2, AC1008-2, AC1210-2

Payment & Shipping Terms:

Minimum Order Quantity:	1 piece
Price:	1-2USD
Packaging Details:	Boxes, Cartons, Pallets, Plastic bags
Delivery Time:	1-7 work days
Payment Terms:	T/T,Western Union,Paypal
Supply Ability:	1000 pcs per week

Contact Now

Detailed Product Description

Item Code:	AC0806-2, AC1005-2, AC1008-2, AC1210-2	Outer Pipe Material:	AISI1215 And STKM11A Oxidized Black,nickel Plating Treatment
Piston Rod Material:	Hard Chromium Plating Treatment	Working Temperature Range:	-10~+80℃
Function:	Impact Protection, Shock Absorption	Speed Range:	1.0~1.5m/s
Highlight:	AISI1215 and STKM11A Shock Absorber , Working Temperature Range -10~+80℃ Shock Absorber , Speed Range 0.5~4.0m/s Shock Absorber

AC0806-2, AC1005-2, AC1008-2, AC1210-2 CJAC AC Series Shock Absorber

The AC series is designed for fixed construction. Linear deceleration of moving objects is maintained through specially designed and tested oil holes and alignment. From high-speed light loads to low speeds and high loads, this shock absorber absorbs the appropriate energy without adjustment. After the load is removed, the axis is pushed to the original position by the return spring. The AC series has three models of high speed, medium speed, and low speed to meet your different requirements.

Order Code:

Item Code	A(mm)	B(mm)	D(mm)	F(mm)
AC0806-2	50	38	3	33
AC1005-2	38.7	27.7	2.8	22.9
AC1008-2	57	43	3	38
AC1210-2	68.8	50	3	45.5

AC0806-2, AC1005-2, AC1008-2, AC1210-2 CJAC AC Series Shock Absorber

Specifications:

Model	AC0806-2	AC1005-2	AC1008-2	AC1210-2
Stroke(mm)	6	5	8	10
Maximum absorbed energy (Nm(Et))	2	3	4	5
Absorbed energy per hour (Nm(Etc))	8,800	10800	15200	17640
Maximum effective weight (Kg(Me))	2	3	4	10
Highest impact speed (m/s(v))	1.0	1.5	1.5	1.5
Thread	M8x1.0 * M8x0.75	M10x1.0	M10x1.0	M12x1.0

Quality Standards:

The company for the products are brand new original products, no second-hand and refurbished products, or leave a compensable ten and return the full amount , but the buyer due to our purchase of model error is not responsible for returns, another of the company's sales of products enjoy one year from the date of shipment quality assurance , according to the original quality standards , during warranty with product problems , need confirmation testing by the manufacturer , the supplier to be solved , the demand side due to storage , use, poor maintenance caused by lower-quality product , and not raise objections.

Samples:

You can send a sample to customize the products, we have many engineers can help it; If you want a product of mine, but you are not sure if it's what you want, so you can ask for a sample from me, it will be free.

After-sale service:

We can provide a series of after-sale service, such as product introduction, mounting, debugging, technical support and so on.

Competitive Advantage:

Our product features:	Our Services Guarantee:
1) Competitive price	1) Prompt respond (Reply with 24 hours)
2) Good quality	2) Free Samples (Customer pay for the delivery cost)
3) Professional Packaging	3) 1 year warranty
4) Produce according to Customers’ instruction	4) Photos/videos are available during production.
5) None delay shipment	5) Loading inspection, and send loading photos before shipment.
