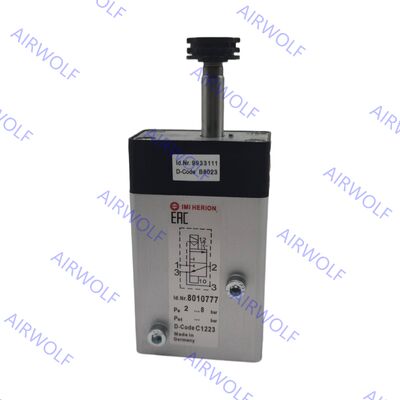

8012750 8012850 8011750 8010777 IMI Norgren 3/2 way Solenoid Valve G1/4 NAMUR G1/4 G1/2
The IMI Norgren 26230 and 80107 Series excel in optimizing pneumatic systems for sectors like food production and material handling, thanks to their high flow rates and energy-efficient design. The indirect electromagnetic actuation (solenoid/spring or solenoid/solenoid) ensures quick response and precise control. Features like exhaust air silencers and a soft spool seal system reduce noise and enhance reliability. Certified for ATEX in explosive atmospheres and available with DIN electrical connections, these valves meet rigorous international standards while supporting seamless integration into automated workflows. Their maintenance-free operation and corrosion-resistant materials make them a cost-effective choice for continuous-duty applications.
Order Codes:
| Item Code |
Port Size |
Position |
| 8012750 |
G1/4 |
3/2 way |
| 8012850 |
G1/2 |
3/2 way |
| 8011750 |
G1/4 |
3/2 way |
| 8010777 |
G1/4 NAMUR |
3/2 way |
Technical Data:
| Port size |
Actuation/return |
Operating pressure (bar) |
Flow (l/min) |
Weight (kg) |
Dimensions No. |
Solenoid group |
Model *1) |
| G1/4 |
Solenoid/air spring |
1 ... 10 |
1325 |
0,4 |
1 |
B |
8012750 *2) |
| G1/2 |
Solenoid/air spring |
1,5 ... 10 |
3300 |
0,7 |
2 |
B |
8012850 *2) |
| Port size |
Actuation/return |
Operating pressure (bar) |
Flow (l/min) |
Weight (kg) |
Dimensions No. |
Solenoid group |
Model *1) |
| G1/4 |
Solenoid/Solenoid |
1 ... 10 |
1325 |
0,77 |
3 |
B |
8011750 |
| Port size |
Actuation/return |
Operating pressure (bar) |
Flow (l/min) |
Weight (kg) |
Dimensions No. |
Solenoid group |
Model *1) |
| G 1/4 NAMUR |
Solenoid/air spring |
2 ... 8 |
1325 |
0,4 |
4 |
A |
8010777 *2) |
*1) When ordering please indicate solenoid, voltage and current type (frequency)
*2) Port 5 cannot be throttled
Solenoids:
Standard voltages (±10%) 24 V DC, 230 V AC. Standard voltages (±10%) 24 V d.c., 230 V a.c., other voltages on request.
*1) Connectors not included in the scope of delivery, see accessories
*2) Maximum +40°C for battery installation
Ex e mb IIC T4 Gb Ex tb IllC T120°C Db I IP 65 (with cable gland) Standard voltages (±10%) 24 V d.c., 230 V a.c., other voltages on request.
*1) Connectors not included in the scope of delivery, see accessories
*2) Maximum +40°C for battery installation
Dimensions:
