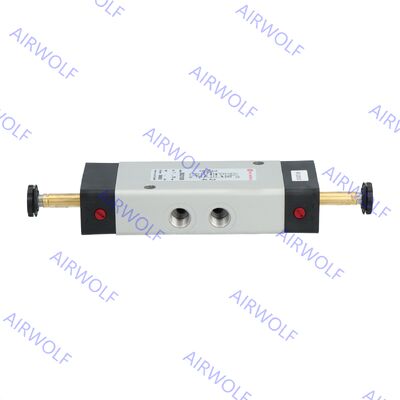

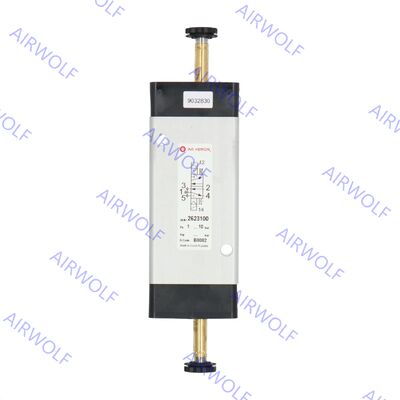

2623100 2623101 2623600 2623601 IMI Norgren 5/2 way Solenoid Valve G1/4 G1/2
The IMI Norgren 26230 and 80107 Series NAMUR Solenoid Valves are engineered for high-performance control in industrial automation, featuring a robust aluminum housing and NBR seals for durability in demanding environments. These valves support 3/2-way and 5/2-way configurations with a operating pressure range of 1–10 bar. Their NAMUR interface enables direct mounting to actuators, simplifying installation and reducing setup time. With a flow rate of up to 1325 l/min (G 1/4 port) and compatibility with filtered, lubricated, or non-lubricated compressed air, they ensure efficient regulation for single or double-acting actuators. Ideal for applications like packaging and manufacturing, these valves offer reliable, maintenance-free operation with optional ATEX certification for hazardous areas.
Order Codes:
| Item Code |
Port Size |
Position |
| 2623100 |
G1/4 |
5/2 way |
| 2623101 |
G1/4 |
5/2 way |
| 2623600 |
G1/2 |
5/2 way |
| 2623601 |
G1/2 |
5/2 way |
Technical Data:
| Port size |
Actuation/return |
Operating pressure (bar) |
Flow (l/min) |
Weight (kg) |
Dimensions No. |
Solenoid group |
Model *1) |
| G1/4 |
Solenoid/Solenoid |
1 ... 10 |
1325 |
0,4 |
7 |
B |
2623100 |
| G1/4 |
Solenoid/Solenoid |
2 ... 8 |
1325 |
0,4 |
7 |
A |
2623101 |
| G1/2 |
Solenoid/Solenoid |
2 ... 10 |
3300 |
0,7 |
8 |
B |
2623600 |
| G1/2 |
Solenoid/Solenoid |
2 ... 8 |
3300 |
0,7 |
8 |
A |
2623601 |
*1) When ordering please indicate solenoid, voltage and current type (frequency)
*2) Port 5 cannot be throttled
Solenoids:
Standard voltages (±10%) 24 V DC, 230 V AC. Standard voltages (±10%) 24 V d.c., 230 V a.c., other voltages on request.
*1) Connectors not included in the scope of delivery, see accessories
*2) Maximum +40°C for battery installation
Ex e mb IIC T4 Gb Ex tb IllC T120°C Db I IP 65 (with cable gland) Standard voltages (±10%) 24 V d.c., 230 V a.c., other voltages on request.
*1) Connectors not included in the scope of delivery, see accessories
*2) Maximum +40°C for battery installation
Dimensions:
