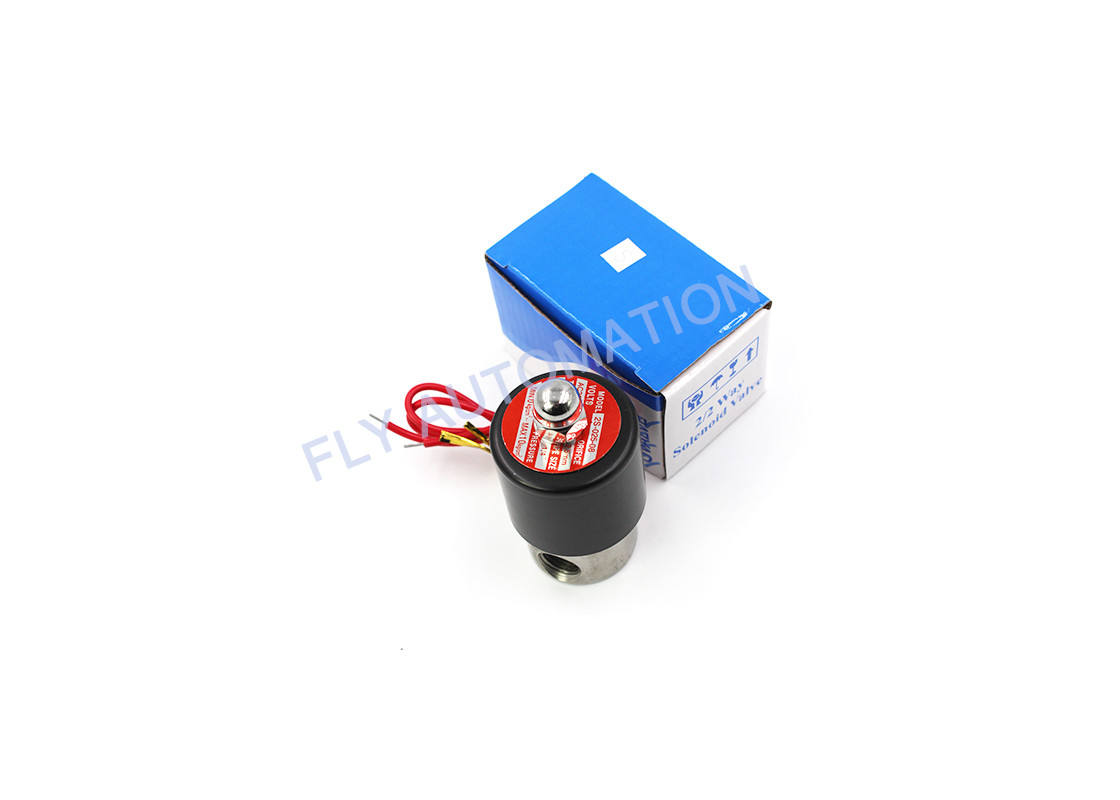

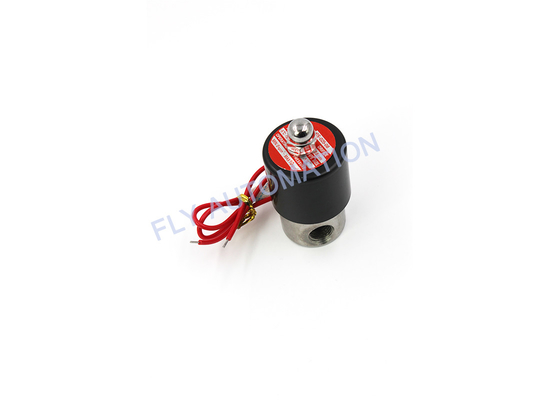

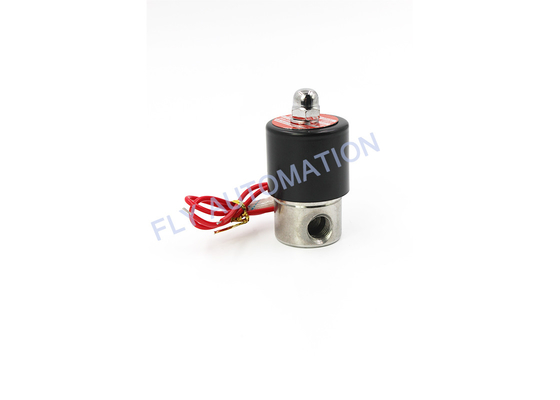

UNID 2S025-08 1/4'' Water Solenoid Valves Stainless Steel

UNID 2S025-08 1/4'' Water Solenoid Valves Stainless Steel

  • UNID 2S025-08 1/4'' Water Solenoid Valves Stainless Steel
  • UNID 2S025-08 1/4'' Water Solenoid Valves Stainless Steel
  • UNID 2S025-08 1/4'' Water Solenoid Valves Stainless Steel
  • UNID 2S025-08 1/4'' Water Solenoid Valves Stainless Steel
UNID 2S025-08 1/4'' Water Solenoid Valves Stainless Steel
Product Details:
Place of Origin: China
Brand Name: NUID
Certification: ISO Standand
Model Number: 2S025-08
Payment & Shipping Terms:
Minimum Order Quantity: 1 PC
Price: Negotiation
Packaging Details: Plastic bags, boxes, cartons, Pallets or As customer's requirement
Delivery Time: 7 working Days
Payment Terms: T/T, Western Union, MoneyGram Paypal
Supply Ability: 500 PCS Per Week
Contact Now
Detailed Product Description
Model: 2S025-08 Fluid: Air, Water, Oil, Gas
Operation: Direct Drive Type Type: Normal Closed
Aperture Of Flow Rate: 2.5mm Port Size: 1/4''
High Light:

UNID 2S025-08 Water Solenoid Valves

,

Direct Drive Type Water Solenoid Valves

,

Stainless Steel Water Solenoid Valves

UNID 2S025-08 1/4'' STAINLESS STEEL SOLENOID VALVE WATER MINIATURE VALVE FKM



MODEL 2S025-06 2S025-08 2S040-10
INNER BORE(mm) 2.5 4
CV VALUE 0.23 0.6
PORT SIZE G1/8 G1/4 G3/8
WORKING MEDIUM AIR,OIL,GAS
OPERATING DIRECT ACTING
ACTING TYPE NORMAL CLOSED
FLUID VISCOSITY 20 CST BELOW
WORKING PRESSURE 0~0.7MPa
PRESSURE RESISTANCE 1MPa
WORKING TEMPERATURE NBR:-5~80C VITON:-20~180C
VOLTAGE RANGE ±10%
BODY MATERIAL STAINLESS STEEL
SEAL MATERIAL NBR
Code Option
Thread Option: G and NPT
Standard Voltage Option: DC12V,DC24V,AC110V or AC220V
Material Option: Stainless Steel
Oil Seal Option:VITON



Model 2S025-08
Fluid Air, Water, Oil, Gas
Operation Direct Drive Type
Type Normal Closed
Aperture of flow rate 2.5mm
Cv value 0.25
Port size 1/4''
Operation fluid viscosity 20 CST Below
Operation pressure 0 ~ 0.7MPa
Max.Proof pressure 1.0MPa
Operation temperature -5 ~ +120C
Voltage DC12V(Option:DC24V,AC110V or AC220V)
Voltage range ±10%
Metarial of body 2S: Stainless Steel
Material og oil seal FKM

UNID 2S025-08 1/4'' Water Solenoid Valves Stainless Steel



UNID 2S025-08 1/4'' Water Solenoid Valves Stainless Steel

UNID 2S025-08 1/4'' Water Solenoid Valves Stainless Steel

Ningbo Fly Automation Co., Ltd with its headquarter located in Ningbo and established in 2010, is a wellknown supplier manufacture of pneumatic equipments in the world market.
Fly Automation is specialized in producing pneumatic cylinders, pneumatic valves,air preparation units, pulse jet valves, pneumatic fittings, etc.



After-sales clause:
One year quality guarantee Policy
We will check the goods quality before shipment. If there are some unexpected problems
happen, we hope to solve the problems with buyer through friendly in the following ways:
1, If it is quality problem, buyer can submit argue within 15days after receiving the goods,
buyer must provide photos or video and other evidence to seller for identify.
2, Man-made damaged, buyers take full responsibility.
3, Product quality processing program:
1) The buyer return the products for bad quality reasons for one year (not included those
damages coursed by shipping or Man-made damaged ). A 15% restocking fee is
assessed for any products returned in "used" condition. And then we will send a new
product to buyer and pay for the resend shipping cost.
2) If the goods (total price including shipping is less than 10USD) has quality problems, we
will resend a new product in buyer next order; if buyer don't plan to make a new order in
the near term, buyer can pay the resend shipping cost and ask to resend a new product. If
there is an issue with the products, please contact us– we will solve it as soon as we get
your email.
