| Liandong-U-Gu 17-2#, Shengyuan Road 1#, Jiangkou Street, Fenghua District, Ningbo City, Zhejiang Province, China | airwolf@flyautomatic.com |
 |
| Place of Origin: | China |
| Brand Name: | FLY |
| Certification: | ISO Standand |
| Model Number: | STB-G1/4 |
| Minimum Order Quantity: | 1 PC |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Plastic bags, boxes, cartons, Pallets or As customer's requirement |
| Delivery Time: | 7 working Days |
| Payment Terms: | T/T, Western Union, MoneyGram Paypal |
| Supply Ability: | 500 PCS Per Week |
| Model: | STB | Body: | Steel |
|---|---|---|---|
| Pipe Size: | G1/4 | Media: | Oil |
| Power: | Hydraulic | Application: | General |

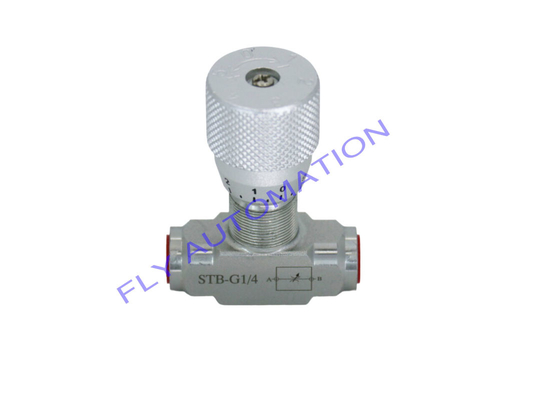

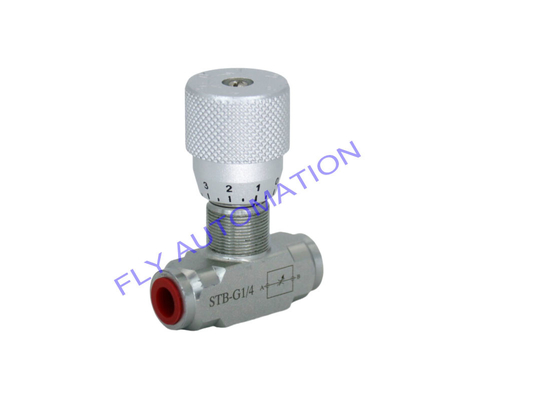

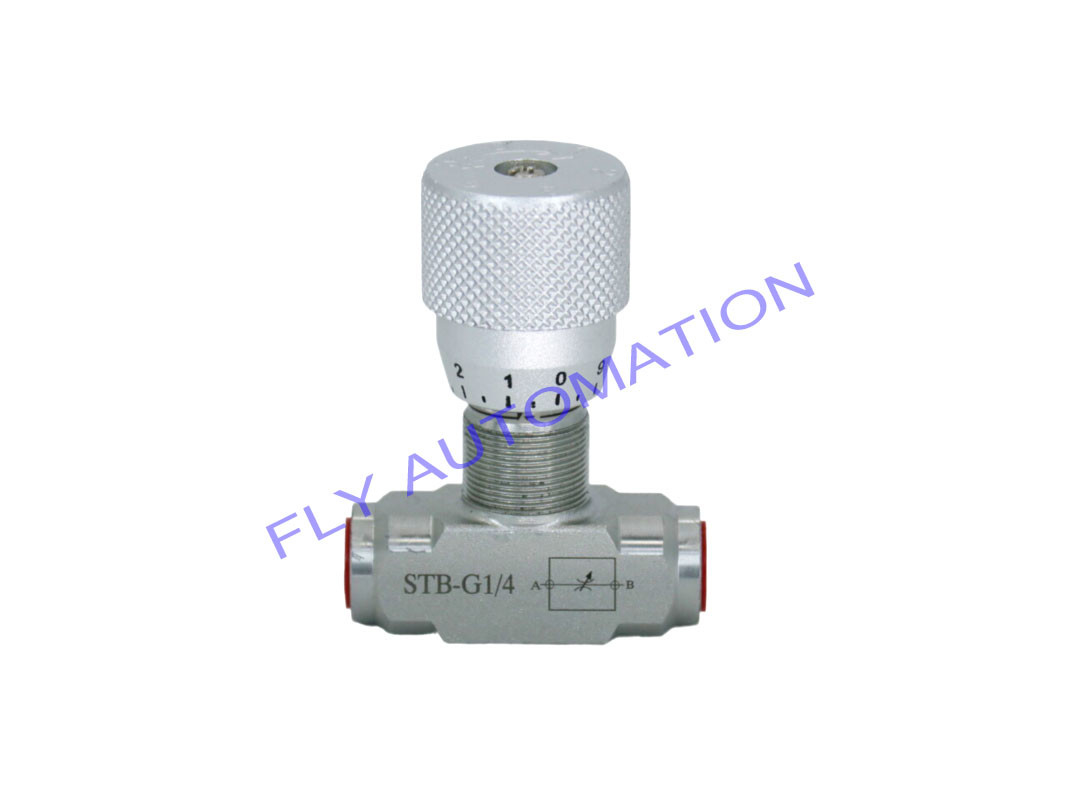

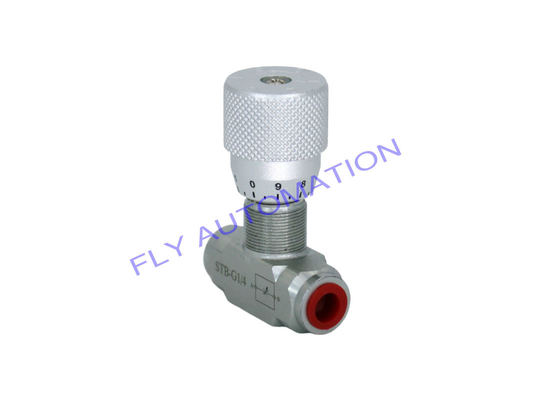

| High Light: | 40Mpa Hydraulic Flow Control Valve,STB-G1/4 Hydraulic Flow Control Valve,Bi Directional Flow Control Valve |
||
Application
The throttle valves are able to produce a pressure drop between inlet and outlet. They are not pressure compensated so the regulated flow can change infunction of the pressure and of the viscosity.
Description
Throttle valve, also called check valve, is used in hydraulic system to control the flow and cutoff of oil.
If the oil inlet and outlet of a straight through check valve are in a axial direction, the valve may be connected directly to the system pipe via threaded pipe fittings.
Throttle valve may be used in parallel with overflow valve, relief valve, sequence valve, throttle valve and speed control valve and so to form non-return overflow valve, non-return relief valve, non-return sequence valve, non-return throttle valve, non-return speed control valve and so on.
| Code | C | Flow max (l/min) |
Pressure max (bar) |
L-STU mm) |
L-STB mm) |
H (mm) |
D (mm) | E (mm) |
F mm) |
G (mm) |
M (mm) | N max (mm) |
Weigm-STU (g) |
Weight-STB (g) |
Weigh screw ikg) |
| STU-STB 0400 | 1/4 BSP | 20 | 400 | 73 | 54 | 68.5 | 31.5 | 20 | M20x1 | 6 | 27 | 7 | 0.26 | 0.21 | 0.02 |
| STU-STB 0600 | 3/8 BSP | 30 | 400 | 82 | 62 | 80.5 | 35.5 | 25 | M25x1.5 | 9.5 | 31 | 7 | 0.44 | 0.37 | 0.031 |
| STU-STB 0800 | 1/2 BSP | 50 | 350 | 98 | 73 | 93 | 41 | 30 | M30x1.5 | 8 | 36.5 | 9 | 0.73 | 0.59 | 0.043 |
| STU-STB 1200 | 3/4 BSP | 85 | 320 | 112 | 84 | 110 | 47 | 40 | M35x1.5 | 13 | 42 | 11 | 1.36 | 1.1 | 0.067 |
| STU-STB 1600 | 1 BSP | 150 | 300 | 142 | 100 | 121.5 | 47 | 45 | M40x1.5 | 11.5 | 50 | 15 | 2 | 1.52 | 0.09 |
| Max pressure | C | L | H | D | E | F | G | N | PN |
| MPA | |||||||||
| 40 | G1/4 | 54 | 72 | 32 | 20 | M20*1 | 5 | 7 | 40 |
| 40 | G3/8 | 62 | 80 | 32 | 25 | M25*1.5 | 9 | 7 | 40 |
| 40 | G1/2 | 73 | 92 | 45 | 30 | M20*1.5 | 9 | 9 | 40 |
| 40 | G3/4 | 84 | 100 | 45 | 40 | M35*1.5 | 10 | 11 | 40 |
| 32 | G1 | 102 | 122 | 45 | 45 | M40*1.5 | 12 | 15 | 32 |
