| Place of Origin: | China |
| Brand Name: | FESTO |

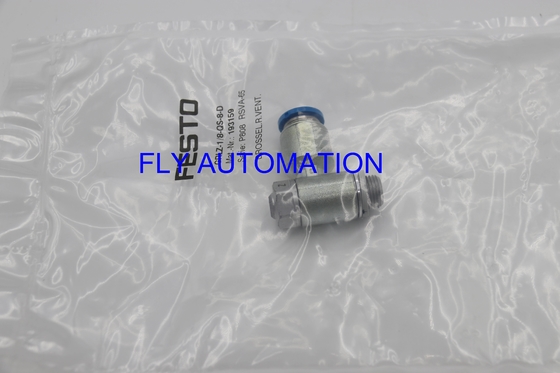

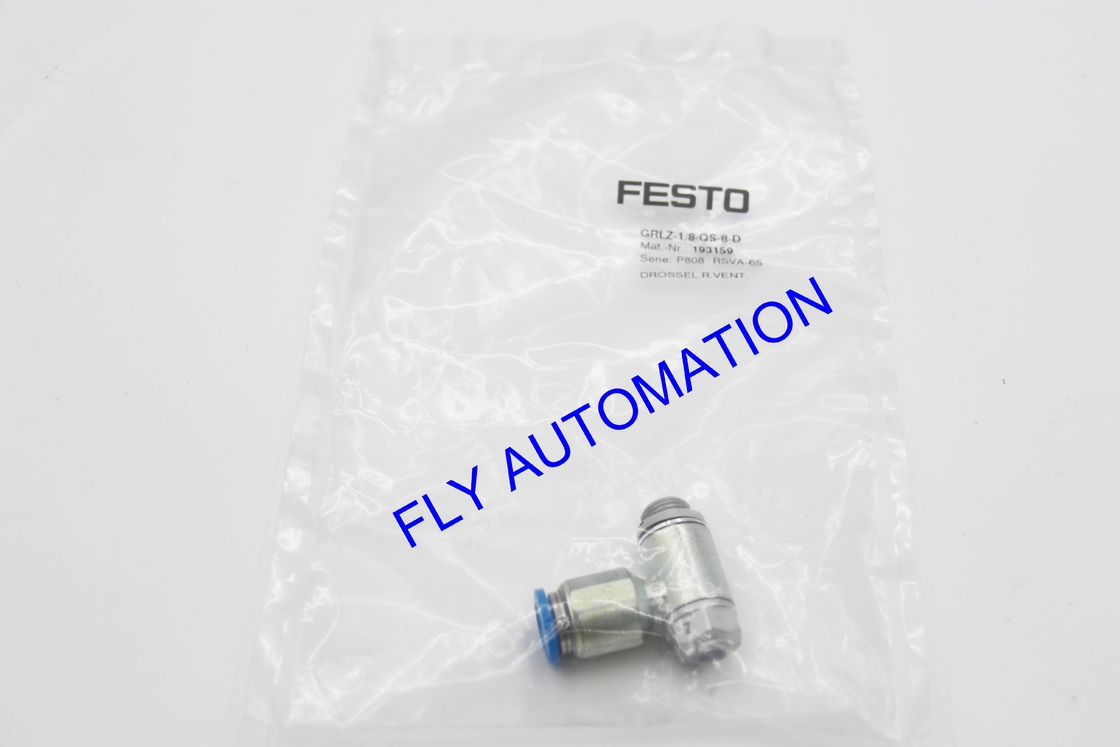

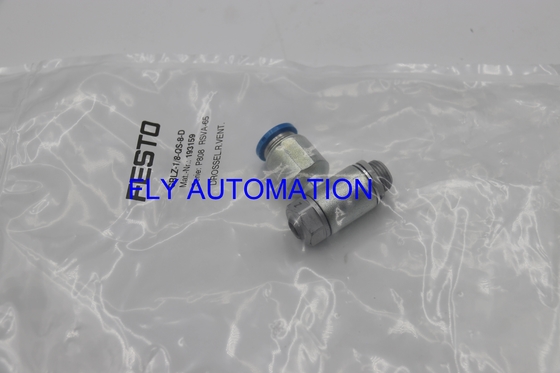

| Model Number: | GRLZ-1/8-QS-8-D |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | EXW USD20-40 |
| Packaging Details: | Plastic bag, Carton |
| Delivery Time: | 7-10working days |
| Payment Terms: | T/T, Western Union, Paypal |
| Supply Ability: | 1000 pcs per month |
| Type: | GRLZ-1/8-QS-8-D | Part No: | 193159 |
|---|---|---|---|
| Pneumatic Connection, Port 1: | QS-8 | Pneumatic Connection, Port 2: | G1/8 |
| Brand: | FESTO | Product Weight: | 22 G |
| High Light: | 193159 One Way Flow Control Valve,Festo One Way Air Valve,One Way Flow Control Valve G1/8 |
||
About product
1.The piston speed of both advancing and retracting pneumatic cylinders can be regulated using one-way flow control valves.
2.The required restriction can be set with the help of this adjustment element.
3.This gap can be increased or decreased by turning the knurled screw or slotted head screw.
Technical Data
| Valve function | Supply air one-way flow control function |
| Pneumatic connection, port 1 | QS-8 |
| Pneumatic connection, port 2 | G1/8 |
| Adjustment component | Slotted head screw |
| Type of mounting | Screw-in |
| Mounting position | optional |
| Symbol | 00991453 |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Nominal torque | 3 Nm |
| Product weight | 22 g |
| Material screw-in stud | Wrought aluminium alloy |
| Note on materials | RoHS-compliant |
| Material seals | NBR |
| Material release ring | POM |
| Material adjusting screw | Brass |
| Material swivel fitting | Die-cast zinc Chromated |
Product range overview – One-way flow control valves
