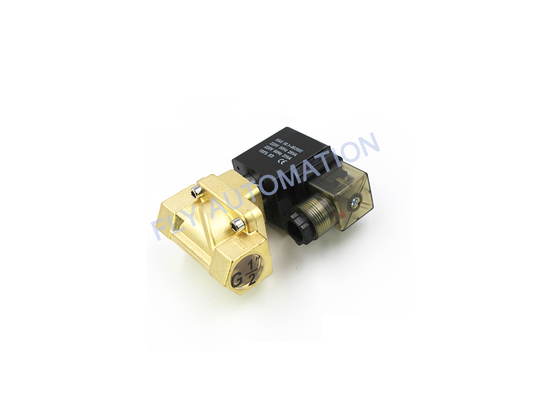

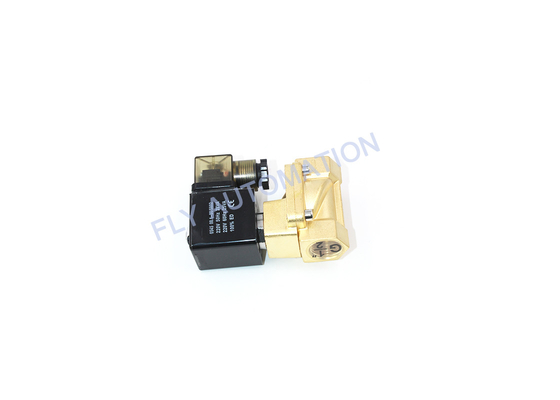

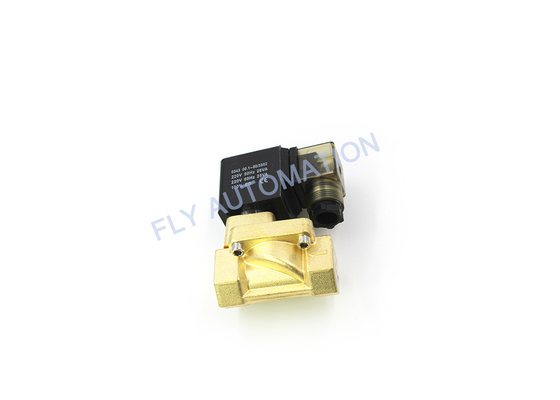

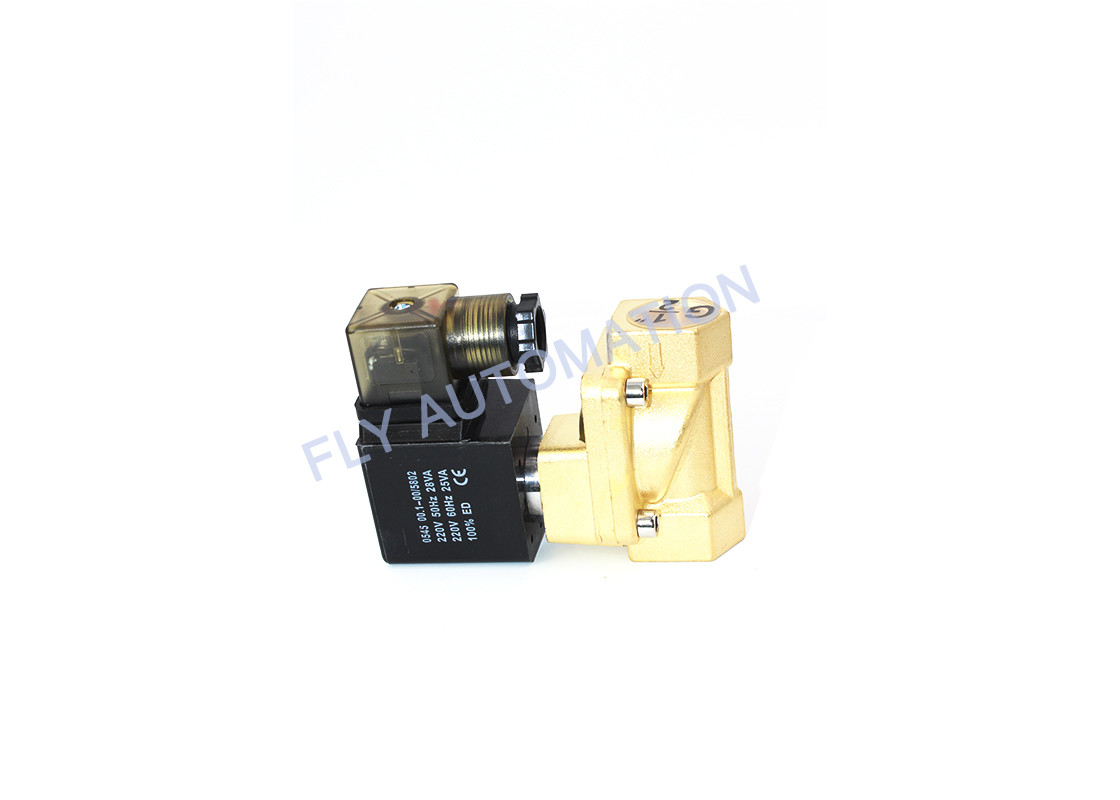

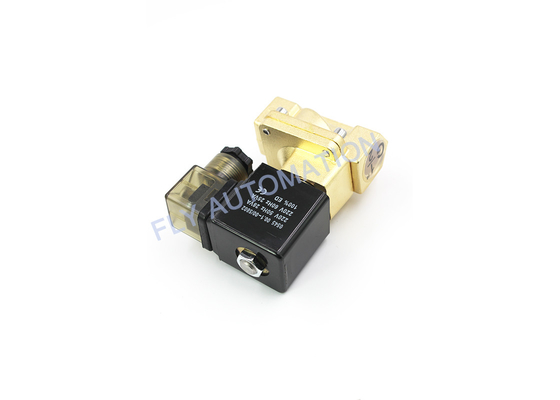

Name: Pu225-04 Solenoid Valve For Water Application Pilot Operated
Brand: FLY AUTOMATION
SKU: PU225-04
Price: 82.00 USD
Availability: InStock

Home Products Water Solenoid Valves

Pu225-04 Solenoid Valve For Water Application Pilot Operated

Product Details:

Place of Origin:	China
Brand Name:	SHAKO
Certification:	ISO Standand
Model Number:	PU225-04

Payment & Shipping Terms:

Minimum Order Quantity:	1 PC
Price:	Negotiation
Packaging Details:	Plastic bags, boxes, cartons, Pallets or As customer's requirement
Delivery Time:	7-10 working Days
Payment Terms:	T/T, Western Union, MoneyGram Paypal
Supply Ability:	100 PCS Per Week

Contact Now

Detailed Product Description

Model:	PU225-04	Orifi Ce Size(mm):	13mm
CV Value:	4.5	Port Size:	G1/2"
Fluid:	Compressed Air,Water,Light Oil (Below 50CST)	Material Of Body:	Brass
Voltage Tolerance:	±10%	Standard Voltage:	DC24, AC220V,
Highlight:	pu225-04 solenoid valve for water application , pilot solenoid valve for water application , pu225-04 water valve with solenoid

SHAKE PU225-04 Electric Brass Water Solenoid Valve Low Pressure Air Water Pneumatic Steam On Best Sale Sanmin

PU225 series solenoid valve, it is 2/2way, internal piloted type. It can be equipped with timer to control water drain timely. IP65, Insulation F class.

Specification:

Model	PU225-03	PU225-04	PU225-06	PU225-08
Orifi ce Size(mm)	13mm	13mm	25mm	25mm
CV Value	4.5	4.5	12	12
Port Size	G3/8"	G1/2"	G3/4"	G1'
Fluid	Compressed Air,Water,Light oil (Below 50CST)
Operation	Pilot Operated
Material of body	Brass
Operation-pressure(kg/cm2)	0.5~10kgf/cm2
Max. Pressure	15kgf/cm2
Diaphragm Type	NBR or VITON
Temperature Range	NBR for –5-80°C; VITON for –5-150°C
Ambient Temperature	-20°C~60°C
Power Consumption	22VA
lnstallation	Horizontal or Slant
Coils Type	DIN Type
Voltage Tolerance	±10%
Protection Degree	IP65
Insulation	F
Standard Voltage	Standard: DC24, AC220V, AC110V, 50/60HZ Especial: DC12V, AC24V, AC380V

Pu225-04 Solenoid Valve For Water Application Pilot Operated

1. We win with high quality.
Only with perfect quality system management can we have quality assurance. Fly Automation has passed ISO9001 quality management system certification.
Precision high-end testing equipment 100% inspection. Strive to be "100 points high quality products"
Only with quality can we have market, go further, and strive for the quality management concept of survival with quality.

2. Professional production technology management ability.
Pay attention to the process quality control, important performance test and appearance inspection of each work station in the production process. Check the quality level by level.
All staff participate, strengthen management, keep improving and casting quality.
