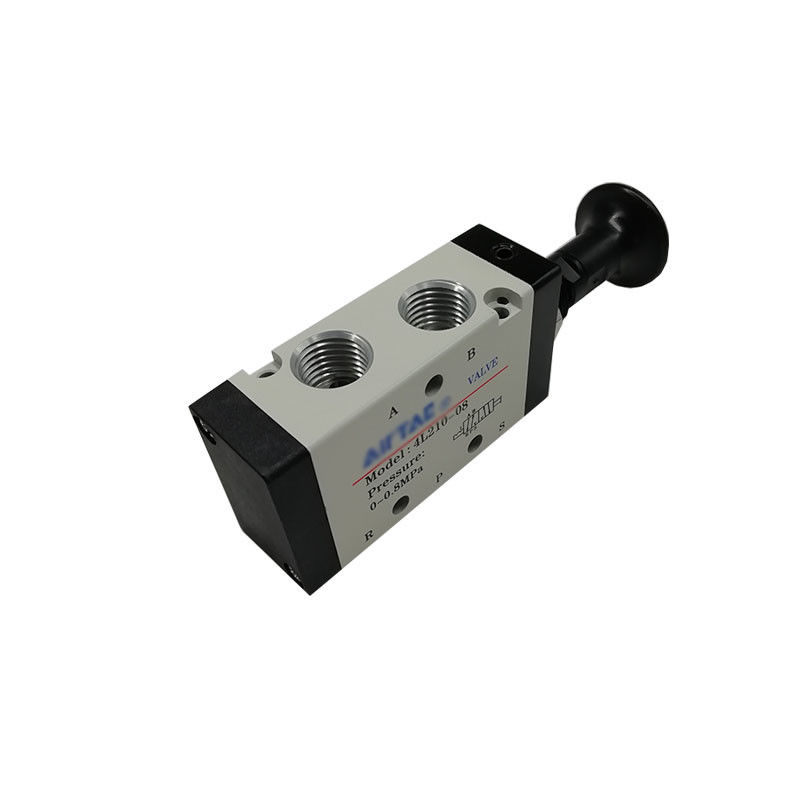

Pneumatic valve 4L210-08 Hand control valve 5/2way 0-0.8Mpa Manual valve
Application
The manual valve is the control part in the pipeline fluid transportation system. It is used to change the channel section and the flow direction of the medium. It has the functions of diversion, cut-off, regulation, throttling, check, diversion or overflow pressure relief. For the valve used for fluid control, the nominal diameter of the valve is from the extremely small instrument valve to the industrial pipeline valve with the diameter up to 10 m. Under the action of pressure, temperature or other sensing signals, the valve can act according to the predetermined requirements, or simply open or close without depending on the sensing signals. The valve depends on the driving or automatic mechanism to make the opening and closing parts move up and down, slide, swing or rotate, so as to change the size of its flow passage area to realize its control function.
Principle
Rotate the adjusting screw clockwise, adjust the spring force and press the diaphragm downward, and move the connecting spool and chassis downward. At this time, a path is formed above the spool chassis, and the air pressure is exported through the outlet.
When the outlet pressure rises to the set pressure, it is transmitted to the bottom of the diaphragm through the outlet pressure sensing hole, and the spring pressure is balanced, and the set pressure is maintained.
When the outlet pressure is greater than the set pressure, it is transmitted to the bottom of the diaphragm through the outlet pressure induction hole, and the hole between the diaphragm and the chassis opens. The outlet pressure is transmitted to the spring chamber through the hole and discharged to the atmosphere to maintain the set pressure.
| model code |
4L210-08 |
| type |
Manual valve |
| weight |
0.5KG |
| material |
aluminum |
Function
1. It enhances the safety of mechanical operation.
2. It avoids the mechanical damage due to any impact shock.
3. It reduces the repaircost, prolongs the service life of the machine.
Attention
1. Export pressure additional balancing lifting valve provides fast response
2. It has precise pressure regulation and is suitable for optimum pressure control.
3. Holistic control piston, lip seal, long service life.
4. Full flow pressure gauge air port.
5. Press-lock adjusting knob with protective cover.
6. Compact structure, easy maintenance
Delivery
1. If the products we have in store, we will send it out ASAP after payment.
2. If the products which were customized, we will complete the production within a specified period of time, and send it out the first time, we can promise it.
3. We have a variety of ways to deliver goods, usually DHL, Fedex, TNL will be normal ways, If you require use of a courier, we can do it.
4. Also we can send by your delivery acount if you want.
After-sale service
We can provide a series of after-sale service, such as product introduction, mounting, debugging, technical support and so on.
Serves time
0:00 - 23:59
From Monday to Sunday
