Place of Origin: | China |
Brand Name: | FESTO |
Model Number: | MS4-EM1-1/4-S |
Minimum Order Quantity: | 1pc |
---|---|
Price: | USD40-50 |
Packaging Details: | Plastic bag, Carton |
Delivery Time: | 5-7 working days |
Payment Terms: | T/T, Western Union, Paypal |
Supply Ability: | 100 pcs per week |
Type: | MS4-EM1-1/4-S | Part No: | 541259 |
---|---|---|---|
Brand: | FESTO | Type Of Actuation: | Manual |
Product Weight: | 210 G | Material Housing: | Die-cast Aluminium |
High Light: | 541259 Pneumatic Manual Valve,Automatic Shutoff Pneumatic Manual Valve,MS4-EM1-1/4-S On Valve |
About product
1.Maximum machine availability thanks to controlled processes .
2.Reliable compressed air preparation and supply for systems.
3.Integrated or stand-alone.
4.Integrated soft-start function.
5.Fully automatic monitoring and regulation of the compressed air supply.
6.Automatic shut-off of the compressed air in stand-by mode .
7.Condition monitoring of relevant process data.
8.Detection and notification of leakages .
9.Optimum flow rate with a size that is up to 18% smaller .
10.Cost-optimised combinations – save up to 30%!.
Advantage
1.Excellent energy efficiency.
2.Easy to connect with M8/M12 plug.
3.Fast and reliable exhausting of systems up to Performance Level e, certified to EN ISO 13849-1 .
Product Technical Data
Design | Rotary gate valve |
Type of actuation | Manual |
Exhaust-air function | Without flow control option |
Type of piloting | Direct |

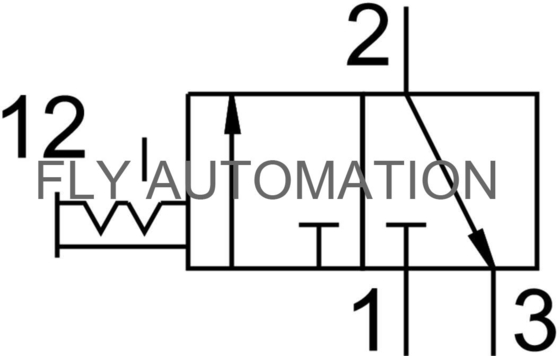

Symbol | 00991670 |
Valve function | 3/2 double solenoid |
Operating pressure | 0 bar ... 14 bar |
C value | 9 l/sbar |
b value | 0.39 |
Standard nominal flow rate | 2200 l/min |
Corrosion resistance class CRC | 2 - Moderate corrosion stress |
Note on materials | RoHS-compliant |
LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Mounting position | optional |
Flow direction | Non-reversible |
Product weight | 210 g |
Pneumatic connection, port 1 | G1/4 |
Pneumatic connection, port 2 | G1/4 |
Pneumatic connection, port 3 | Not ducted |
Material seals | TPE-U(PU) |
Material housing | Die-cast aluminium |
Package picture
There are many specifications , price and delivery time. Welcome to inquire.
