Name: MSV86522 Series Pneumatic Manual Valve 2 Position 5 Way Mechanical
Brand: FLY AUTOMATION
SKU: MSV86522
Price: 150.20 USD
Availability: InStock

Home Products Pneumatic Manual Valve

MSV86522 Series Pneumatic Manual Valve 2 Position 5 Way Mechanical

Product Details:

Place of Origin:	China
Brand Name:	TECHNO
Certification:	ISO Standand
Model Number:	MSV86522

Payment & Shipping Terms:

Minimum Order Quantity:	1 PC
Price:	Negotiation
Packaging Details:	Plastic bags, boxes, cartons, Pallets or As customer's requirement
Delivery Time:	7 working Days
Payment Terms:	T/T, Western Union, MoneyGram Paypal
Supply Ability:	500 PCS Per Week

Contact Now

Detailed Product Description

Fluid:	Air	Position And Way Number:	2 Position 5 Way
CV Values:	0.89	Joint Pipe Bore:	G1/4"
Material:	Aluminum Alloy	Seals:	NBR
Highlight:	5 Way 2 Position Pneumatic Valve , Aluminum Alloy Pneumatic Manual Valve , MSV86522 Pneumatic Manual Valve

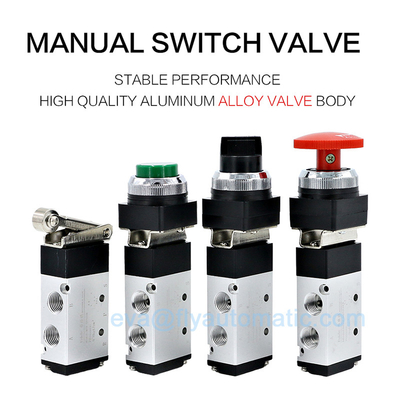

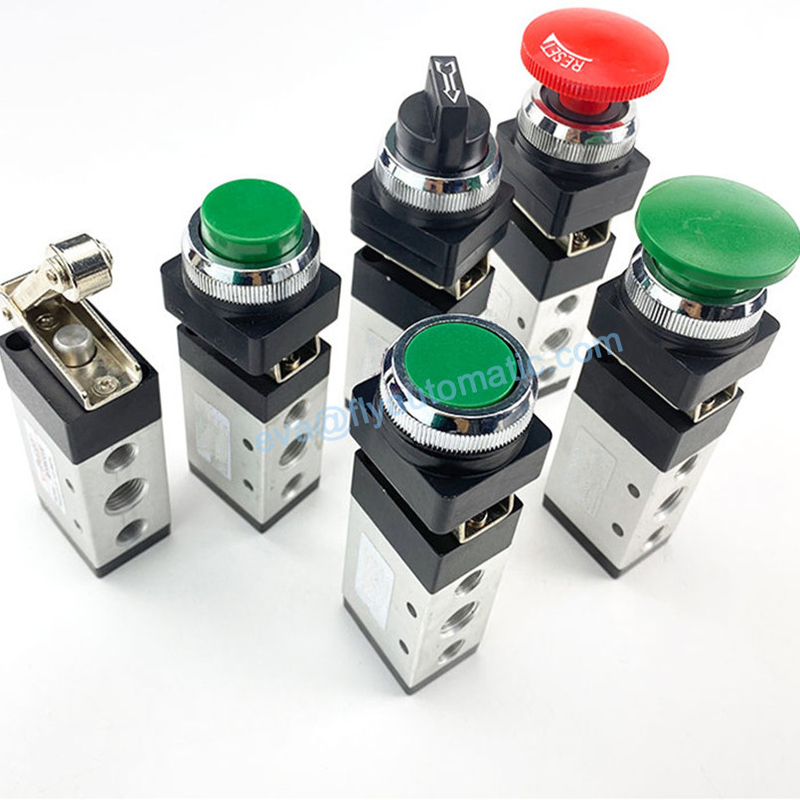

MSV86522 Series 2 Position 5 Way Mechanical Valve Manual Pneumatic Controll Valve Air Hand Operate

Specification

Fluid: Air

Position and Way Number: 2 position 5 way

Operating pressure: 0~8bar

Working temperature: 0~60°C

Effective section Area: 16mm2

CV values: 0.89

Joint Pipe Bore: G1/4"

Material: Aluminum Alloy

Seals: NBR

Model	MSV86522

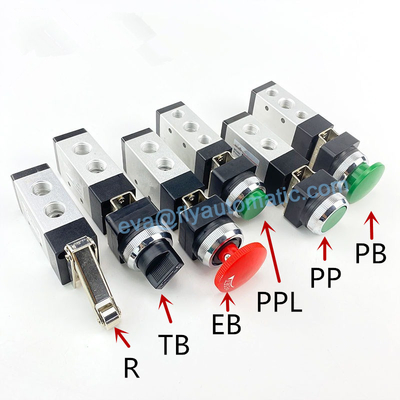

Button type	TB:Selective knob	PB: Large Round Button	PP: With lock button	PPL: Convex Round Button	R:Roller type
Port Size	G1/4''
Working Medium	Filtered Air
Porsition and Way NO.	5/2 way
Working Pressure Range	0~0.08Mpa
Operating Temperature Range	0~60°C

Model	MSV86321	MSV86522	MSV98322
Working Medium	Micron Filtered Air
The Position Counting	Two-position Three-way	Tow-position Four-way	Two-position Five-way
Joint Pipe Bore	G1/8	G1/4	G1/4
Operating Temperature	0~60 degree centigrade
Effective Sectional Area	12mm 2 (CV=0.67)	16mm 2 (CV=0.89)	16mm 2 (CV=0.89)
Working Pressure	0~0.8Mpa

Model	Joint Pipe Bore
MSV86321	G1/8
MSV86321R(MOV-02)	G1/8
MSV86321LB	G1/8
MSV86321EB(MOV-03)	G1/8
MSV86321TB(MOV-01)	G1/8
MSV86321PB	G1/8
MSV86321PPL(MOV-04)	G1/8
MSV86321PP	G1/8
MSV98322	G1/4
MSV983221R	G1/4
MSV98322LB	G1/4
MSV98322EB	G1/4
MSV98322TB	G1/4
MSV98322PB	G1/4
MSV98322PPL	G1/4
MSV98322PP	G1/4
MSV86522	G1/4
MSV86522R	G1/4
MSV86522LB	G1/4
MSV86522EB	G1/4
MSV86522TB	G1/4
MSV86522PB	G1/4
MSV86522PPL	G1/4
MSV86522PP	G1/4
