Liandong-U-Gu 17-2#, Shengyuan Road 1#, Jiangkou Street, Fenghua District, Ningbo City, Zhejiang Province, China | airwolf@flyautomatic.com |
Place of Origin: | China |
Brand Name: | ASCO |
Certification: | CE |

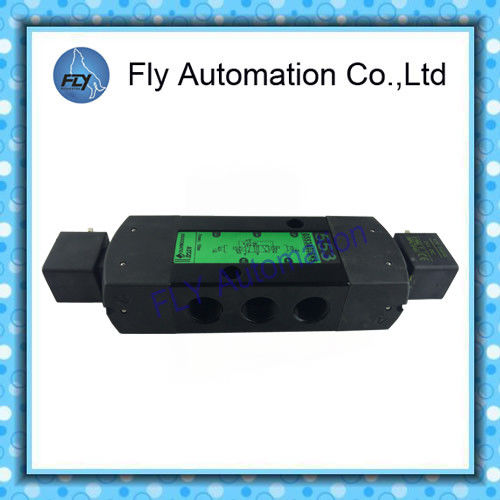

Model Number: | SCG553A018MS |
Minimum Order Quantity: | 1 piece |
---|---|
Price: | Negotiation |
Packaging Details: | Plastic bags,Boxes, Cartons, Pallets,or according to customer's requirement |
Delivery Time: | within 1-30 working days after payment |
Payment Terms: | T/T , Western Union |
Supply Ability: | 1000 pcs |
Model Code: | SCG553A018MS | Working Press: | 2-10 Bar |
---|---|---|---|
Working Temp.: | -25 °C To +60 °C | Port Size: | 1/2" |
High Light: | pulse solenoid valve,pneumatic diaphragm valves |
FEATURES
1. ASCO/JOUCOMATIC solenoid valves satisfy all relevant EC Directives
2. The monostable spool valves, series 551, have TüV certified IEC 61508 Functional Safety data and can be used up to SIL-4/AK-7
3. All the exhaust ports of this spool valve are pipable, providing better environmental protection, particularly recommended for sensitive areas such as clean rooms, and applications in the pharmaceutical and food processing sectors
4. The valve offers environmental protection against the ingress of liquids, dusts or any
other foreign matter (environmental-protected construction)
5. Epoxy moulded coil for general service applications
6. The spool valves 5/2 have threaded port connections
MATERIALS IN CONTACT WITH FLUID
Body: Aluminium, black anodized
End covers: Glass-filled polyamide
Internal parts: Zamak, stainless steel, acetal (POM), aluminium
Core and core tube: Stainless steel
Shading coil: Copper
Sealing: NBR + PUR
GENERAL
Differential pressure 2 - 10 bar [1 bar = 100 kPa]
Flow (Qv at 6 bar) 1/4 = 860 l/min (ANR)
3/8 = 3000 l/min
1/2 = 3800 l/min
Electrical characteristics
Coil insulation class | F |
Connector specification | DIN 43650, 11 mm, industry, standard B (type 01) or ISO 4400 (type 02) |
Connector | Spade plug (cable Ø 6-8 mm or Ø 6-10 mm) |
Electrical safety | IEC 335 |
Standard voltages | DC (=) : 24V AC (~) : 24V - 115V - 230V / 50 Hz |
Pictures and details
OPTIONS
1. Other pipe threads are available on request
2. EEx m (Prefix “PV”) execution can be supplied in various cable lengths
3. Dustproof ATEX (SCDU) with a coil and spade plug connector with lead (2 m lead), TPL 20651
4. Compliance with "UL" standard is available on request (552-553)
5. Magnetic latch execution for 551 series, TPL 20649
INSTALLATION
1. Installation/maintenance instructions are included with each valve
2. IEC 61508 Functional Safety (Suffix SL), permissible temperature range: -40°C to +60°C. Probability of failure, consult ASCO/JOUCOMATIC
3. It is necessary to connect pipes or fittings to the exhaust ports to protect the internal parts of the spool valve and its pneumatic operator if used outside or in harsh environments (dusts, liquids etc.)
4. Threaded pipe connection identifiers are B = NPT (ANSI 1.20.3); G = G (ISO 228/1)
5. The solenoid valves and air operated valves can be mounted in any position without affecting operation
Quality Standards
The company for the products are brand new original products, no second-hand and refurbished products, or leave a compensable ten and return the full amount, but the buyer due to our purchase of model error is not responsible for returns, another of the company's sales of products enjoy one year from the date of shipment quality assurance, according to the original quality standards, during warranty with product problems, need confirmation testing by the manufacturer, the supplier to be solved, the demand side due to storage, use, poor maintenance caused by lower-quality product, and not raise objections.
Competitive Advantage
Our product features | Our Services Guarantee: |
1) Competitive price | 1) Prompt respond (Reply with 24 hours) |
2) Good quality | 2) Free Samples (Customer pay for the delivery cost) |
3) Professional Packaging | 3) Registration support. |
4) Produce according to Customers’ instruction | 4) Photos/videos are available during production. |
5) None delay shipment | 5) Loading inspection, and send loading photos before shipment. |
Products shopping guide
For example: you want to purchase a batch of cylinders but you don't know which type you are really want, so you can tell me all your requirement and I'll recommend to you.
Warranty
All item Comes with Basic 3 Month Sellers Warranty, if item defective in 3 Month, We will offer replacement without extra Charger(including shipping fee)After we Receive the Defective item.
If item Defective after 3 Month, Buyers can still send it back, We will contact suppliers or Manufactory for Warranty. Buyers Might Need to pay the Shipping fee For resend the replaced item.
