| Liandong-U-Gu 17-2#, Shengyuan Road 1#, Jiangkou Street, Fenghua District, Ningbo City, Zhejiang Province, China | airwolf@flyautomatic.com |
 |
| Place of Origin: | China |
| Brand Name: | FESTO |
| Model Number: | JH-5-1/4 |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | EXW USD80-100 |
| Packaging Details: | Plastic bag, Carton |
| Delivery Time: | 5-7 working days |
| Payment Terms: | T/T, Western Union, Paypal |
| Supply Ability: | 500 pcs per month |
| Model: | JH-5-1/4 | Order No: | 10408 |
|---|---|---|---|
| Brand: | FESTO | Valve Function: | 5/2 Double Solenoid |
| Type Of Actuation: | Pneumatic | Degree Of Protection: | IP65 |
| High Light: | JH-5-1/4 Festo Pneumatic Valve,5/2 Double Solenoid Pneumatic Manual Valve,Metal Pneumatic Manual Valve |
||

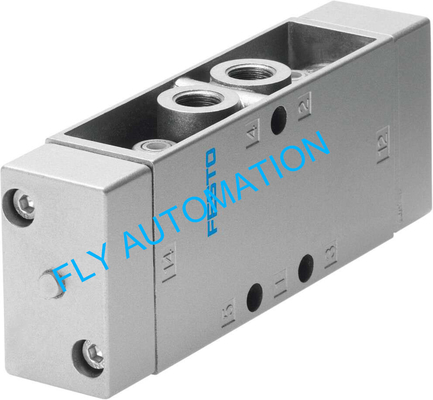

About product
1.Poppet valve.
2.Sturdy and reliable.
3.All-metal version.
4.Firm structure, reliable in performance.
Technical Data
| Valve function | 5/2 double solenoid |
| Type of actuation | Pneumatic |
| Construction width | 30.5 mm |
| Standard nominal flow rate | 1100 l/min |
| pneumatic working port | G1/4 |
| Design | Poppet seat |
| Degree of protection | IP65 |
| Nominal size | 7 mm |
| Grid dimension | 32 mm |
| Exhaust-air function | With flow control option |
| Sealing principle | Soft |
| Mounting position | optional |
| Type of piloting | Direct |
| Pilot air supply | External |
| Flow direction | Non-reversible |

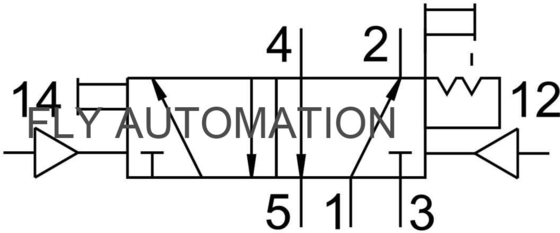

| Symbol | 00995757 |
| lap | Underlap |
| Max. switching frequency | 12 Hz |
| Switching time reversal | 7 ms |
| Operating medium | Compressed air to ISO 8573-1:2010 [7:4:4] |
| Corrosion resistance class CRC | 1 - Low corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Storage temperature | -20°C-60°C |
| Media temperature | -10°C-60°C |
| Pilot medium | Compressed air to ISO 8573-1:2010 [7:4:4] |
| Ambient temperature | -10°C-60°C |
| Product weight | 330 g |
| Type of mounting | Either: On manifold rail With through-hole |
| Pilot air port 12 | G1/8 |
| Pilot air port 14 | G1/8 |
| Pneumatic connection, port 1 | G1/4 |
| Pneumatic connection, port 2 | G1/4 |
| Pneumatic connection, port 3 | G1/4 |
| Pneumatic connection, port 4 | G1/4 |
| Pneumatic connection, port 5 | G1/4 |
| Note on materials | RoHS-compliant |
| Material seals | NBR TPE-U(PU) |
| Material housing | Die-cast aluminium |
Another size as below
| Type | Order no | Price |
| JH-5-1/8 | 8823 | USD80-100 |
| JH-5-1/8-EX | 536035 | USD80-100 |
| JH-5-1/4 | 10408 | USD80-100 |
| JH-5-1/4-EX | 536036 | USD80-100 |
| JH-5-1/2 | 10165 | USD80-100 |
| JH-5-1/2-EX | 536037 | USD80-100 |
Dimensions
There are so many products, welcome to enquire!
