Heavy Duty Pulse Jet Valves , Pulse Solenoid Valve With DIN43650A

Heavy Duty Pulse Jet Valves , Pulse Solenoid Valve With DIN43650A

  • Heavy Duty Pulse Jet Valves , Pulse Solenoid Valve With DIN43650A
  • Heavy Duty Pulse Jet Valves , Pulse Solenoid Valve With DIN43650A
Heavy Duty Pulse Jet Valves , Pulse Solenoid Valve With DIN43650A
Product Details:
Place of Origin: China
Brand Name: FLY/AIRWOLF
Certification: CE
Model Number: 400425342 / 400425101 / 400425118 / 400425117
Payment & Shipping Terms:
Minimum Order Quantity: 1piece
Price: USD 8-14
Packaging Details: Nylon bags , Bubble bags , Cartons , Pallets
Delivery Time: Within 3-15 working days after payment
Payment Terms: L/C , T/T , Western Union , Aliexpress , Paypal ( Visa , Master card )
Supply Ability: 30000 units per month
Contact Now
Detailed Product Description
Applicability: Pulse Value Series Product Name: 400425342 / 400425101 / 400425118 / 400425117
Temperature Range: –15°C - +40°C Coil Insulation: Class F
Inner Hole: 14.2mm Voltage Tolerance: ± 10%
Standard Operating Voltages: 24 V DC 24 V AC 115 V AC 230 V AC Material: Thermosetting
High Light:

air pulse valve

,

pulse solenoid valve

Heavy Duty Pulse Jet Valves , Pulse Solenoid Valve With DIN43650A

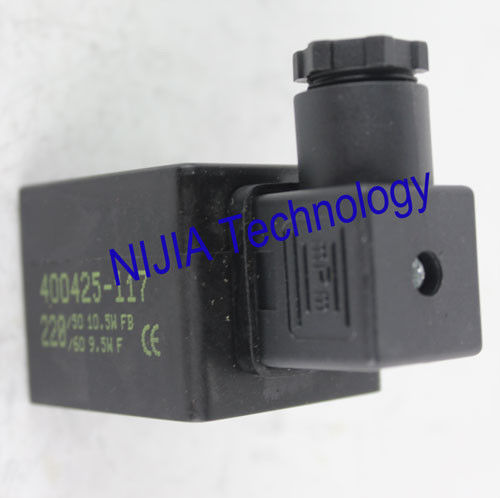

The Pulse solenoid coil A047 suitable for  SCG353050   SCG353051  SCG353A065   " 1 1/2" SCG 353A047 . It can be supplied with different  power consumptions  according to specific requirements .



Pulse valve is widely used in environmental dust industries , such as electromagnetic or pneumatic control

 by the pilot valve can open and close the high pressure gas source to generate pulse valve diaphragm valve

 in an instant , but also commonly known as electromagnetic pulse were pulsed valve or gas control

valve . The system  is Flexible control,Stable performance,Operation visually and convenient .



Specifications:



1. Normal voltage : 24 V DC    24 V AC    115 V AC    230 V AC

2. Coil Insulation : Class F

3. Color : Black ( can be customized )

4. Inner Hole : Φ 14.2mm ,  High40.3mm

5. Size : MXX

6. Connection Type : DIN43650A

7. Applicability : Pulse valve series

8. Temperature : –15°C - +40°C

9. Used to  Pulse  SCG353050   SCG353051  SCG353A065  SCG 353A047
10. Heavy duty long service life





DC24V=

DC48V=

AC24V=

AC48V=

AC115V=

AC230V=

CM-6

CM-6

CM6FT

CM6FB

234511-006

238511-106

400325-142

400325-242





400325-144

400325-244





400325-101

400325-201





400325-105

400325-205





400325-118

400325-218

238211-057

238211-157

400325-117

400325-217

CM-XX

CM-XX

CMXX-FT

CMXX-FB

CMXX-FF

CM12-FT

CM12-FB

238911-006

238911-106

400425-142

-

400425-342

400625-142

400625-242





400425-144

-

400425-344

400625-144

400625-244





400425-101

400425-201

     -

400525-101

400525-201





400425-105

400425-205

     -

400525-105

400525-205





400425-118

400425-218

      -

400525-118

400525-218

238611-057

238611-157

400425-117

400425-217

     -

400525-117

400525-217





Drawings:



Heavy Duty Pulse Jet Valves , Pulse Solenoid Valve With DIN43650A



Applications




The Pulse solenoid coil is a very important part of the pulse valve . Electromagnetic pulse valve ( also called diaphragm valve ) is a pulse jet bag filter cleaning system air  "switch" Control pulse controller output signal control , bag- by-row ( room ) injection cleaning , so dust resistance remain within the set range , in order to ensure the processing power and dust collection efficiency .Z type pulse valve for the right angle , the angle between the import and export of 90 °, suitable for mounting the air bag and the link between the injection tube , air flow , providing cleaning gas pulses to meet the requirements . Y type is submerged pulse valve ( also known as embedded valve ) , it is mounted directly on the air bag has better flow characteristics .
Pressure loss decreased for the lower air pressure in the workplace .



Coil other parameter:



Insulation temperature class

A

E

B

F

H

Maximum allowable temperature/degree

105

120

130

155

180

Permissible temperature rise(K)

60

75

80

105

125

Performance reference temperature/degree

80

95

100

120

145

Thermal margin

5

5

10

10

15

Maximum ambient temperature/degree

40

40

40

40

40







Heavy Duty Pulse Jet Valves , Pulse Solenoid Valve With DIN43650A

Competitive Advantage:



Our product features

Our Services Guarantee

1) Good quality

1) Prompt respond (Reply with 24 hours)

2) Produce according to Customers’ instruction

2)  Registration support

3) Competitive price

3) Free Samples (Customer pay for the delivery cost)

4) Professional Packaging

4) Photos/videos are available during production

5) None delay shipment

5) Loading inspection , and send loading photos

before shipment





Quality :



The item has passed the strict aging test before exfactory . no second hand and refurbished products, or leave a compensable ten and return the full amount , but the buyer due to our purchase of model error is not responsible for returns, another ofthe company's sales of products enjoy one year from the date of
shipment quality assurance , according to the original quality standards , during warranty with product problems , need confirmation testing by the manufacturer , the supplier to be solved , the demand side due to storage , use, poor maintenance caused by lower quality product , and not raise objections.





Warranty :



The company supplies the free maintenance if any quality problem within 6 months since the date of the ex-factory,except the following conditions: strong corrosive gases , conductive
dust,violent vibration or shock.
