| Liandong-U-Gu 17-2#, Shengyuan Road 1#, Jiangkou Street, Fenghua District, Ningbo City, Zhejiang Province, China | airwolf@flyautomatic.com |
 |
| Place of Origin: | CHINA |
| Brand Name: | Findeva |
| Certification: | CE,IOS9001 |
| Model Number: | NTP-48 |
| Minimum Order Quantity: | 1 piece |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Standard Carton,and other special packing according to customer's requirement |
| Delivery Time: | 1-7 work days |
| Payment Terms: | Western Union,T/T,Paypal,credit card |
| Supply Ability: | 2000set/month |
| Brand: | NTP-48 | Connection: | G3/8 |
|---|---|---|---|
| Max. Temperature: | +120° | Force:: | 19-255 Lbs. |
| High Light: | Germany Pneumatic Linear Vibrator,NTP48 Pneumatic Linear Vibrator,Completely Sealed Unit Pneumatic Linear Vibrator |
||

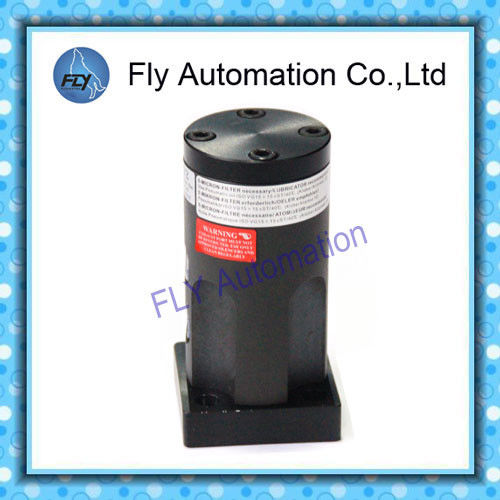

Germany Pneumatic Linear Vibrators NTP48 Completely Sealed Unit
Additional Specifications
Air Pressure Range: 30-60 psi. •
Operating Temperature: 32°-120° F •
Air Preparation: 5-micron filter, pressure regulator •
& lubricator. Muffler & hose nipple included.
Lubricator required. NTP 32 & NTP 48.
Force: 19-255 lbs. •
Warranty: 3-years when operated within recommendations.
High-Acceleration
The impact provided by the NTP
Series Units move material that will not respond
to rotary vibration.
Wash-Down Safe
The sanitary coating system plus the tapped
exhaust make for a completely sealed Unit.
Perfect for high wash-down environments.
Precise Control
NTP Continuous Impacting Linear Vibrators are
instant-on, instant- off. The frequency and amplitude are both
adjustable providing the exact force required to do the job.
Applications:
Knocking off materials adhering to container walls in funnels, containers, silos and hoppers
Drives for vibrating tables and chutes
Assistance for emptying containers
Specifications:
| Frequency | Linear force LBS.(N) | Working moment IN.-LB(CMKG) | Air consumption CFM(L/MIN) | |||||
| 30 PSI (2 BAR) | 60 PSI (4.1 BAR) | 30 PSI (2 BAR) | 60 PSI (4.1 BAR) | 30 PSI (2 BAR) | 60 PSI (4.1 BAR) | 30 PSI (2 BAR) | 60 PSI (4.1 BAR) | |
| NTP 25 | 2,830 | 3,550 | 19.8(269) | 44(438) | 0.17(.14) | 0.24(.16) | 1.2(33) | 3.11(87) |
| NTP 32 | 2,100 | 2,500 | 59.6(289) | 106(607) | 0.95(.6) | 1.15(.67) | 1.2(50) | 3.35(94) |
| NTP 48 | 1,200 | 1,500 | 61.8(782) | 171(1305) | 3(2.1) | 4.94(2) | 2.72(96) | 8(224) |
| Inches (mm) | ||||||||
Packing:
Dimension:
| A | B | C | D | E | F | G | H | K | L | N | |
| NTP 25 | 3.54(90) | 2.36(60) | 1.811(46) | 0.26(7) | 1/8 | 0.57(14.5) | 1/8 | 0.59(15) | 0.31(8) | 2.01(51) | 1/8 |
| NTP 32 | 5.51(140) | 2.95(75) | 2.01(51) | 0.43(11) | 1/4 | 1.26(32) | 1/4 | 0.79(20) | 0.39(10) | 2.76(70) | 1/4 |
| NTP 48 | 7.63(194) | 3.94(100) | 3.07(78) | 0.51(13) | 3/8 | 2.01(51) | 3/8 | 0.98(25) | 0.59(15) | 3.74(95) | 3/8 |
| Inches(mm) | |||||||||||
Competitive Advantage:
| Our product features: | Our Services Guarantee: |
| 1) Competitive price | 1) Prompt respond (Reply with 24 hours) |
| 2) Good quality | 2) Free Samples (Customer pay for the delivery cost) |
| 3) Professional Packaging, | 3) Registration support. |
| 4) Produce according to Customers’ instruction | 4) Photos/videos are available during production. |
| 5) None delay shipment | 5) Loading inspection, and send loading photos before shipment. |
Quality Standards :
The company for the products are brand new original products, no second-hand and refurbished products, or leave a compensable ten and return the full amount , but the buyer due to our purchase of model error is not responsible for returns, another of the company's sales of products enjoy one year from the date of shipment quality assurance , according to the original quality standards , during warranty with product problems , need confirmation testing by the manufacturer , the supplier to be solved , the demand side due to storage , use, poor maintenance caused by lower-quality product , and not raise objections
Warranty:
All item Comes with Basic 3 Month Sellers Warranty, if item defective in 3 Month, We will offer replacement without extra Charger(including shipping fee)After we Receive the Defective item.
If item Defective after 3 Month, Buyers can still send it back, We will contact suppliers or Manufactory for Warranty. Buyers Might Need to pay the Shipping fee For resend the replaced item.
