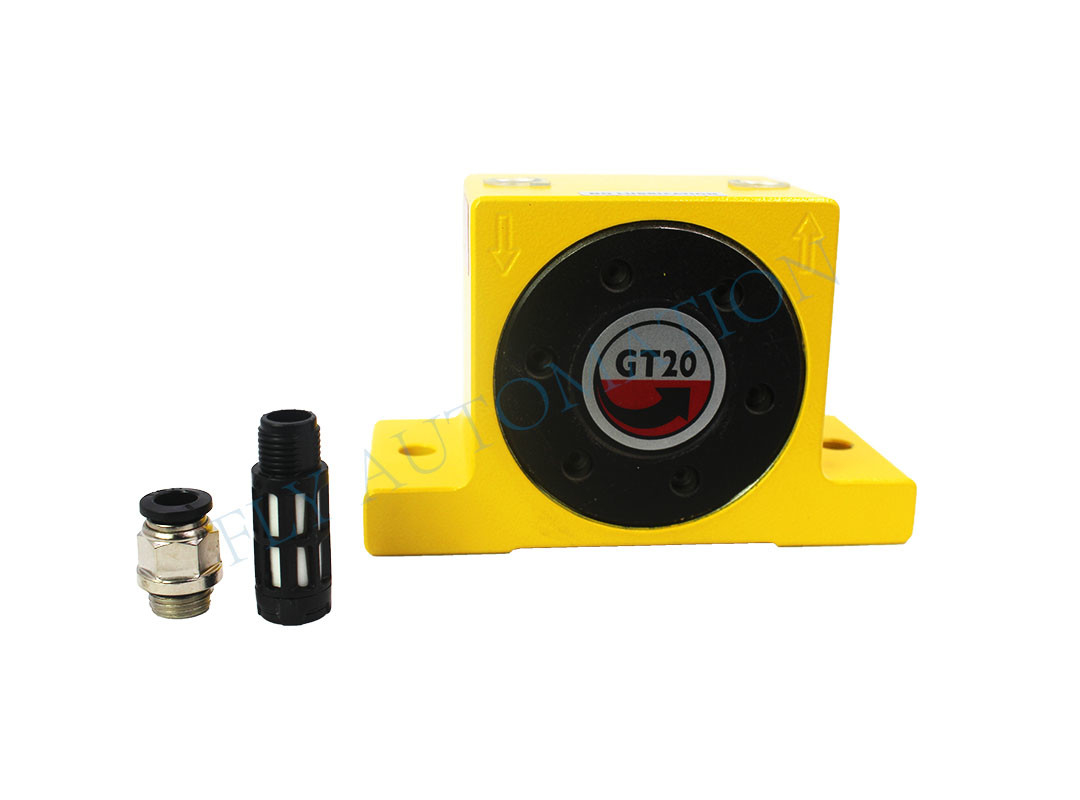

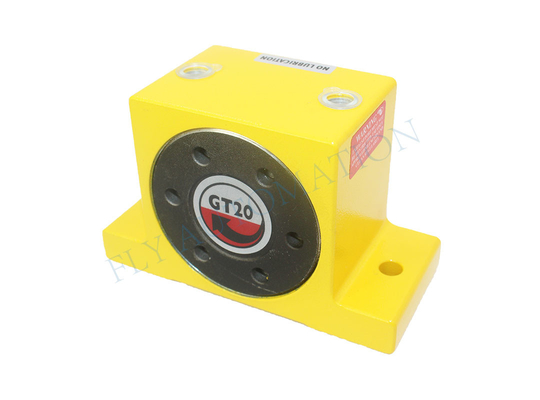

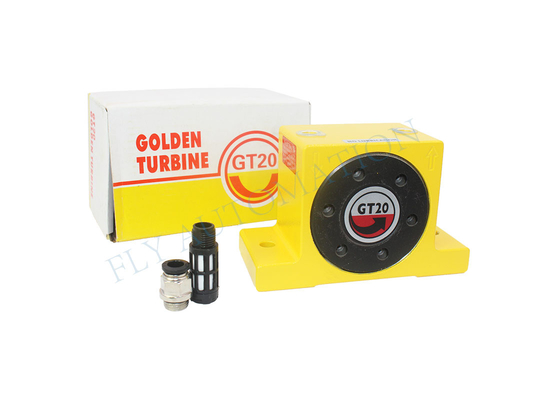

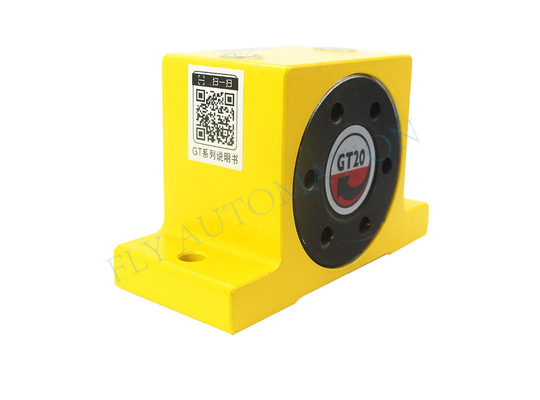

Aluminum Alloy Findeva Turbine Pneumatic Vibrator GT-25 GT16 GT20 1/4"

Aluminum Alloy Findeva Turbine Pneumatic Vibrator GT-25 GT16 GT20 1/4"

  • Aluminum Alloy Findeva Turbine Pneumatic Vibrator GT-25 GT16 GT20 1/4"
  • Aluminum Alloy Findeva Turbine Pneumatic Vibrator GT-25 GT16 GT20 1/4"
  • Aluminum Alloy Findeva Turbine Pneumatic Vibrator GT-25 GT16 GT20 1/4"
  • Aluminum Alloy Findeva Turbine Pneumatic Vibrator GT-25 GT16 GT20 1/4"
Aluminum Alloy Findeva Turbine Pneumatic Vibrator GT-25 GT16 GT20 1/4"
Product Details:
Place of Origin: CHINA
Brand Name: Findeva
Certification: CE,IOS9001
Model Number: GT-25 GT16 GT20
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: Negotiation
Packaging Details: Standard Carton,and other special packing according to customer's requirement
Delivery Time: 1-7 work days
Payment Terms: Western Union,T/T,Paypal,credit card
Supply Ability: 2000set/month
Contact Now
Detailed Product Description
Brand: GT-25 GT16 GT20 Connection: G1/4
Max. Temperature: +120° Weight: 1.5
High Light:

Pneumatic Vibrator 1/4"

,

Pneumatic Vibrator Aluminum Alloy

,

Pneumatic Vibrator Findeva



Findeva Turbine Vibrator Aluminum Alloy GT-25 GT16 GT20 1/4" Pneumatic vibrator



Quick Detail:



* GT series Pneumatic turbine vibrator

* body material Extruded Aluminium Alloy

* body material stainless steel available

* High temperature-resistance up to 120℃

* Immediately start,stop,fast response

* lubrication free

* Port size 1/8”G,NPT

* Working frequence and centrifugal force can be adjustable by air pressure

* Working frequence up to 17000cycles/Minute at 6 Bar

* Strong Centrifugal force up to 5070N at 6Bar

* Low noise 60~75Dba



Properties
• Lubrication-free
• Low noise level
• Strong vibration by means of high speed and eccentric
working torques
• Rated frequency 6’000 – 46’000 rpm
• Centrifugal force 130 – 12’000 N
• Continuously variable
• Can be used up to 150 °C
• Resistant to extreme environmental conditions



Field of application
• Emptying of bunkers
• Screen filters
• Vibrating tables
• Preventing adhesions in pipelines and silos
• Transporting of fine powders
• Moving of bulk materials



Available Options & Accessories
Bin/Hopper/Chute Mounting Kits
Pipe Mounting Kits
Air Prep Components
Air Hoses
Pneumatic and Electronic Timers
Stainless Housings (available for some sizes)



Specifications:



Aluminum Alloy Findeva Turbine Pneumatic Vibrator GT-25 GT16 GT20 1/4"



1, Extruded Aluminium Alloy Body
2, Hard Coated Aluminium Turbine Wheel
3-4, High Density Mass Positive Movement
5-7, Cavities Giving Negative Movement
8,Air Inlet Port
9,Air Exhausting port
10,Base Mounting Holes
11,Special Pre-Lubricated Matching Sealed Bearings
Hard Coated Aluminium Endplates
12,With Left direction Thread
13,With Right direction Thread



Model Frequency V.P.M Centrifugal force Air consumption L/ Minute
2 Bar 4 Bar 6 Bar 2 Bar 4 Bar 6 Bar 2 Bar 4 Bar 6 Bar
29 PSI 58 PSI 87 PSI N N N Ltr. Ltr. Ltr.
GT-8 36000 42000 46000 990 2060 2910 48 75 152
GT-10 27500 35000 37500 840 1390 2400
GT13 26000 30000 33000 1400 2440 3730 125 210 280
GT-16 17000 21500 24000 1220 2090 3160
GT20 17000 20000 23000 2170 4040 5520 188 315 465
GT-25 12000 15500 17000 2120 3510 5070
GT32 13000 14000 16000 3380 5430 7540 335 520 755
GT-36 7800 10000 13000 3290 5360 7190
GT40 7500 8800 9500 4300 7300 9800 428 680 960
GT-48 5800 7500 9700 4900 7700 10500
GT-60 4758 6530 8515 5700 9800 11150









Dimension:

Aluminum Alloy Findeva Turbine Pneumatic Vibrator GT-25 GT16 GT20 1/4"
