| Brand Name: | FESTO |

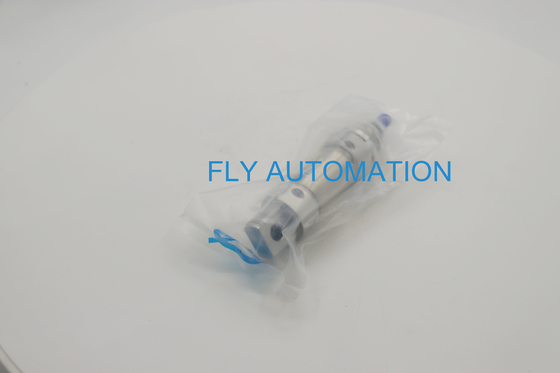

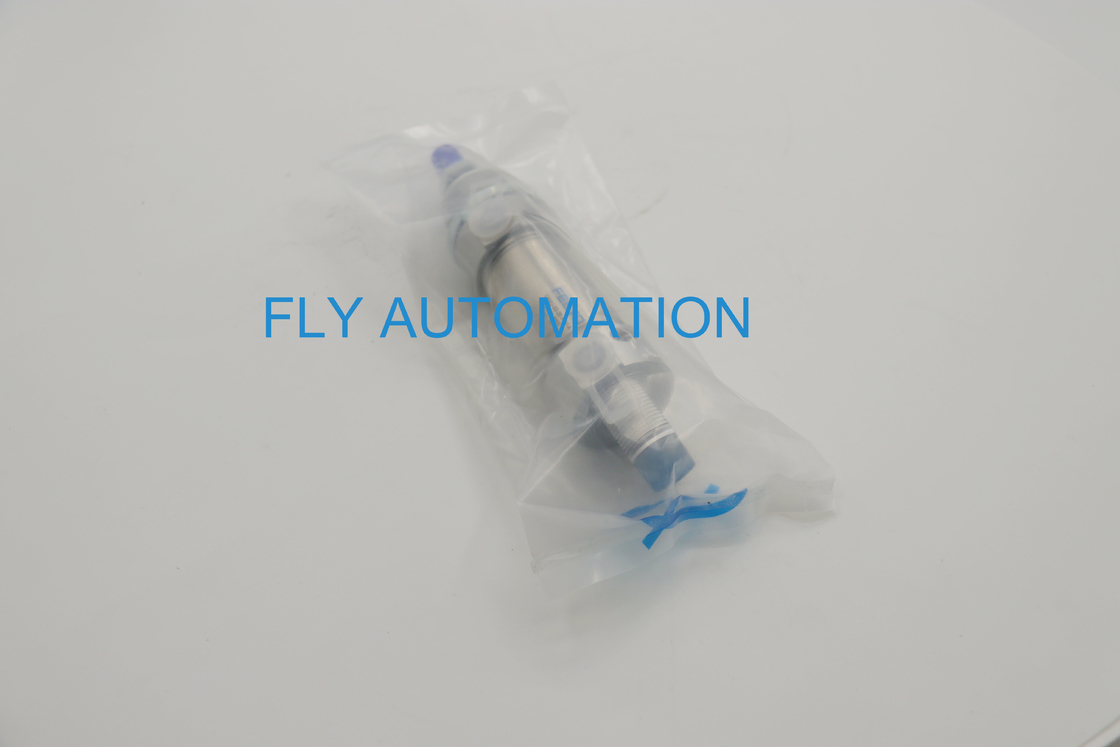

| Model Number: | DSNU-32-40-PPV-A |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | EXW USD30-40 |
| Packaging Details: | plastic bag, carton，OPP bag |
| Delivery Time: | 10-15 working days |
| Payment Terms: | T/T, Western Union, Paypal |
| Supply Ability: | 1000pcs per month |
| Brand: | FESTO | Type: | DSNU-32-40-PPV-A |
|---|---|---|---|
| Part No: | 196021 | Ambient Temperature: | -20°C-80°C |
| Cushioning Length: | 14mm | Product Weight: | 433 G |
| High Light: | Pneumatic Round Cylinder,Pneumatic Air Cylinders 196021,DSNU-32-40-PPV-A |
||
About product
Mode of operation:Double-acting
Piston rod with male and female thread
Good running performance and long service life
Ambient temperature: -20°C-80°C
Product weight:433 g
Technical Data
| Stroke | 40 mm |
| Piston diameter | 32 mm |
| Piston rod thread | M10x1.25 |
| Cushioning | Pneumatic cushioning, adjustable at both ends |
| Mounting position | optional |
| Design | Piston Piston rod Cylinder barrel |
| Position detection | Via proximity switch |
| Symbol | 00991235 |
| Mode of operation | Double-acting |
| Corrosion resistance class CRC | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Cleanroom class | Class 6 according to ISO 14644-1 |
| Ambient temperature | -20°C-80°C |
| Cushioning length | 14 mm |
| Product weight | 433 g |
| Type of mounting | With accessories |
| Pneumatic connection | G1/8 |
| Note on materials | RoHS-compliant |
| Material cover | Wrought aluminium alloy |
| Material seals | NBR TPE-U(PU) |
| Material piston rod | High-alloy steel |
| Material cylinder barrel | High-alloy stainless steel |
Festo Core Range Solves the majority of your automation tasks
There are so many models. Please contact with me!
