Liandong-U-Gu 17-2#, Shengyuan Road 1#, Jiangkou Street, Fenghua District, Ningbo City, Zhejiang Province, China | airwolf@flyautomatic.com |
Place of Origin: | China |
Brand Name: | Techno |
Certification: | ISO9001,CE |
Model Number: | XQ230410 |
Minimum Order Quantity: | 1 |
---|---|
Price: | Negotiable |
Packaging Details: | carton |
Delivery Time: | 5 working days |
Payment Terms: | T/T, Western Union |
Supply Ability: | 2000 pcs/month |
Model: | XQ230410 | Temperature Characteristics: | -10~60 C |
---|---|---|---|
Material: | Stainless Steel | Port Size: | G1/8 |
Operating Pressure: | 0~1.0MPa | ||
High Light: | foot pedal valve,pneumatic mechanical valve |

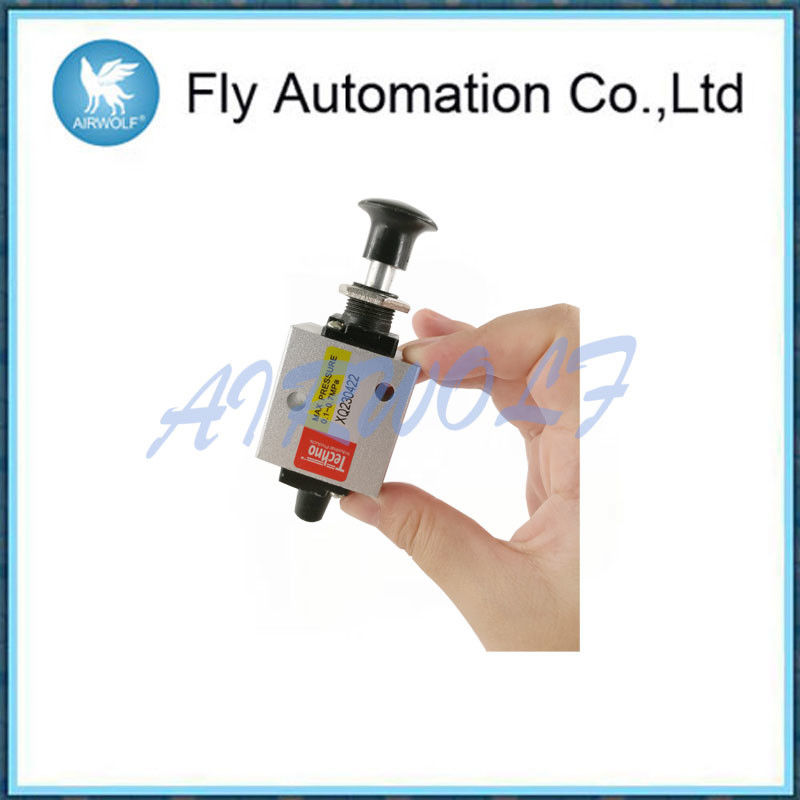

Techno XQ Series XQ230422 3/2 Way 1/4" Stainless Steel manual direction control valves
2 Position 3,5 - Port Manual Valves
XQ Series
The valves are manual direction control valves.They can be used to directly control cylinders or used as
the signal valves of some pneumatic components.There are many control types of the valves: push button, toggle lever, push-pull, foot pedal, hand control and hand rotary. Especially the emergency stop
valve is used as the emergency stopper of pneumatic equipment due to its short switching stroke.
2-Pos. 3-Port, 2-Pos. 5-Port, 3-Pos. 4-Port, . The P and R ports can be exchanged so as to make the valve normally closed or open.
Specification
XQ230420 | 3/2 | G1/8 | 4 | 26N | 0 - 1.0MPa | -10 - 60 ℃ | 5 - 60 ℃ | 10 million times |
XQ230620 | G1/4 | 6 | 35N | |||||
XQ250420 | 5/2 | G1/8 | 4 | 30N | ||||
XQ250620 | G1/4 | 6 | 40N | |||||
XQ230420.1 | 3/2 | G1/8 | 4 | 26N | ||||
XQ230620.1 | G1/4 | 6 | 35N | |||||
XQ250420.1 | 5/2 | G1/8 | 4 | 30N | ||||
XQ250620.1 | G1/4 | 6 | 40N | |||||
XQ230421 | 3/2 | G1/8 | 4 | 15N.cm | ||||
XQ230621 | G1/4 | 6 | 28N.cm | |||||
XQ250421 | 5/2 | G1/8 | 4 | 17N.cm | ||||
XQ250621 | G1/4 | 6 | 32N.cm | |||||
XQ230422 | 3/2 | G1/8 | 4 | 13N | ||||
XQ230622 | G1/4 | 6 | 17N | |||||
XQ250422 | 5/2 | G1/8 | 4 | 15N | ||||
XQ250622 | G1/4 | 6 | 20N | |||||
XQ230423 | 3/2 | G1/8 | 4 | 20N | ||||
XQ230623 | G1/4 | 6 | 22N | |||||
XQ250423 | 5/2 | G1/8 | 4 | 25N | ||||
XQ250623 | G1/4 | 6 | 28N | |||||
XQ230460.1 | 3/2 Hand reset |
G1/8 | 4 | 5N | ||||
XQ230660.1 | G1/4 | 6 | 8N | |||||
XQ250460.1 | 5/2 | G1/8 | 4 | 5N | ||||
XQ250660.1 | G1/4 | 6 | 8N | |||||
XQ350660.0 | 5/3 Hand reset | G1/4 | 6 | 8N | ||||
XQ240661 | 4/2 | G1/4 | 8 | 1.0N m | ||||
XQ241061 | G3/8 | 10 | 1.5N m | |||||
XQ241561 | G1/2 | 15 | 3.0N m | |||||
XQ340661.0 | 4/3 Closed center |
G1/4 | 8 | 1.0N m | ||||
XQ341061.0 | G3/8 | 10 | 1.5N m | |||||
XQ341561.0 | G1/2 | 15 | 3.0N m |
Pictures details
Quality Standards
The company for the products are brand new original products, no second-hand and refurbished products, or leave a compensable ten and return the full amount, but the buyer due to our purchase of model error is not responsible for returns, another of the company's sales of products enjoy one year from the date of shipment quality assurance, according to the original quality standards, during warranty with product problems, need confirmation testing by the manufacturer, the supplier to be solved, the demand side due to storage, use, poor maintenance caused by lower-quality product, and not raise objections.
Samples
You can send a sample to customize the products, we have many engineers can help it; If you want a product of mine, but you are not sure if it's what you want, so you can ask for a sample from me, it will be free.
Warranty
All item Comes with Basic 3 Month Sellers Warranty, if item defective in 3 Month, We will offer replacement without extra Charger(including shipping fee)After we Receive the Defective item.
If item Defective after 3 Month, Buyers can still send it back, We will contact suppliers or Manufactory for Warranty. Buyers Might Need to pay the Shipping fee For resend the replaced item.
